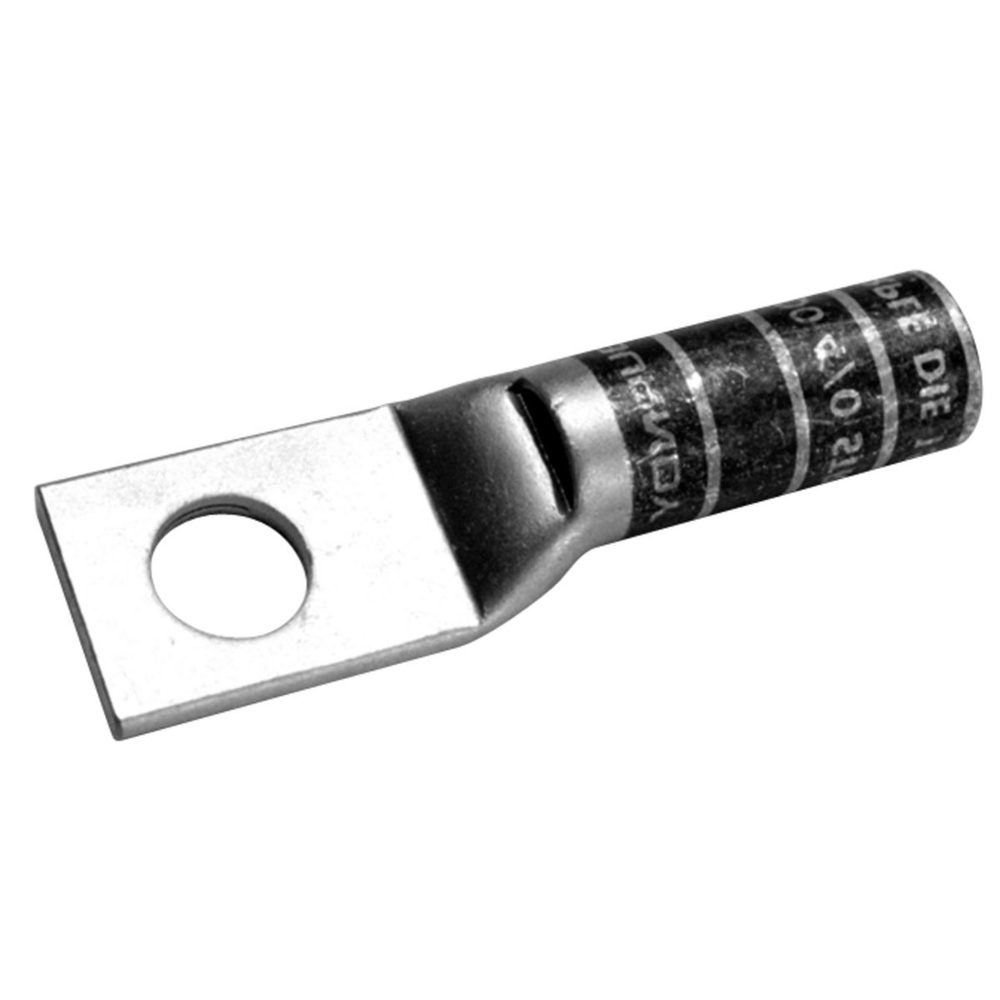

Burndy YAZ2CTC516
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
2 AWG CU, One Hole, 5/16 Stud Size, Long Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Brown Color Code, 10 Die Index.2 AWG, CU, 1 Hole, 5/16 Stud, Long Barrel, Inspection Window
Burndy YAZ2CTC516 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Wire Termination
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 2.492x2.996x3.236 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 1.150 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810243435
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810243436
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Brown
- Conductor - Copper Str Navy Size
- 60 (37) Navy
- Conductor - Copper Str Size
- 2 AWG
- Conductor - Material
- COPPER
- Conductor Size
- 2 AWG
- Conductor Type
- CODE
- Connector Type
- LONG BARREL
- Country of Origin
- US
- Description - Invoice
- CULUG- 2 STR-LONG W/PORT-5/16"STUD
- Description - Slang
- TERM CODE LG BBL SKV TEL
- Die Index
- 10
- Dimension - B Length inch
- 1.25 in
- Dimension - Bolt Hole Size inch
- 0.33 in
- Dimension - Bolt Size fraction
- 5/16
- Dimension - Bolt Size inch
- 0.3125
- Dimension - Hole Size fraction
- 5/16
- Dimension - Hole Size inch
- 0.38
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 2.27 in
- Dimension - L Length Overall mm
- 58 mm
- Dimension - N inch
- 0.34 in
- Dimension - Outside Diameter inch
- 0.42 in
- Dimension - Pad Width inch
- 0.60 in
- Dimension - Strip Length inch
- 1-5/16
- Dimension - Stud Size fraction
- 5/16
- Dimension - Z inch
- 0.36 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.60 in
- Feature - Barrel Style
- Skived
- Feature - Barrel Type
- Long
- Finish
- Tin-Plated
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- COPPER
- MSDS Flag
- No
- Order Multiple
- 25 EA
- Package - Gross Weight per Pack
- 1.15 lb.
- Package - GTIN - Package
- 30781810243436
- Package Height
- 2.43 in
- Package Length
- 3.25 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810243435
- Package - Total Units
- 25 EA
- Package Weight
- 1.15 lb.
- Package Width
- 3.00 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- Straight
- Plated
- YES
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Special Features
- Features: With Inspection Window, Tongue Angle: Straight, Wire Strip Length: 1-5/16 IN, Color Code: Brown, Die Index: 10, Conductor Type: Copper, Finish: Electro-Tin Plated, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (2), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (2), Temperature Rating: 90 DEG C, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4)
- Standard
- UL 486A-486B
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYLUG
- Sub Class Code
- B55BH8F
- Trade Name
- HYLUG™
- Type
- Long Barrel, Skive, Tin Plated
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
- Width
- 0.60 in
