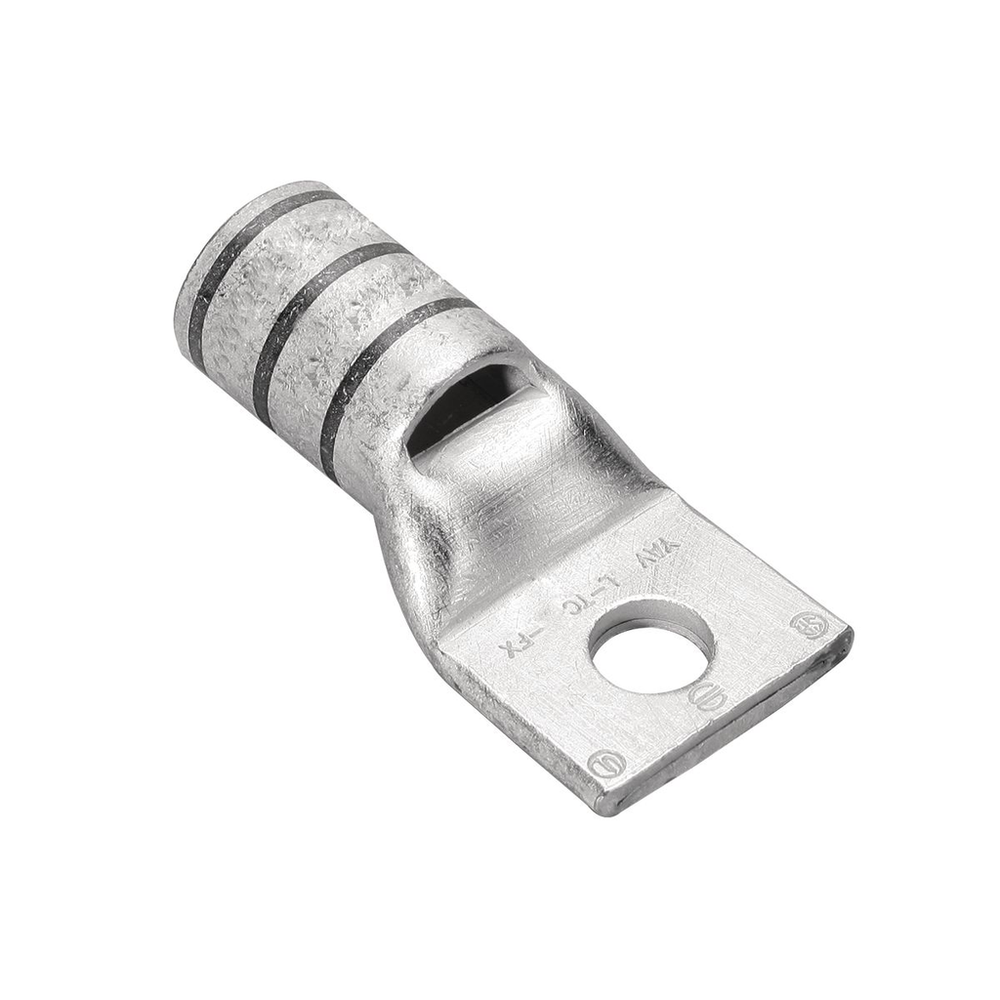

Burndy YAV8CL4

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 4.625x4.313x4.313 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 2.600 lb.
• Carton - Number of Sub Packs
  • 200
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810025130
• Carton - Total Units
  • 200
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810025131
• Class Code
  • B57
• Conductor - Copper Str Aircraft Size
  • AN 8
• Conductor - Copper Str Size
  • 8
• Conductor - Copper Str Size Range
  • 8 AWG
• Conductor Size
  • 8 AWG
• Conductor Type
  • CU C Solid-Size;CU C Str-Size
• Connector Type
  • Ring Terminal
• Country of Origin
  • US
• Description - Invoice
  • 8AWG HVYDTY RING 1/2 ST
• Die Index
  • 38
• Dimension - B Length fraction
  • 2/5 in
• Dimension - B Length inch
  • 0.41 in
• Dimension - Bolt Size fraction
  • 1/2
• Dimension - Length Overall inch
  • 1.52 in
• Dimension - N inch
  • 0.38 in
• Dimension - Pad Width inch
  • 0.73 in
• Dimension - Stud Size inch
  • 1/2
• Dimension - Z inch
  • 0.48 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.73 in
• Feature - Barrel Style
  • Chamfered
• Feature - Barrel Type
  • Standard
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908020
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL467;Military Specified (Mil-Spec)
• Lead Time
  • 12 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• Material Composition
  • DLP Copper;Tin Plating
• MSDS Flag
  • No
• Order Multiple
  • 200 EA
• Package - Gross Weight per Pack
  • 2.6 lb.
• Package - GTIN - Package
  • 30781810025131
• Package Height
  • 4 in
• Package Length
  • 4 in
• Package - Number of Sub Packs
  • 200
• Package - Pack Description
  • Package
• Package Quantity
  • 200 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810025130
• Package - Total Units
  • 200 EA
• Package Weight
  • 2.6 lb.
• Package Width
  • 4 in
• Pallet - GTIN - Package
  • 70781810025139
• Pallet Height
  • 47.375 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 2361.600 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Type
  • Ring
• Plated
  • Y
• Plating Type
  • Tin
• Product Type
  • TERMINAL
• Special Features
  • Features: HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability, Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance, The YAV HYLUG Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086, The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors, Installation Tool: HYTOOL: Non-Ratchet: MY29-11 Tool, Ratchet: Y8MRB-1, MR4C, MR8-9Q, M8ND Tool With N8CT Die Set, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29NC, Y29B Tool, DV8L-1 Die Nest, Y29PL Die Indentor, (1) Crimp, Y35, Y39 Tool, UV8L Die Nest, Y35P3 Die Indentor, (1) Crimp, Y750 Tool, UV8L Die Nest, Y34PL Die Indentor, (1) Crimp, Package: Bulk, Finish: Electro-Tin Plated, Wire Shroud: No, Ms20659 Dash Number: -142, Die Index: 38, Conductor Type: Commercial/Military Stranded Copper, Wire Strip Length: 1/2 IN, Tongue Angle: Straight
• Standard
  • UL467;Military Specified (Mil-Spec)
• Standard Package Quantity
  • 200
• Standards - Industry Standards Met
  • UL486
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • N - Non-stock
• Sub Brand
  • HYLUG
• Sub Class Code
  • B57BK7F
• Trade Name
  • HYLUG™
• Type
  • Ring Tongue
• UL Listed
  • Yes
• Width
  • 0.73 in
