Description

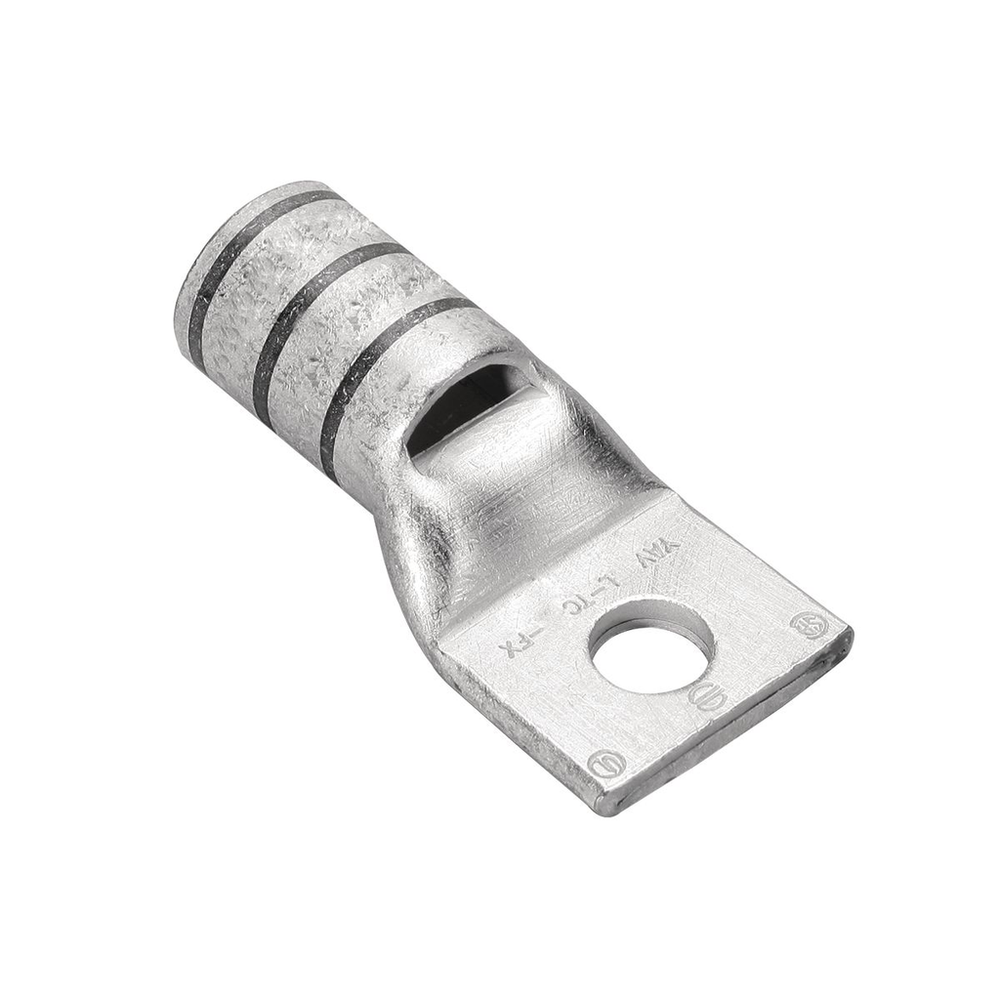

Uninsulated Ring Terminal For 4 AWG.Uninsulated Ring Terminal For 4 AWG
Burndy YAV4CL5BOX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- BOX SIZE
- 2.492x2.996x3.236 (in)
- Carton - Gross Weight per Pack
- 0.460 lb.
- Carton - Number of Sub Packs
- 20
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810539453
- Carton - Total Units
- 20
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810539454
- Class Code
- B57
- Conductor - Copper Solid Size
- 4
- Conductor - Copper Str Aircraft Size
- AN 4
- Conductor - Copper Str Size
- 4
- Conductor - Copper Str Size Range
- 4 AWG
- Conductor Size
- 4 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Die Index
- 40
- Dimension - B Length fraction
- 1/2 in
- Dimension - B Length inch
- 0.47 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - Hole Size mm
- 13 mm
- Dimension - Inside Diameter inch
- 0.28 in
- Dimension - Length Overall inch
- 1.68 in
- Dimension - N inch
- 0.38 in
- Dimension - Outside Diameter inch
- 0.38 in
- Dimension - Pad Width inch
- 0.73 in
- Dimension - Strip Length inch
- 1/2 in
- Dimension - Stud Size inch
- 1/2
- Dimension - Z inch
- 0.47 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Lead Time
- 12 wk
- Material
- Copper
- Material Composition
- DLP Copper;Tin Plating
- Package - GTIN - Package
- 30781810539454
- Package Quantity
- 20 EA
- Package - Total Units
- 20 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- Straight
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Standard Package Quantity
- 20
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B57BK7F
- Trade Name
- HYLUG™
- Type
- Ring Tongue
- UL Listed
- Yes
