Burndy YAV4CL3NK
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

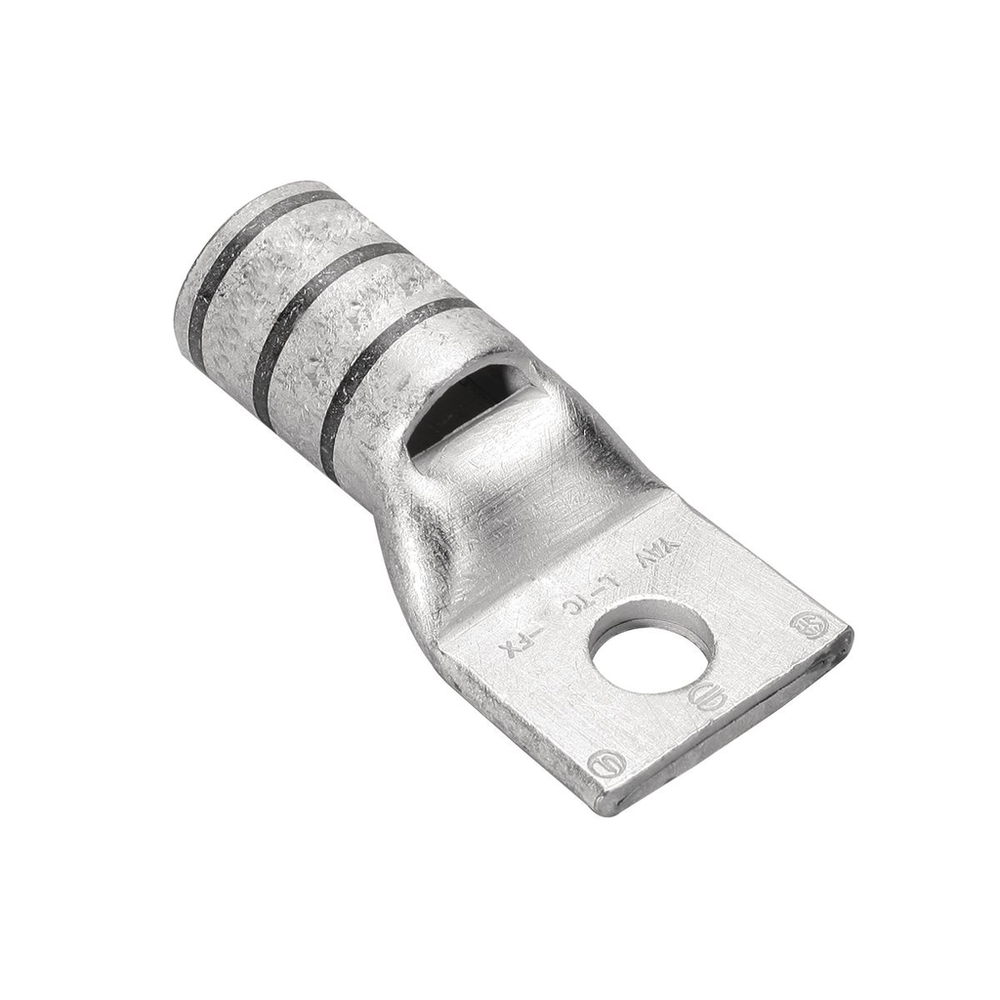

Uninsulated Ring Terminal For 4 AWG (Nickel Plated).Uninsulated Ring Terminal For 4 AWG (Nickel Plated)
Burndy YAV4CL3NK is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Contact Manufacturer
- UL Recognized
- No
Specifications
- Application
- For use on: Type AN aircraft cable, extra flexible conductors and commercial(code) conductors, Applications include aircraft, industrials, hospitals, electric utilities, marine, computers, and other equipment subject to vibration or requiring dependable electrical performance
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- BOX SIZE
- 4.625x4.313x4.313 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 4.000 lb.
- Carton - Number of Sub Packs
- 200
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810088227
- Carton - Total Units
- 200
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810088228
- Certification Agency
- Proposition 65
- Class Code
- B57
- Conductor - Copper Solid Size
- 4
- Conductor - Copper Str Aircraft Size
- AN 4
- Conductor - Copper Str Size
- 4
- Conductor - Copper Str Size Range
- 4 AWG
- Conductor Size
- 4 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Description - Invoice
- 4AN CU LUG 8-10 STUD NK
- Die Index
- 40
- Dimension - B Length fraction
- 1/2 in
- Dimension - B Length inch
- 0.50 in
- Dimension - Bolt Hole Size inch
- 0.2 in
- Dimension - Bolt Size fraction
- #10
- Dimension - Hole Size mm
- 5 mm
- Dimension - Length Overall inch
- 1.37 in
- Dimension - N inch
- 0.25 in
- Dimension - Outside Diameter inch
- 0.38 in
- Dimension - Pad Width inch
- 0.55 in
- Dimension - Strip Length inch
- 1/2
- Dimension - Z inch
- 0.28 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.55 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 200 EA
- Package - Gross Weight per Pack
- 4 lb.
- Package - GTIN - Package
- 30781810088228
- Package Height
- 4.00 in
- Package Length
- 4.00 in
- Package - Number of Sub Packs
- 200
- Package - Pack Description
- Package
- Package Quantity
- 200 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810088227
- Package - Total Units
- 200 EA
- Package Weight
- 4 lb.
- Package Width
- 4.00 in
- Pallet - GTIN - Package
- 70781810088226
- Pallet Height
- 47.375 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1629.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- Straight
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Nickel
- Product Type
- TERMINAL
- Special Features
- Features: Large Size Seamless Uninsulated Compression Terminal, Die Index: 40,Finish: Nickel Plating
- Standard Package Quantity
- 200
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- TERMINALS, HYLUG
- Sub Class Code
- B57BK7F
- Trade Name
- HYLUG™
- Type
- Ring Tongue
- UL Listed
- No
- Width
- 0.55 in
