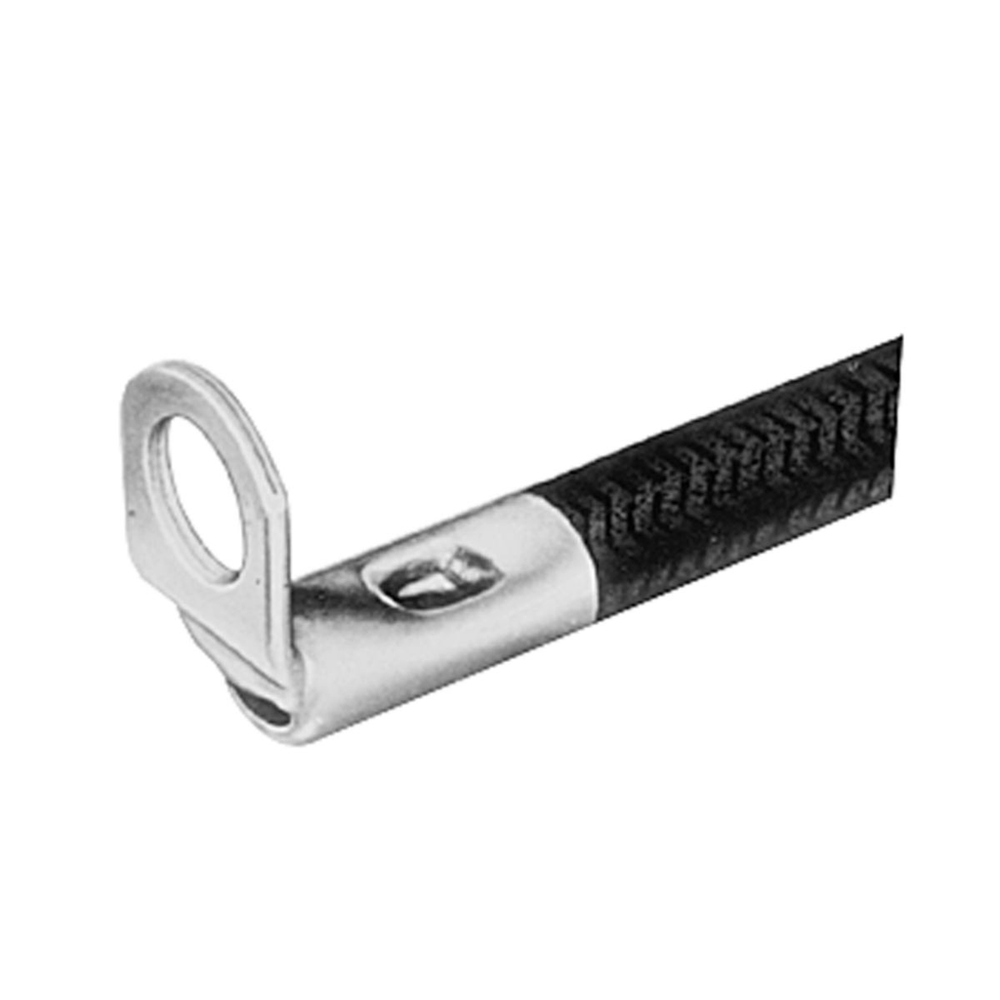

Burndy YAV2CRS1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Uninsulated Right Angle Ring Terminal For 2 AWG.Uninsulated Right Angle Ring Terminal For 2 AWG
Burndy YAV2CRS1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 7.600 lb.
- Carton - Number of Sub Packs
- 200
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810025826
- Carton - Total Units
- 200
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810025827
- Class Code
- B57
- Conductor - Copper Str Aircraft Size
- AN 2
- Conductor - Copper Str Size
- 2
- Conductor - Copper Str Size Range
- 2 AWG
- Conductor Size
- 2 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Description - Invoice
- HVYDTY RGT-ANGLE TERMNAL,Index No:41
- Die Index
- 41
- Dimension - B Length fraction
- 5/8 in
- Dimension - B Length inch
- 0.62 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Bolt Size fraction
- 1/4
- Dimension - G inch
- 1 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 1.27 in
- Dimension - L Length Overall mm
- 32 mm
- Dimension - N inch
- 0.33 in
- Dimension - Outside Diameter inch
- 0.47 in
- Dimension - Pad Width inch
- 0.68 in
- Dimension - Strip Length inch
- 5/8
- Dimension - Stud Size inch
- 1/4
- Dimension - Z inch
- 0.34 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.68 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 200 EA
- Package - Gross Weight per Pack
- 7.6 lb.
- Package - GTIN - Package
- 30781810025827
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 200
- Package - Pack Description
- Package
- Package Quantity
- 200 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810025826
- Package - Total Units
- 200 EA
- Package Weight
- 7.6 lb.
- Package Width
- 4.56 in
- Pallet - GTIN - Package
- 70781810025825
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1808.200 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- 90 Degree
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Special Features
- Features: Factory Formed Right Angle HYLUG Connectors Made Of Seamless Pure Copper Tubing, These Rugged Terminals Withstand The Most Severe Applications, Inspection Hole In Barrel Permits Visual Check Of Wire Insertion, Tin Plated To Resist Corrosion, Meets Requirements Of SAE-AS7928, Package: Bulk, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29NC, Y29BH Tool, DV2L Die Nest, Y29PL Die Indentor, Installation Tool: HYTOOL: MY28, MY29-11 Tool, Wire Shroud: No, Wire Strip Length: 5/8 IN, Conductor Type: Commercial/Military Stranded Copper, Tongue Angle: 90 DEG, Finish: Electro-Tin Plated
- Standard Package Quantity
- 200
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYLUG
- Sub Class Code
- B57BK7F
- Trade Name
- HYLUG™
- Type
- Ring Tongue
- UL Listed
- Yes
- Width
- 0.68 in
