Burndy YAV28L56
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

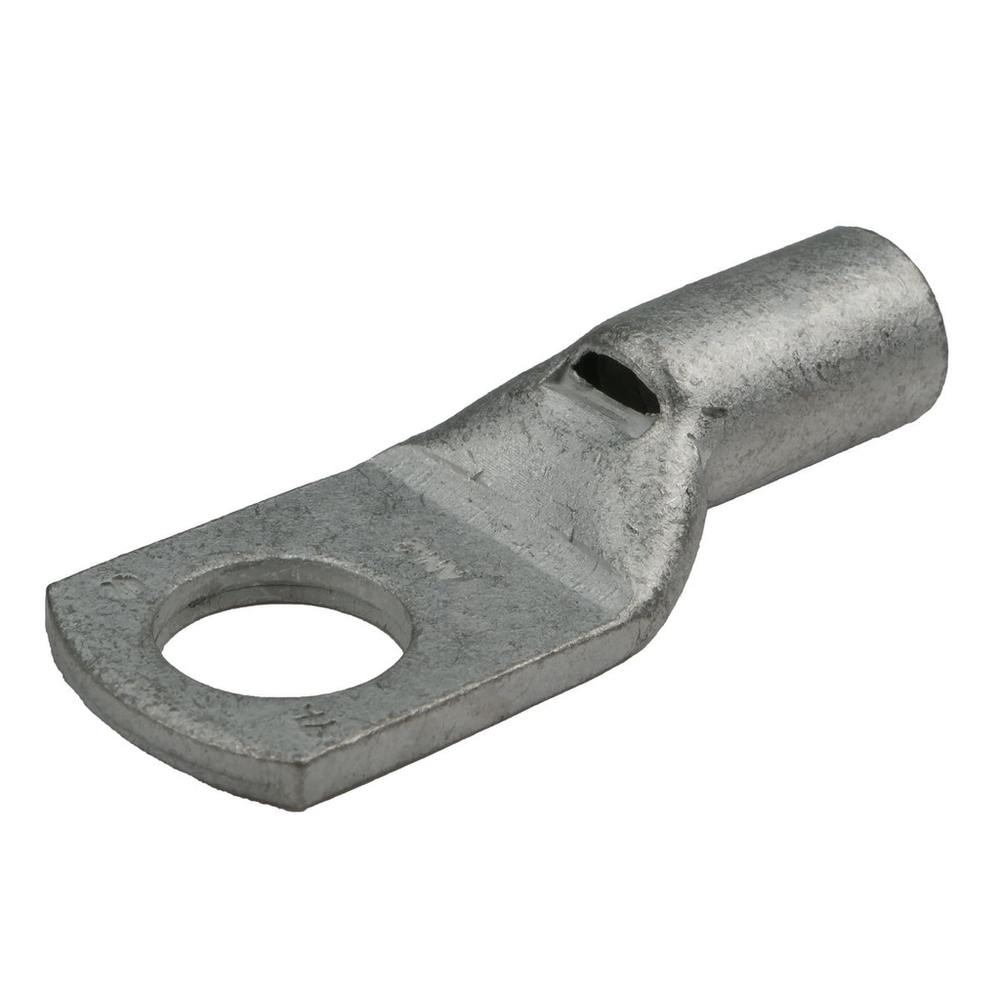

Copper Compression Lug, 1 Hole W/ Inspection Window, AN 4/0 Flex, 5/16" Stud, Short Barrel, Tin PlatedUninsulated Ring Terminal For 4/0 AWG
Burndy YAV28L56 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Copper AirCraft Cable
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 13.000 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810093801
- Carton - Total Units
- 100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810093802
- Class Code
- B57
- Conductor - Copper Str Aircraft Size
- AN-4/0
- Conductor Size
- 4/0 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Ring Terminal
- Construction Material - Main
- Copper tubing
- Country of Origin
- US
- Description - Invoice
- CU HYLUG-AN4/0-5/16-RING
- Die Index
- 46
- Dimension - B Length fraction
- 7/8 in
- Dimension - B Length inch
- 0.85 in
- Dimension - Bolt Hole Size inch
- 0.33 in
- Dimension - Bolt Size fraction
- 5/16
- Dimension - Hole Size mm
- 8 mm
- Dimension - Length Overall inch
- 2.72 in
- Dimension - N inch
- 0.56 in
- Dimension - Pad Width inch
- 1.12 in
- Dimension - Stud Size inch
- 5/16 in
- Dimension - Z inch
- 0.60 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.14 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467;Military Specified (Mil-Spec)
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper tubing
- Material Composition
- DLP Copper;Tin Plating
- MSDS Flag
- No
- Order Multiple
- 100 EA
- Package - Gross Weight per Pack
- 13 lb.
- Package - GTIN - Package
- 30781810093802
- Package Quantity
- 100 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810093800
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1969.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- Straight
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Features: Compression Ring Terminal, With Inspection window, Finish: Tin Plated, Tool Index: 46
- Standard
- UL467;Military Specified (Mil-Spec)
- Standard Package Quantity
- 100
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- Terminals, HYLUG
- Sub Class Code
- B57BK7F
- Trade Name
- HYLUG™
- Type
- YAV-L, Ring Tongue
- UL Listed
- Yes
- Width
- 1.14 in
