Burndy YAV272L38NK
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

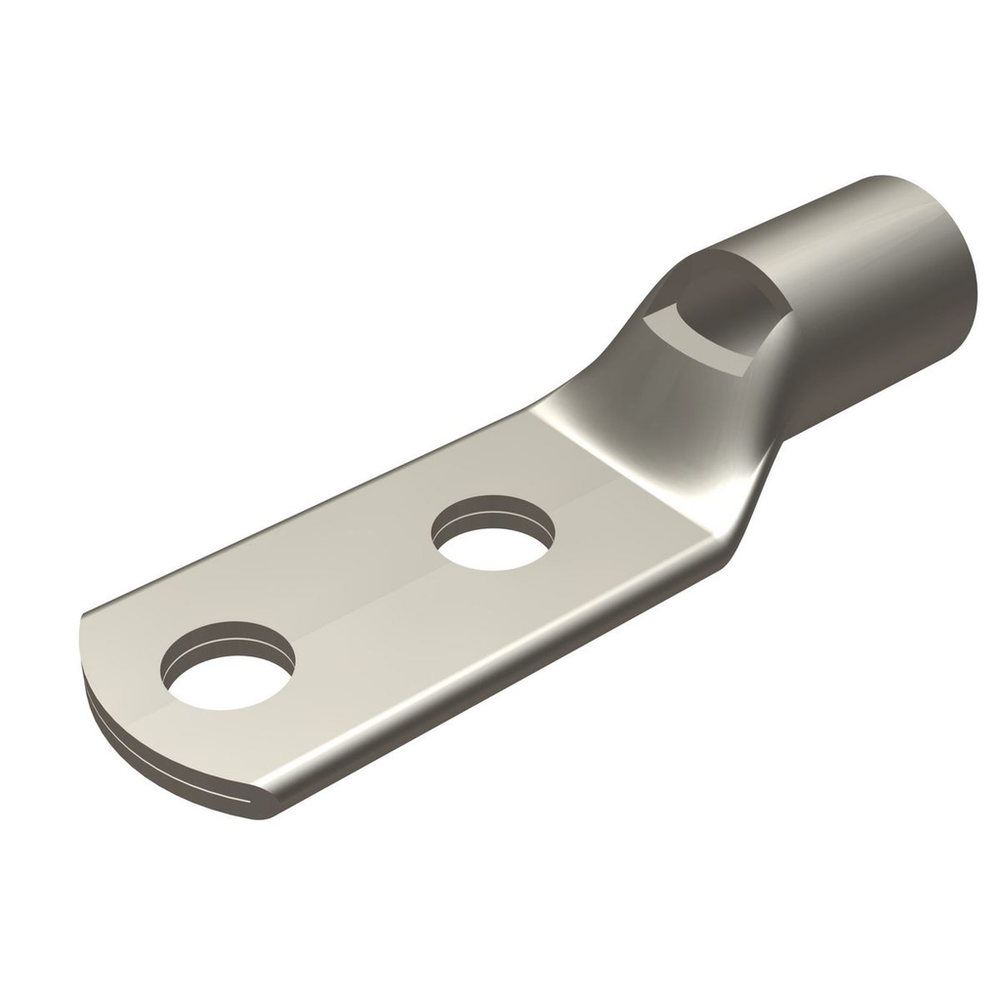

Cu Comp Terminal, 2 Hole, AN 3/0, 3/8" Stud, Nickel Plated, 45 Index.Standard Length Barrel YAV272L38NK
Burndy YAV272L38NK is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
- UL Listed
- No
Conductor Related
- Conductor - Copper Str Aircraft Size
- AN 3/0
- Conductor - Material
- Copper
- Conductor Type
- CU C Str Aircraft-Size
Dimensions
- Dimension - B Length inch
- 0.78 in
- Dimension - Length Overall inch
- 3.25 in
- Dimension - N inch
- 0.38 in
- Dimension - Outside Diameter inch
- 0.70 in
- Dimension - Pad Width inch
- 1.03 in
- Dimension - Strip Length inch
- 13/16
- Dimension - Z inch
- 0.44 in
- Physical Attribute - Tongue Angle
- Straight
Electrical Ratings
- Rating - KVA
- 35 kV
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 35000
General
- Application
- For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance
- Connector Type
- Terminal
- Die Index
- 45
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Material
- Copper
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Plating Type
- Nickel
- Sub Brand
- TERMINALS, HYLUG
- Trade Name
- HYLUG™
- Type
- Standard Barrel, Nickel Plated
- UPC
- 781810069776
- UPC 12 Digit
- 7818100697766
Logistics
- Minimum Pack Quantity
- 1
