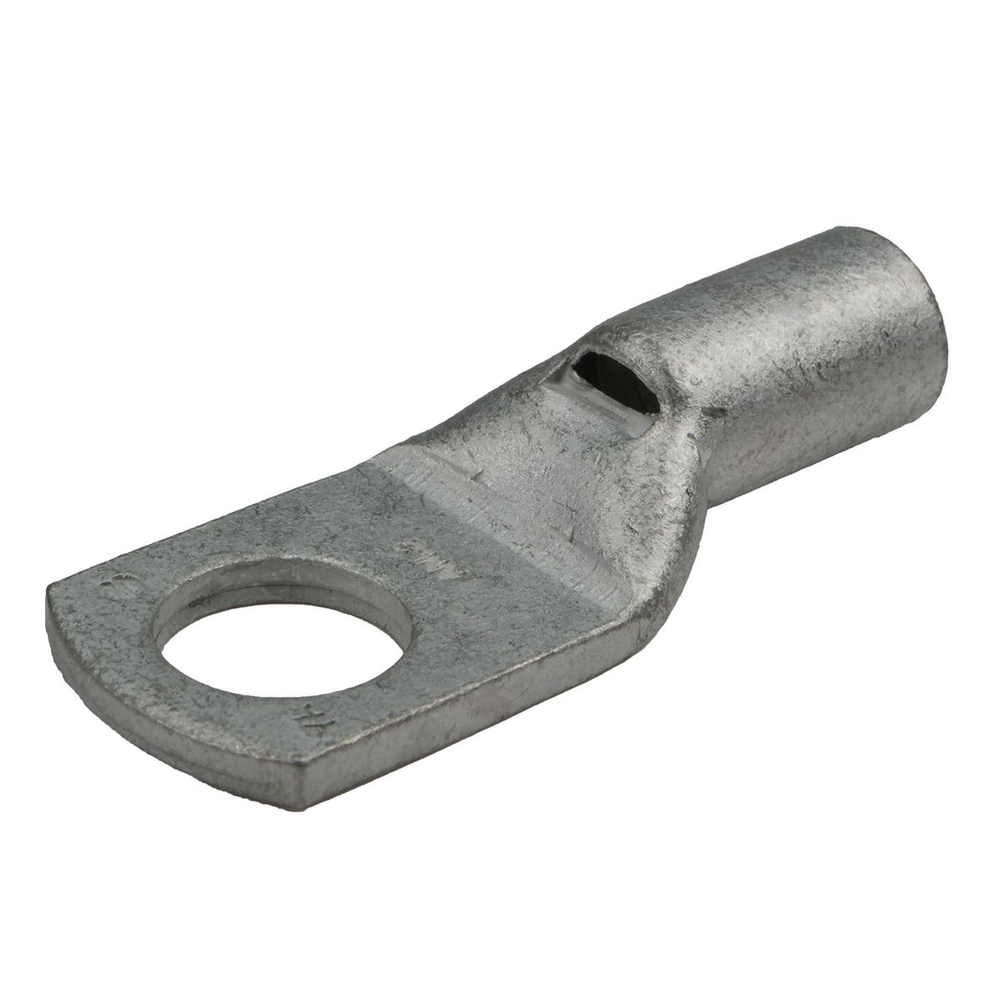

Burndy YAV26LBOX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Uninsulated Ring Terminal For 2/0 AWG.Uninsulated Ring Terminal For 2/0 AWG
Burndy YAV26LBOX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 2.492x2.996x3.236 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 0.800 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810540305
- Carton - Total Units
- 10
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810540306
- Class Code
- B57
- Color Code
- Black
- Conductor - Copper Str Aircraft Size
- AN-2/0
- Conductor - Copper Str Size
- 2/0 AWG
- Conductor Size
- 2/0 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Description - Invoice
- 2/0 HVYDTY RING 3/8 STUD
- Die Index
- 44
- Dimension - B Length fraction
- 3/4 in
- Dimension - B Length inch
- 0.78 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 2.32 in
- Dimension - N inch
- 0.47 in
- Dimension - Pad Width inch
- 0.93 in
- Dimension - Strip Length inch
- 13/16 in
- Dimension - Stud Size inch
- 3/8
- Dimension - Z inch
- 0.48 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.93 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467;Military Specified (Mil-Spec)
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- Material Composition
- DLP Copper;Tin Plating
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 0.8 lb.
- Package - GTIN - Package
- 30781810540306
- Package Height
- 2.43 in
- Package Length
- 3.25 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810540305
- Package - Total Units
- 10 EA
- Package Weight
- 0.8 lb.
- Package Width
- 3.00 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- Straight
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Features: HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability, Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance, The YAV HYLUG Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086, The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors, Package: Box, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29B, Y29NC Tool, DV26L Die Nest, Y29PR Die Indentor, (1) Crimp, Y35, Y39, Y750 Tool, UV26L Die Nest, Y34PA Die Indentor, (1) Crimp, Ms20659 Dash Number: -120, Die Index: 44, Wire Strip Length: 13/16 IN, Installation Tool: HYTOOL: Non-Ratchet: MY28, MY29-11 Tool, Finish: Electro-Tin Plated
- Standard
- UL467;Military Specified (Mil-Spec)
- Standard Package Quantity
- 10
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYLUG
- Sub Class Code
- B57BK7F
- Trade Name
- HYLUG™
- Type
- Ring Tongue
- UL Listed
- Yes
- Width
- 0.93 in
