Burndy YAV25RS3
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

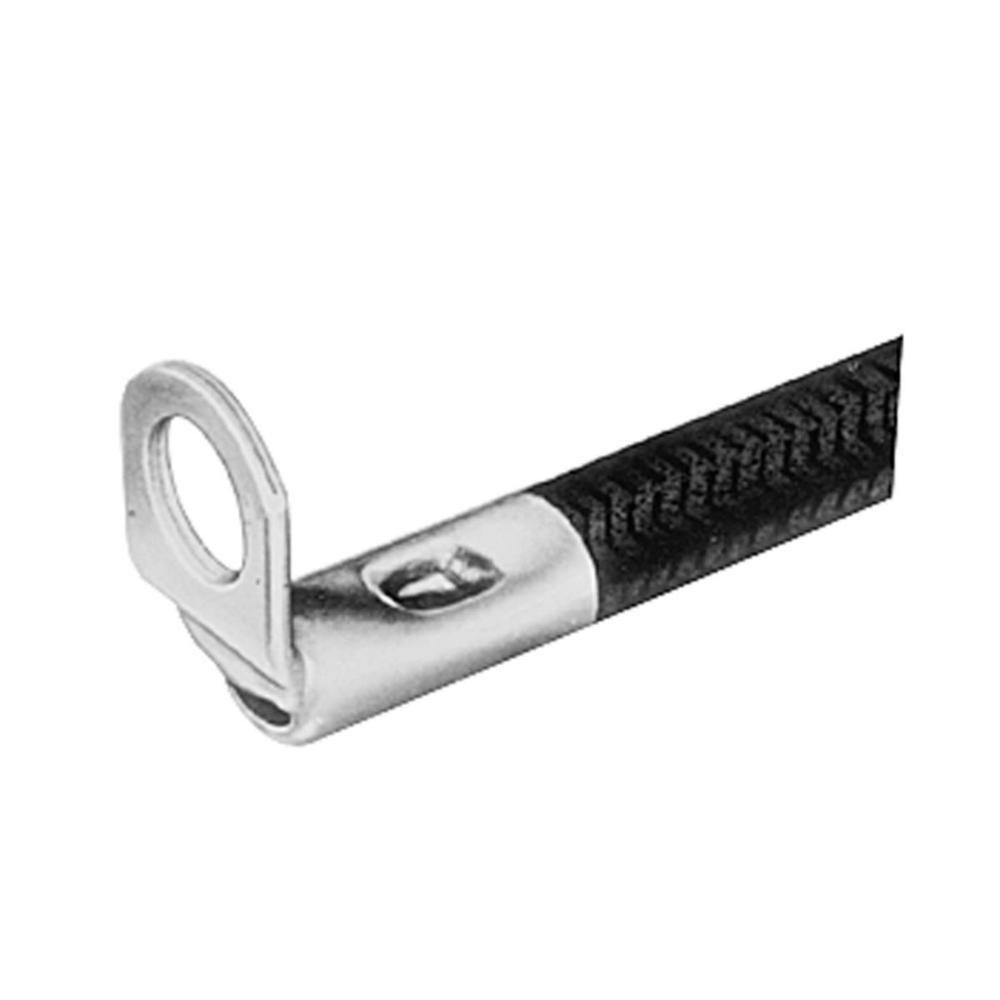

Uninsulated Right Angle Ring Terminal For 1/0 AWG.Uninsulated Right Angle Ring Terminal For 1/0 AWG
Burndy YAV25RS3 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810037577
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810037578
- Class Code
- B57
- Conductor - Copper Str Aircraft Size
- AN 0
- Conductor - Copper Str Aircraft Size Range
- AN 0
- Conductor - Copper Str Size
- 1/0
- Conductor - Copper Str Size Range
- 1/0 AWG
- Conductor Size
- 1/0 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Description - Invoice
- HYLUG-90 DEGREE BEND
- Die Index
- 43
- Dimension - B Length fraction
- 11/16 in
- Dimension - B Length inch
- 0.69 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - D inch
- 0.91 in
- Dimension - G inch
- 1.33 in
- Dimension - Hole Size mm
- 13 mm
- Dimension - Length Overall inch
- 1.35 in
- Dimension - L Length Overall mm
- 34 mm
- Dimension - N inch
- 0.44 in
- Dimension - Outside Diameter inch
- 0.58 in
- Dimension - Pad Width inch
- 0.88 in
- Dimension - Strip Length inch
- 11/16
- Dimension - Stud Size inch
- 1/2
- Dimension - Z inch
- 0.47 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.82 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 100 EA
- Package - Gross Weight per Pack
- 7 lb.
- Package - GTIN - Package
- 30781810037578
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810037577
- Package - Total Units
- 100 EA
- Package Weight
- 7 lb.
- Package Width
- 4.56 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- 90 Degree
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Features:Tin plated to resist corrosion, seamless pure copper tubing.
- Standard Package Quantity
- 100
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- TERMINALS, HYLUG
- Sub Class Code
- B57BK7F
- Trade Name
- HYLUG™
- Type
- Ring Tongue
- UL Listed
- Yes
- Width
- 0.82 in
