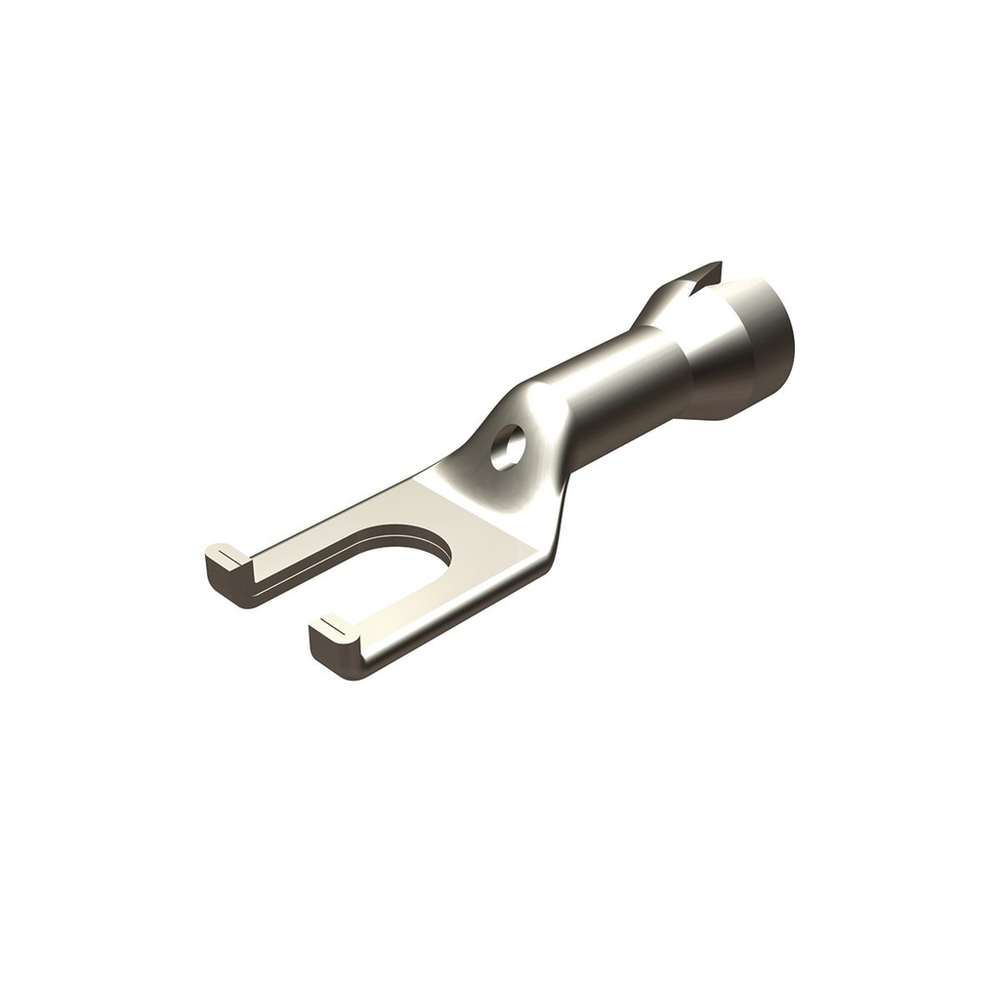

Burndy YAV14Z6BOX

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 0.000x0.000x0.000 (in)
• Buy American Compliant
  • Yes
• Cable Insulation Diameter Maximum
  • 0.150 in
• Carton - Gross Weight per Pack
  • 0.000 lb.
• Carton - Number of Sub Packs
  • 1200
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810534106
• Carton - Total Units
  • 1200 EA
• Case - Number of Sub Packs
  • 12 EA
• Case - Pack Description
  • Carton
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810534107
• Case - Total Units
  • 1200 EA
• Certification Agency
  • Proposition 65
• Class Code
  • B57
• Conductor - Copper Str Aircraft Size
  • AN 20;AN 18;AN 16;AN 14
• Conductor - Copper Str Aircraft Size Range
  • AN 20-AN 14
• Conductor - Copper Str Size
  • 20 AWG;18 AWG;16 AWG;14 AWG
• Conductor - Copper Str Size Range
  • 20 AWG - 14 AWG
• Conductor Size
  • 16 - 14 AWG
• Conductor Type
  • CU C Solid-Size;CU C Str-Size
• Connector Type
  • Flanged Fork Terminal
• Country of Origin
  • US
• Description - Invoice
  • FORK TERMINAL-#20-#14 AWG-UNIN
• Dimension - B Length fraction
  • 1/4 in
• Dimension - B Length inch
  • 0.27 in
• Dimension - Bolt Size fraction
  • #8 - #10
• Dimension - Hole Size fraction
  • 1/5
• Dimension - Hole Size inch
  • 0.20 in
• Dimension - Length Overall inch
  • 1.00 in
• Dimension - L Length Overall mm
  • 25 mm
• Dimension - N inch
  • 0.23 in
• Dimension - Outside Diameter inch
  • 0.16 in
• Dimension - Pad Width inch
  • 0.37 in
• Dimension - Strip Length inch
  • 1/4 in
• Dimension - Stud Size inch
  • #8;#9;#10
• Dimension - Z inch
  • 0.21 in
• Each - Number of Sub Packs
  • 1 EA
• Each - Pack Description
  • Each
• Each - Width
  • 0.37 in
• Feature - Barrel Style
  • Shrouded
• Feature - Barrel Type
  • Standard
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908020
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL467
• Lead Time
  • 12 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 100 EA
• Package - Gross Weight per Pack
  • 0.4 lb.
• Package - GTIN - Package
  • 30781810534107
• Package Height
  • 4.25 in
• Package Length
  • 2.06 in
• Package - Number of Sub Packs
  • 100 EA
• Package - Pack Description
  • Package
• Package Quantity
  • 100 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810534106
• Package - Total Units
  • 100 EA
• Package Weight
  • 0.4 lb.
• Package Width
  • 2.06 in
• Pallet - GTIN - Package
  • 70781810534105
• Pallet Height
  • 44.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 1201.800 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Type
  • Flanged Fork
• Plated
  • Y
• Plating Type
  • Tin
• Product Type
  • TERMINAL
• Special Features
  • Features: The Type " YAV-Z" HYLUG Is A Seamless Heavy Duty Uninsulated Compression Fork Tongue Terminal With A Shroud For An Insulation Grip And Cable Support, Manufactured From Electrolytic Copper Tubing For Use On Copper Commercial (Code) Cable, Type "AN" Aircraft And Extra Flexible Conductors, The Seamless Tubing Produces A Double Thick Tongue While The Seamless Barrel Design Provides A Very Strong Connector For Very Demanding Applications That Require Highly Reliable Connections, In Addition To The Benefits Described For The YAV Box Series Of Connectors The YAVH-F Box And YAV-Z Terminals Provide The Following Benefits, Fork Tongue: Allows Installation Of Compression Terminal Under Screw Head Without Complete Removal Of The Screw Thereby Lowering Installation Costs, Flanged Fork Tongue: Allows Installation Of Compression Terminal Under Screw Head Without Complete Removal Of The Screw Plus Aids In Maintaining The Terminal On The Stud Should The Screw Loosen Slightly, Insulation Diameter (maximum): 0.15 IN, Package: Box, Installation Tool: Non-Ratchet: Y10D, Y14MV, Y10-22 Tool, Ratchet: MR8-G98, MR8-9Q, Y8MRB-1, MR20, M8ND Tool With N14HT-5 Or N14HT Die, Wire Shroud: Yes, Conductor Type: Commercial/Military Stranded Copper, Wire Strip Length: 1/4 IN, Tongue Angle: Straight, Finish: Electro-Tin Plated
• Standard
  • UL467
• Standard Package Quantity
  • 100
• Standards - Industry Standards Met
  • UL486
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • N - Non-stock
• Sub Brand
  • HYLUG
• Sub Class Code
  • B57BKAF
• Trade Name
  • HYLUG™
• Type
  • Fork Tongue
• UL Listed
  • Yes
• Width
  • 0.37 in
