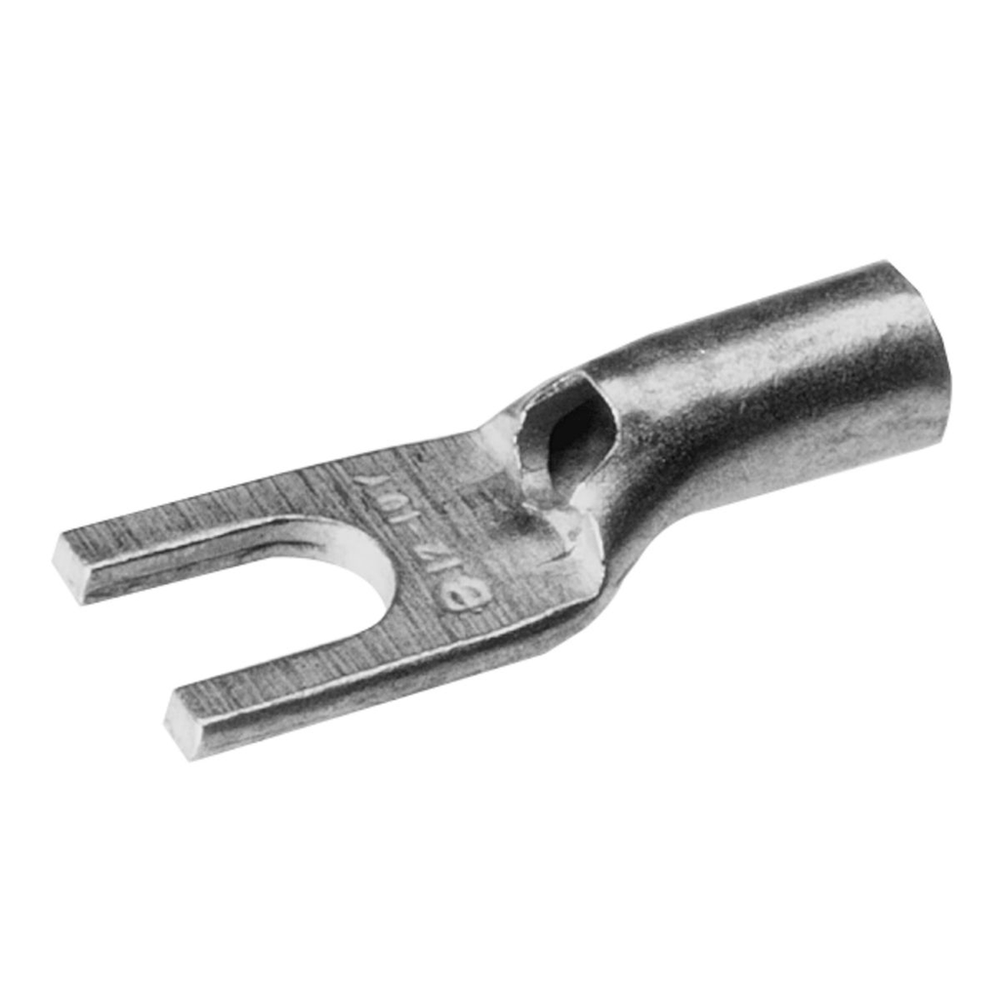

Burndy YAV14T34F
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Uninsulated Fork Terminal For 16 - 14 AWG.Uninsulated Fork Terminal For 16 - 14 AWG
Burndy YAV14T34F is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Contact Manufacturer
- UL Recognized
- No
Specifications
- Application
- For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- BOX SIZE
- 4.625x4.313x4.313 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 3.000 lb.
- Carton - Number of Sub Packs
- 1000
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810025413
- Carton - Total Units
- 1000
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810025414
- Class Code
- B57
- Conductor - Copper Str Aircraft Size
- AN 20;AN 18;AN 16;AN 14
- Conductor - Copper Str Aircraft Size Range
- AN 20-AN 14
- Conductor - Copper Str Size
- 20 AWG;18 AWG;16 AWG;14 AWG
- Conductor - Copper Str Size Range
- 20 AWG - 14 AWG
- Conductor Size
- 16 - 14 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Fork Terminal
- Country of Origin
- US
- Description - Invoice
- 20-14 HVYDTY FORK 8-10 S
- Dimension - B Length fraction
- 1/4 in
- Dimension - B Length inch
- 0.27 in
- Dimension - Bolt Size fraction
- #8 - #10
- Dimension - D inch
- 0.48 in
- Dimension - Length Overall inch
- 0.82 in
- Dimension - L Length Overall mm
- 21 mm
- Dimension - N inch
- 0.22 in
- Dimension - Outside Diameter inch
- 0.16 in
- Dimension - Pad Width inch
- 0.37 in
- Dimension - Strip Length inch
- 9/32 in
- Dimension - Stud Size inch
- #8;#9;#10
- Dimension - Z inch
- 0.26 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.38 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1000 EA
- Package - Gross Weight per Pack
- 3 lb.
- Package - GTIN - Package
- 30781810025414
- Package Height
- 4 in
- Package Length
- 4 in
- Package - Number of Sub Packs
- 1000
- Package - Pack Description
- Package
- Package Quantity
- 1000 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810025413
- Package - Total Units
- 1000 EA
- Package Weight
- 3 lb.
- Package Width
- 4 in
- Pallet - GTIN - Package
- 70781810025412
- Pallet Height
- 47.375 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1827.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Fork
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Features: The Type YAV-T-F HYLUG Is A Seamless Heavy Duty Uninsulated Compression Fork tongue Terminal Manufactured From Electro -Lytic Copper For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, The Seamless Design Produces A Double Thick Tongue And The Seamless Barrel Provides A Strong Highly Reliable Connection, All The Benefits Of The Type YAV Apply For The Same Wire Sizes, Fork Tongue: Allows Installation Of Compression Terminal Under Screw Head Without Complete Removal Of The Screw, Wire Shroud: No, Package: Bulk, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: Y8MRB-1, MR20, MR8G98, MR8-9Q Tool, Wire Strip Length: 9/32 IN, Conductor Type: Commercial/Military Stranded Copper, Tongue Angle: Straight, Finish: Electro-Tin Plated
- Standard
- UL467
- Standard Package Quantity
- 1000
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYLUG
- Sub Class Code
- B57BKCF
- Trade Name
- HYLUG™
- Type
- Fork Tongue
- UL Listed
- Yes
- Width
- 0.38 in
