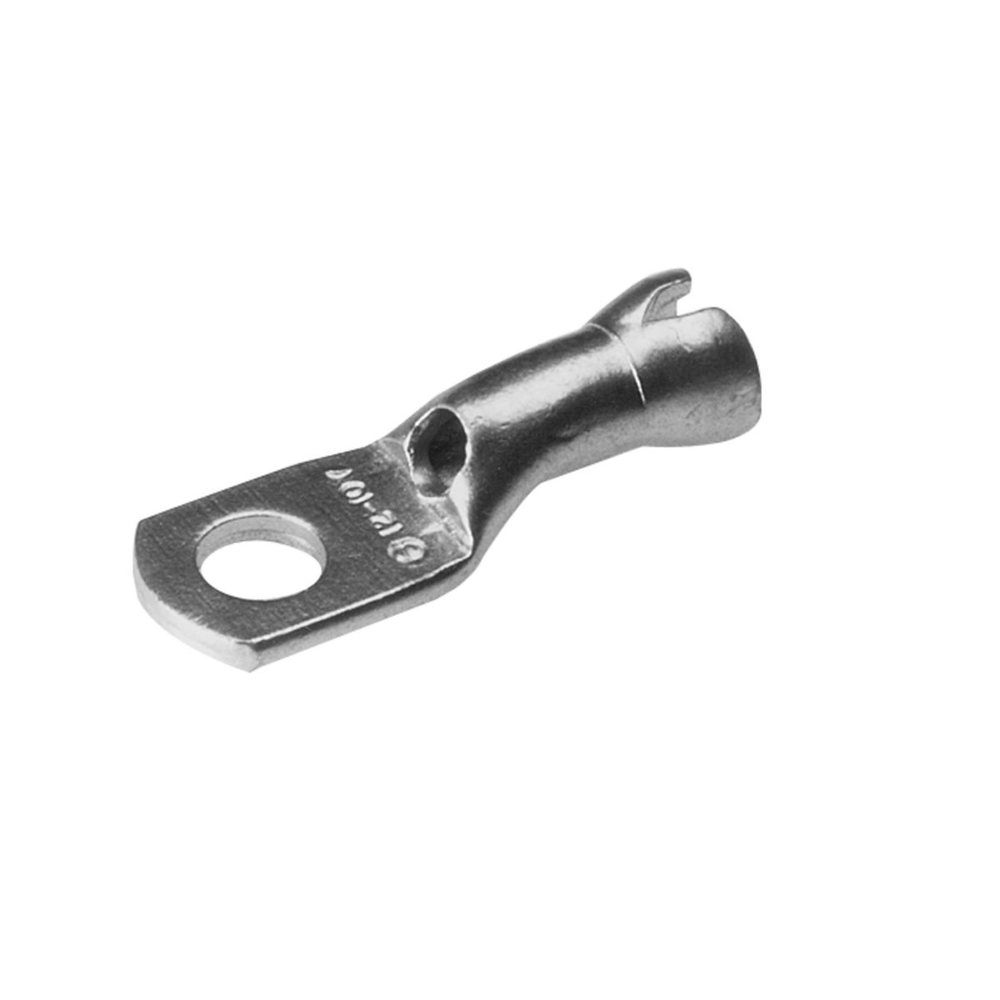

Burndy YAV10H3BOX

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 0.000x0.000x0.000 (in)
• Buy American Compliant
  • Yes
• Cable Insulation Diameter Maximum
  • 0.192 in
• Carton - Gross Weight per Pack
  • 0.000 lb.
• Carton - Number of Sub Packs
  • 600
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810532508
• Carton - Total Units
  • 600 EA
• Case - Number of Sub Packs
  • 12
• Case - Pack Description
  • Case (ISO code = 'CA' for HEP)
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810532509
• Case - Total Units
  • 600 EA
• Certification Agency
  • Proposition 65
• Class Code
  • B57
• Conductor Range
  • #12 AWG to #10 AWG
• Conductor Size
  • 12 - 10 AWG
• Conductor Type
  • CU C Solid-Size;CU C Str-Size
• Connector Type
  • Ring Terminal
• Country of Origin
  • US
• Description - Invoice
  • RING-12- 10 AWG-UNIN,1.17 IN L
• Dimension - B Length fraction
  • 22/71
• Dimension - B Length inch
  • 0.31 in
• Dimension - Bolt Size fraction
  • 1/4
• Dimension - Hole Size inch
  • 0.27 in
• Dimension - Length Overall inch
  • 1.17 in
• Dimension - L Length Overall mm
  • 30 mm
• Dimension - N inch
  • 0.23 in
• Dimension - Outside Diameter inch
  • 0.21 in
• Dimension - Pad Width inch
  • 0.47 in
• Dimension - Strip Length inch
  • 7/16 in
• Dimension - Stud Size inch
  • 1/4 in
• Dimension - Z inch
  • 0.32 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.47 in
• Feature - Barrel Style
  • Shrouded
• Feature - Barrel Type
  • Standard
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908020
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL467
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 50 EA
• Package - Gross Weight per Pack
  • 0.4 lb.
• Package - GTIN - Package
  • 30781810532509
• Package Height
  • 4.25 in
• Package Length
  • 2.06 in
• Package - Number of Sub Packs
  • 50
• Package - Pack Description
  • Package
• Package Quantity
  • 50 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810532508
• Package - Total Units
  • 50 EA
• Package Weight
  • 0.4 lb.
• Package Width
  • 2.06 in
• Pallet - GTIN - Package
  • 70781810532507
• Pallet Height
  • 44.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 1195.080 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Type
  • Ring
• Plated
  • Y
• Plating Type
  • Tin
• Product Type
  • TERMINAL
• Special Features
  • Features: The Type YAV-H HYLUG Is A Seamless Heavy Duty Uninsulated Compression Ring Tongue Terminal With A Shroud For An Insulation Grip And Cable Support, They Are Manufactured From Pure Electrolytic Copper Tubing For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, The Seamless Design Produces A Double Thick Tongue And The Seamless Barrel Provides A Strong Highly Reliable Connection, Meets The Requirements Of SAE-AS7928, The Benefits Of The Type YAV Apply To The YAV-H HYLUG, Shroud/Insulation Grip Cable Support And Strain Relief: Protects The Wire Against Breaking Under Vibration Or Flexing Conditions, Package: Box, Insulation Diameter (maximum): 0.192 IN, Wire Shroud: Yes, Conductor Type: Commercial/Military Stranded Copper, Wire Strip Length: 7/16 IN, Tongue Angle: Straight, Installation Tool: Plier Type: Y10D, Y10-22 Tool, Ratchet: MR8-G98, MR8-9Q, Y8MRB-1, MR20 Tool, M8ND Tool With N10HT-24 Die
• Standard
  • UL467
• Standard Package Quantity
  • 50
• Standards - Industry Standards Met
  • UL486
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • N - Non-stock
• Sub Brand
  • HYLUG
• Sub Class Code
  • B57BK5F
• Trade Name
  • HYLUG™
• Type
  • Ring Tongue
• UL Listed
  • Yes
• Width
  • 0.47 in
