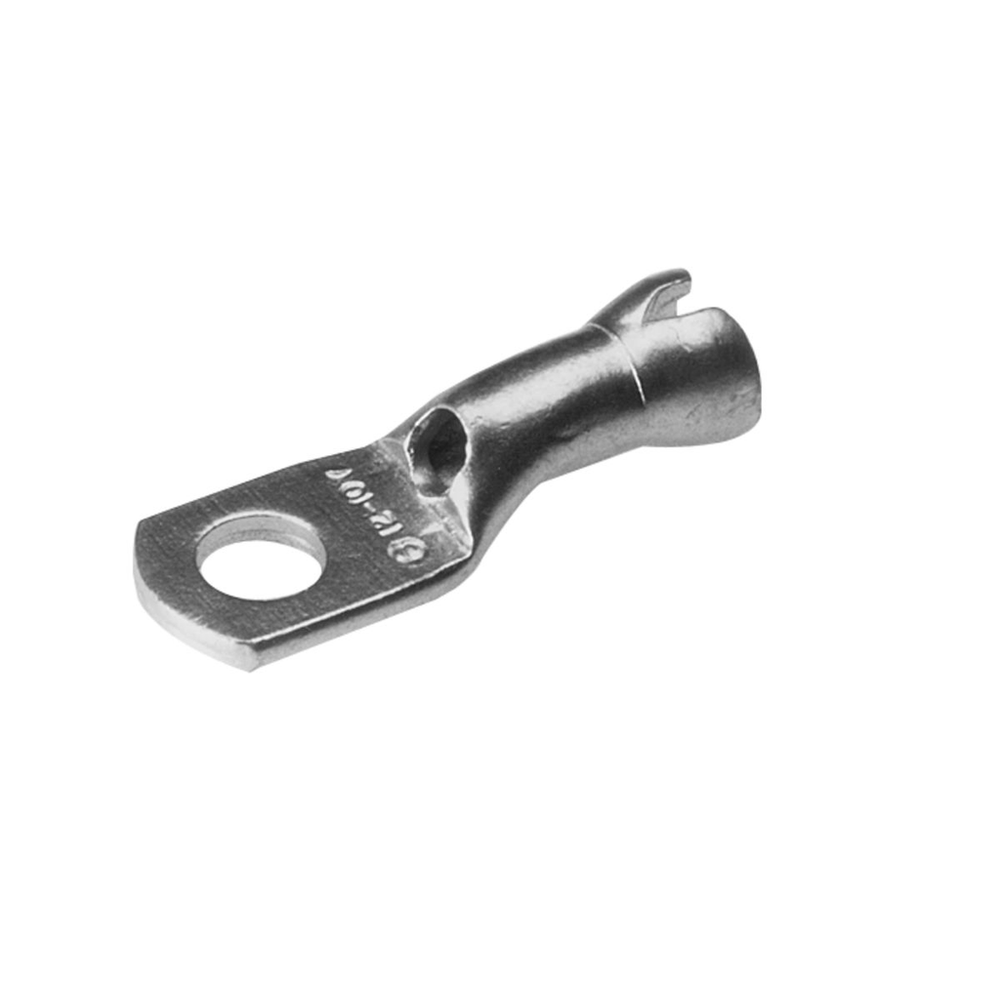

Burndy YAV10H

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 5.125x6.438x4.875 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 3.500 lb.
• Carton - Number of Sub Packs
  • 500
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810024904
• Carton - Total Units
  • 500
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810024905
• Class Code
  • B57
• Conductor - Copper Str Aircraft Size
  • AN 12;AN 10
• Conductor - Copper Str Aircraft Size Range
  • AN 12-AN 10
• Conductor - Copper Str Navy Size
  • 6 (7);6 (19);9 (7);9 (37)
• Conductor - Copper Str Navy Size Range
  • 6 (7)-9 (37)
• Conductor - Copper Str Size
  • 12;10
• Conductor - Copper Str Size Range
  • 12 AWG - 10 AWG
• Conductor Size
  • 12 - 10 AWG
• Conductor Type
  • CU C Solid-Size;CU C Str-Size
• Connector Type
  • Ring Terminal
• Country of Origin
  • US
• Description - Invoice
  • 12-10 HVYDTY RING 8-10 S,1.05 IN L
• Dimension - B Length fraction
  • 5/16 in
• Dimension - B Length inch
  • 0.31 in
• Dimension - Bolt Size fraction
  • #8 - #10
• Dimension - D inch
  • 0.47 in
• Dimension - Hole Size fraction
  • 1/5
• Dimension - Hole Size inch
  • 0.19 in
• Dimension - Hole Size mm
  • 5 mm
• Dimension - Length Overall inch
  • 1.04 in
• Dimension - N inch
  • 0.19 in
• Dimension - Outside Diameter inch
  • 0.22 in
• Dimension - Pad Width inch
  • 0.38 in
• Dimension - Stud Size inch
  • #8;#10
• Dimension - Z inch
  • 0.24 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.38 in
• Feature - Barrel Style
  • Shrouded
• Feature - Barrel Type
  • Standard
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908020
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL467
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 500 EA
• Package - Gross Weight per Pack
  • 3.5 lb.
• Package - GTIN - Package
  • 30781810024905
• Package Height
  • 4.5 in
• Package Length
  • 6.13 in
• Package - Number of Sub Packs
  • 500
• Package - Pack Description
  • Package
• Package Quantity
  • 500 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810024904
• Package - Total Units
  • 500 EA
• Package Weight
  • 3.5 lb.
• Package Width
  • 4.56 in
• Pallet - GTIN - Package
  • 70781810024903
• Pallet Height
  • 46.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 1669.000 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Type
  • Ring
• Plated
  • Y
• Plating Type
  • Tin - Electro Plated
• Product Type
  • TERMINAL
• Special Features
  • Features: The Type YAV-H HYLUG Is A Seamless Heavy Duty Uninsulated Compression Ring Tongue Terminal With A Shroud For An Insulation Grip And Cable Support, They Are Manufactured From Pure Electrolytic Copper Tubing For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, The Seamless Design Produces A Double Thick Tongue And The Seamless Barrel Provides A Strong Highly Reliable Connection, Meets The Requirements Of SAE-AS7928, The Benefits Of The Type YAV Apply To The YAV-H HYLUG, Shroud/Insulation Grip Cable Support And Strain Relief: Protects The Wire Against Breaking Under Vibration Or Flexing Conditions, Wire Shroud: Yes, Package: Bulk, Insulation Diameter (maximum): 0.192 IN, Wire Strip Length: 7/16 IN, Conductor Type: Commercial/Military Stranded Copper, Tongue Angle: Straight, Installation Tool: Plier Type: Y10D, Y10-22 Tool, Ratchet: Y8MRB-1, MR20, MR8G98, MR8-9Q Tool, M8ND Tool With N10HT-24 Die
• Standard
  • UL467
• Standard Package Quantity
  • 500
• Standards - Industry Standards Met
  • UL486
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • HYLUG
• Sub Class Code
  • B57BK7F
• Trade Name
  • HYLUG™
• Type
  • Ring Tongue
• UL Listed
  • Yes
• Width
  • 0.38 in
