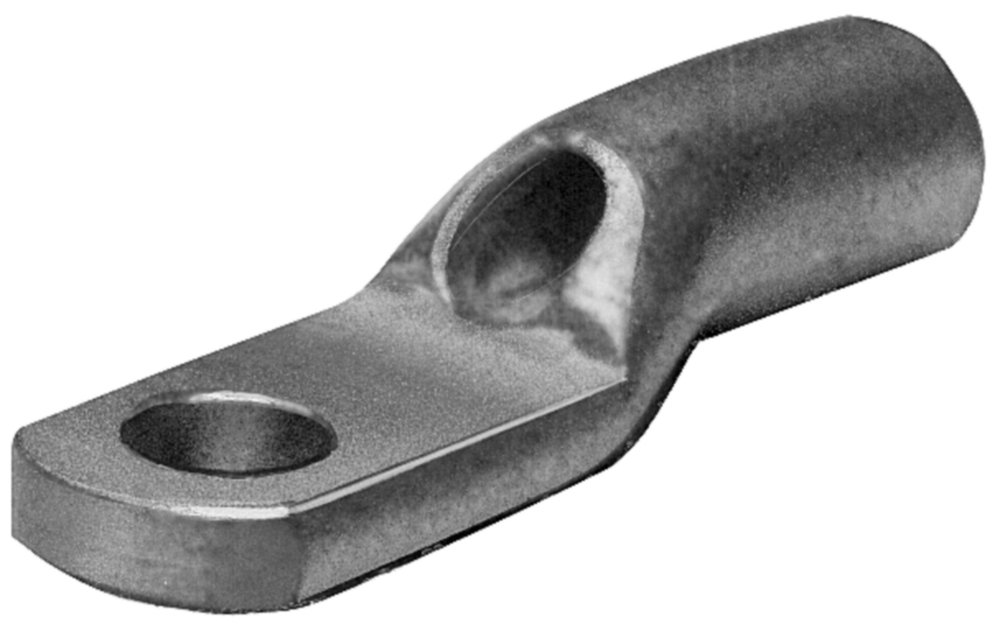

Burndy YAV10BOX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
CU Compression Terminal Code Conductor, Bevelled Entry, 1 Hole/W/InspWindow, #14-#10(Str) #12-#10(Sol), 600V-35kV, #8-#10 Stud, Standard Barrel, Tin Plated.Non-insulated YAV10BOX
Burndy YAV10BOX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - Copper Solid Size Range
- 12 AWG-10 AWG
- Conductor - Copper Str Aircraft Size Range
- AN 12-AN 10
- Conductor - Copper Str Size Range
- 14 AWG-10 AWG
Dimensions
- Dimension - B Length fraction
- 2/5
- Dimension - B Length inch
- 0.40 in
- Dimension - Length Overall inch
- 0.97 in
- Dimension - L Length Overall mm
- 25 mm
- Dimension - Pad Width inch
- 0.38 in
- Dimension - Strip Length inch
- 7/16 in
- Dimension - Stud Size inch
- #8;#10
- Dimension - Z inch
- 0.25 in
- Physical Attribute - Tongue Angle
- Straight
General
- Application
- For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Industrials, Hospitals, Electric Utilities, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance
- Connector Type
- Terminal - Ring
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Material
- Copper
- Military Specification
- MS20659
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin
- Sub Brand
- HYLUG
- Trade Name
- HYLUG™
- Type
- Ring Tongue
- UPC
- 781810541500
Logistics
- Carton Quantity
- 600 EA
- Minimum Pack Quantity
- 50
