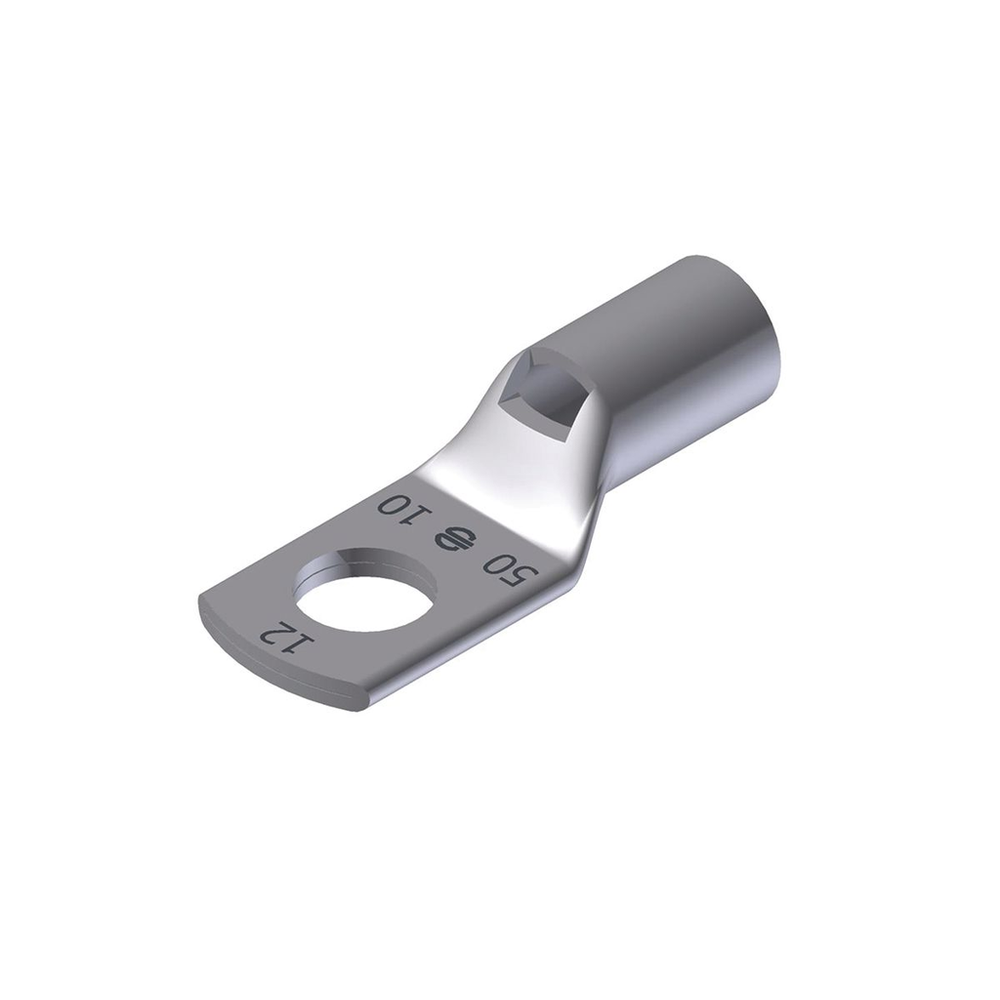

Burndy YAV025M5
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper Tubing Terminal, 1 Hole W/insp window, 2.5 mm Class 2,5, 5 mm Stud.Copper Compression Terminal
Burndy YAV025M5 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Metric Wire Termination
- Base Unit of Measure
- EA
- BOX SIZE
- 2.745x2.685x1.935 (in)
- Carton - Gross Weight per Pack
- 0.300 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810235256
- Carton - Total Units
- 100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810235257
- Class Code
- B55
- Conductor - Copper Str Size
- 25 mm2
- Conductor - Material
- COPPER
- Conductor Size
- 25 mm2
- Conductor Type
- CLASS 2
- Connector Type
- METRIC
- Country of Origin
- US
- Description - Slang
- TERM METRIC
- Die Index
- 9
- Dimension - B Length inch
- 0.27 in
- Dimension - Bolt Size fraction
- #8-#10
- Dimension - Bolt Size inch
- 0.21
- Dimension - Hole Size fraction
- #10
- Dimension - Hole Size inch
- 0.21
- Dimension - Hole Size mm
- 5.3 mm
- Dimension - Length Overall inch
- 0.75 in
- Dimension - L Length Overall mm
- 19.1 mm
- Dimension - N inch
- 0.16 in
- Dimension - Outside Diameter inch
- 0.15 in
- Dimension - Pad Width inch
- 0.31 in
- Dimension - Strip Length inch
- 0.28 in
- Dimension - Stud Size fraction
- #10
- Dimension - Z inch
- 0.24 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Material
- COPPER
- Package - GTIN - Package
- 30781810235257
- Package Quantity
- 100 EA
- Package - Total Units
- 100 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- Straight
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Standard Package Quantity
- 100
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B55BJ6F
- Trade Name
- HYLUG™
- Type
- Metric Terminals
- UL Listed
- No
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
