Description

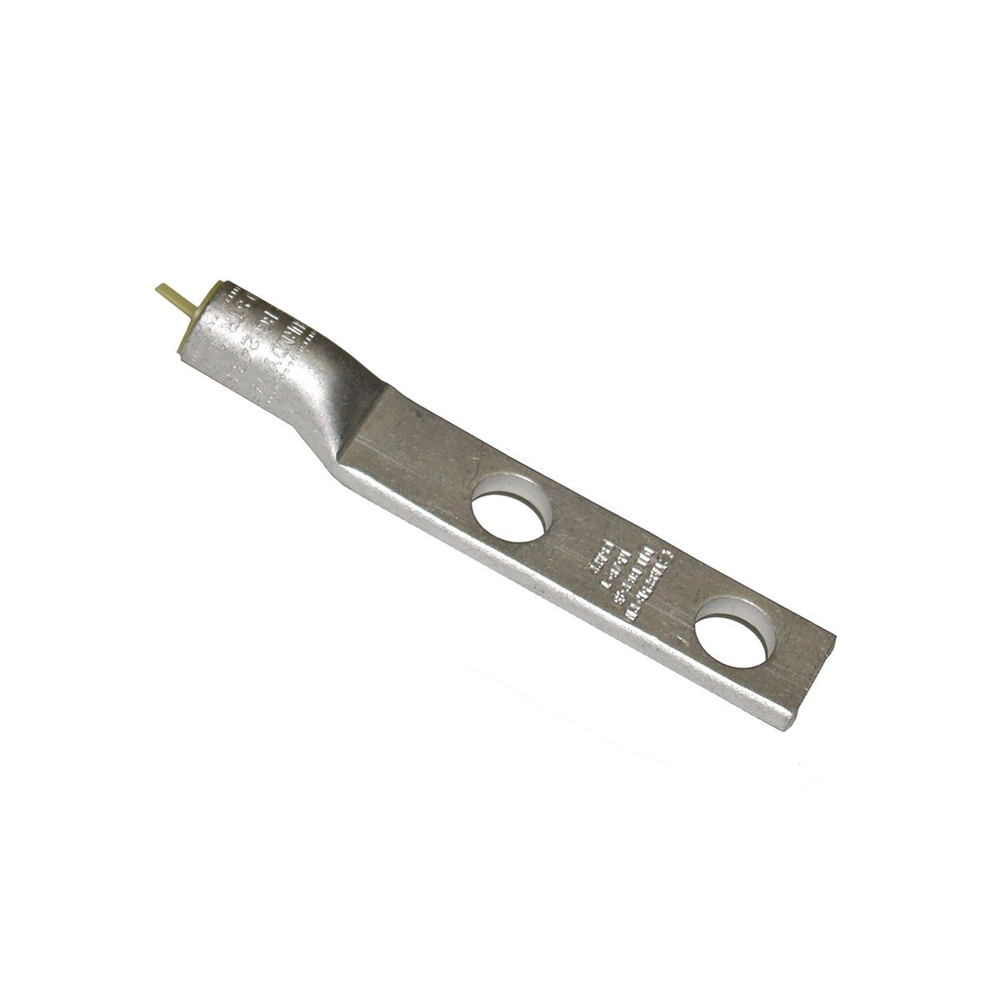

Straight Stacking Lug, Al Tubing, 2-NEMA Holes, 500 Al/Cu, 477 ACSR, Pink, 0.56" Hole Dia.Straight Stacking Lug, Al Tubing, 2-NEMA Holes, 500 Al/Cu, 477 ACSR, Pink, 0.56" Hole Dia.
Burndy YAS361R2N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- BOX SIZE
- 6.375x12.313x9.313 (in)
- Carton - Gross Weight per Pack
- 13.800 lb.
- Carton - Number of Sub Packs
- 20
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810052006
- Carton - Total Units
- 20
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810052007
- Certification Agency
- Proposition 65
- Class Code
- B35
- Color Code
- Pink
- Conductor - ACSR Str Size
- 477.0 (18/1) Pelican kcmil
- Conductor - ACSR Str Size Range
- 477.0 (18/1) Pelican kcmil
- Conductor - AL Str Size
- 500 kcmil
- Conductor - AL Str Size Range
- 500 kcmil
- Conductor - Copper Str Size
- 500 kcmil
- Conductor - Copper Str Size Range
- 500 kcmil
- Connector Type
- Terminal
- Country of Origin
- US
- Die Index
- 608;722;K-1-5/16;CSA28
- Dimension - B Length inch
- 2.46 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Length Overall inch
- 7.55 in
- Dimension - L Length Overall mm
- 192 mm
- Dimension - N inch
- 0.63 in
- Dimension - Outside Diameter inch
- 1.5 in
- Dimension - Pad Width inch
- 1.68 in
- Dimension - Strip Length inch
- 2-19/32 in
- Dimension - Z inch
- 1.98 in
- Feature - Barrel Style
- Chamfered
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Material
- Aluminum Alloy
- Package - GTIN - Package
- 30781810052007
- Package Quantity
- 20 EA
- Package - Total Units
- 20 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810052005
- Pallet Height
- 44.000 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1287.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Crimps Required
- 2
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Angle
- Straight
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Compression
- Standard Package Quantity
- 20
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B35B93F
- Trade Name
- HYLUG™
- UL Listed
- No
