Burndy YAK34A2G2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

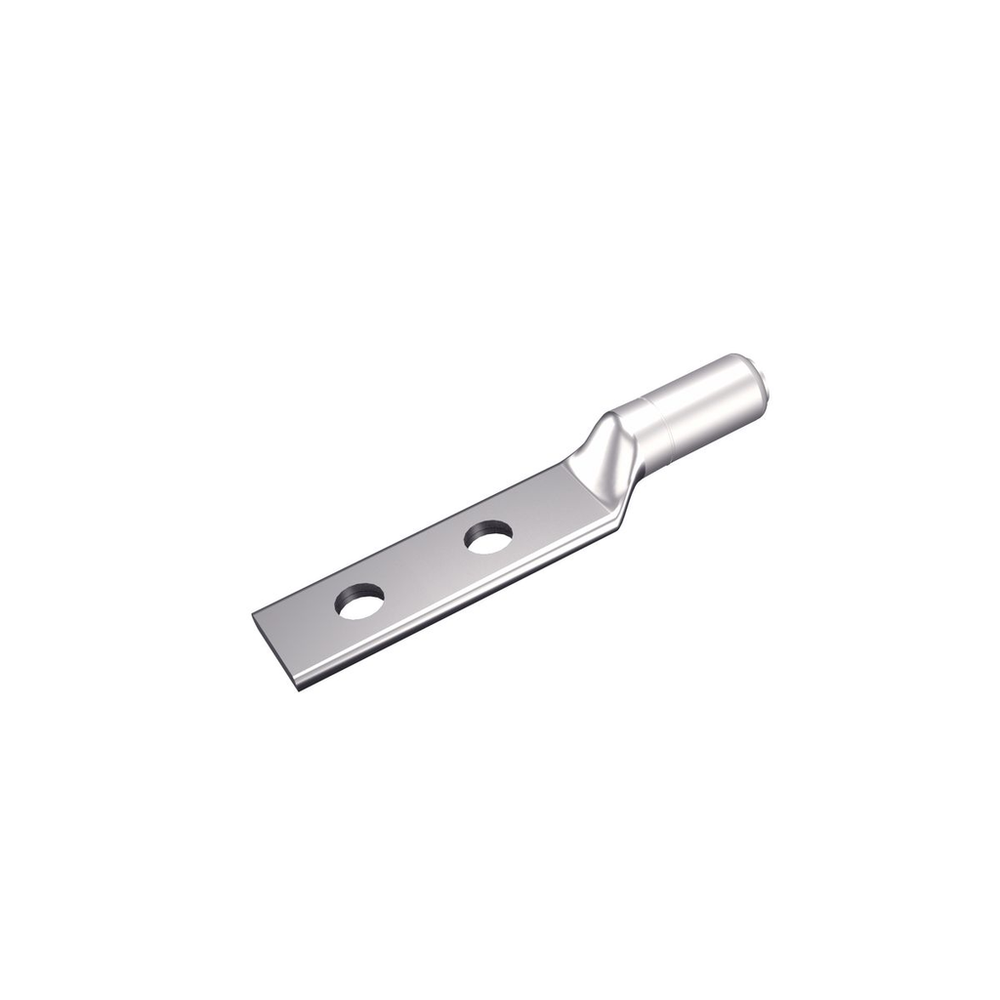

Cast Al Straight Stacking Lug, 2-NEMA Holes, 500 kcmil Al, 500 kcmil Al Compressed, 0.56" Hole Dia.Cast Al Straight Stacking Lug, 2-NEMA Holes, 500 kcmil Al, 500 kcmil Al Compressed, 0.56" Hole Dia
Burndy YAK34A2G2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Aluminum
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810802281
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810802282
- Certification Agency
- Proposition 65
- Class Code
- B35
- Conductor - AL Str Size
- 500 kcmil
- Conductor - AL Str Size Range
- 500 kcmil
- Conductor - Copper Str Size
- 500 kcmil
- Conductor - Copper Str Size Range
- 500 kcmil
- Connector Type
- Terminal
- Country of Origin
- US
- Description - Invoice
- 500 AL STRAIGHT LUG,500 Kcmil
- Die Index
- 317;705
- Dimension - B Length inch
- 2.41 in
- Dimension - Bolt Hole Size inch
- 0.50 in
- Dimension - D inch
- 3.06 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Length Overall inch
- 7.75 in
- Dimension - L Length Overall mm
- 197 mm
- Dimension - N inch
- 0.62 in
- Dimension - Outside Diameter inch
- 1.25 in
- Dimension - Pad Width inch
- 1.62 in
- Dimension - Strip Length inch
- 2-1/2 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.62 in
- Feature - Barrel Style
- Chamfered
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum Alloy
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 11.6 lb.
- Package - GTIN - Package
- 30781810802282
- Package Height
- 6.13 in
- Package Length
- 9.38 in
- Package - Number of Sub Packs
- 20
- Package - Pack Description
- Package
- Package Quantity
- 20 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810802281
- Package - Total Units
- 20 EA
- Package Weight
- 11.6 lb.
- Package Width
- 7.44 in
- Physical Attribute - Number of Crimps Required
- 2
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Angle
- Straight
- Physical Attribute - Tongue Type
- Standard
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Compression
- Special Features
- Features: Compression Terminal, Conductor Type: Aluminum, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U317, U705 Die, Y45 Tool, U317, U705 Die With PT-6515 Adapter, Y46 Tool, U317, U705 Die With PUADP-1 Adapter, Die Index: 317 Or 705, Tongue Angle: Straight
- Standard Package Quantity
- 20
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- TERMINALS, HYLUG
- Sub Class Code
- B35B93F
- Trade Name
- HYLUG™
- Type
- YAK-A-2G, Stacking Lug
- UL Listed
- No
- Width
- 1.62 in
