Burndy YAK29A2G2
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

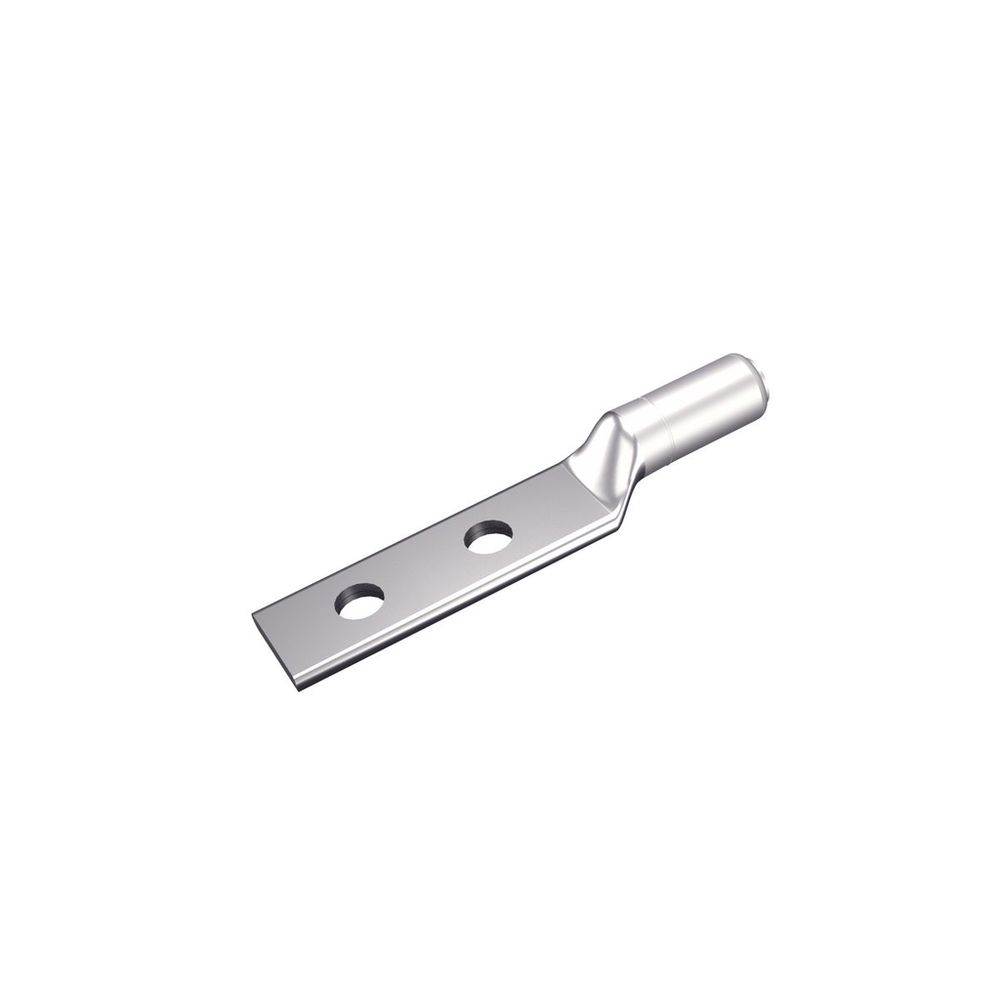

Cast Al Straight Stacking Lug, 2-NEMA Holes, 250 kcmil, 0.56" Hole Dia.Cast Al Straight Stacking Lug, 2-NEMA Holes, 250 kcmil, 0.56" Hole Dia
Burndy YAK29A2G2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810186954
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810186955
- Certification Agency
- Proposition 65
- Class Code
- B35
- Conductor - AL Str Size
- 250 kcmil
- Conductor - AL Str Size Range
- 250 kcmil
- Conductor - Copper Str Size
- 250 kcmil
- Conductor - Copper Str Size Range
- 250 kcmil
- Connector Type
- Terminal
- Country of Origin
- US
- Die Index
- 299;705
- Dimension - B Length inch
- 1.91 in
- Dimension - Bolt Hole Size inch
- 0.50 in
- Dimension - D inch
- 3.06 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Length Overall inch
- 6.84 in
- Dimension - L Length Overall mm
- 174 mm
- Dimension - N inch
- 0.62 in
- Dimension - Outside Diameter inch
- 1.11 in
- Dimension - Pad Width inch
- 1.62 in
- Dimension - Strip Length inch
- 2 in
- Feature - Barrel Style
- Chamfered
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Material
- Aluminum Alloy
- Package - GTIN - Package
- 30781810186955
- Package Quantity
- 20 EA
- Package - Total Units
- 20 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Crimps Required
- 1
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Angle
- Straight
- Physical Attribute - Tongue Type
- Standard
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Compression
- Standard Package Quantity
- 20
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B35B93F
- Trade Name
- HYLUG™
- UL Listed
- No
