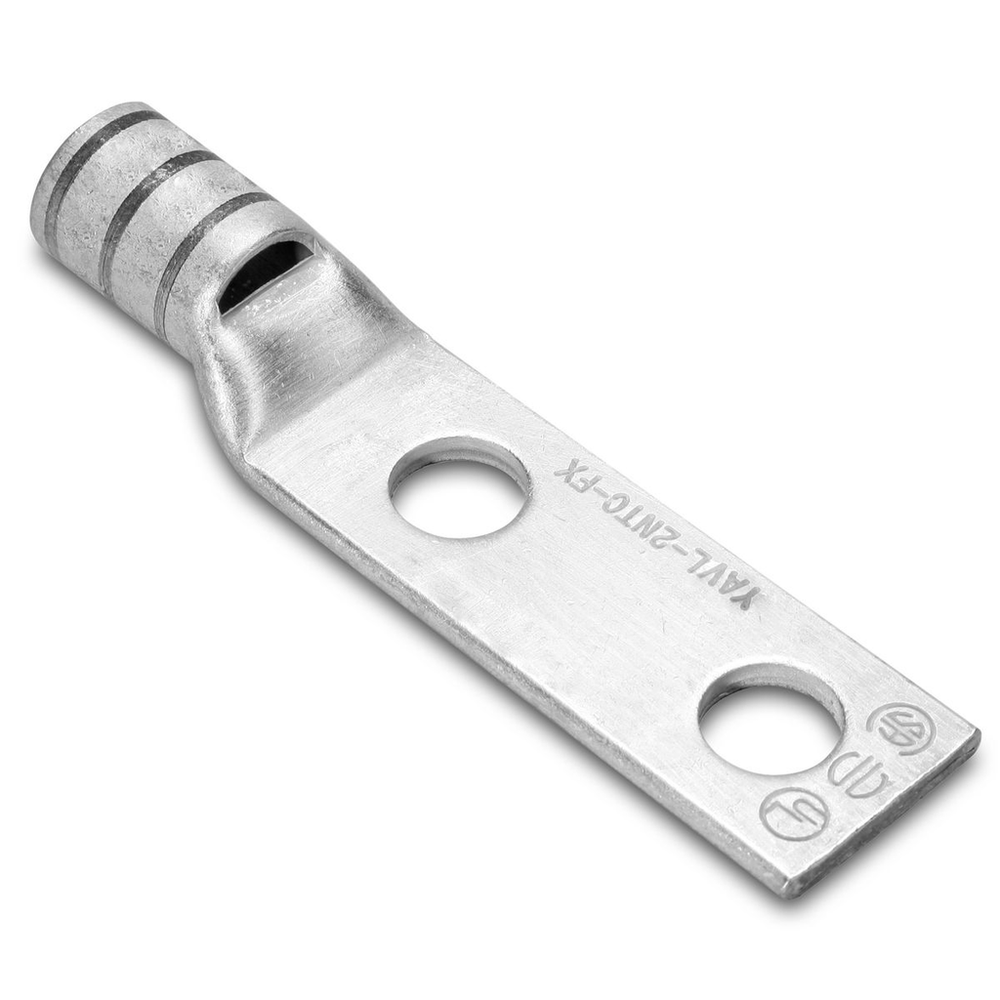

Burndy YAG28L2TC38FXTZ
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
4/0 Flex G,H,I,K,M,DLO, 4/0 AWG CU, Two Hole, 3/8 Stud Size, 1 Standard Barrel, Internal Chamfer, Tin-Zinc Plated, UL/CSA, 90°C, Up to 35kV, Purple Color Code, 15 Die Index.4/0 Flex G,H,I,K,M,DLO, 4/0 AWG, CU, 2 Hole, 3/8 Stud, 1 Spacing, Standard Barrel, Tin-Zinc Plated
Burndy YAG28L2TC38FXTZ is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Application
- Wire Termination
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 3.625 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00621945555877
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30621945555878
- Class Code
- B55
- Color
- Purple
- Color Code
- Purple
- Conductor - Copper DLO Size
- 4/0 AWG
- Conductor - Copper DLO Size Range
- 4/0 AWG
- Conductor - Copper Flex G Size
- "4/0 AWG"
- Conductor - Copper Flex G Size Range
- 4/0 AWG
- Conductor - Copper Flex H Size
- "4/0 AWG"
- Conductor - Copper Flex H Size Range
- 4/0 AWG
- Conductor - Copper Flex I Size
- "4/0 AWG"
- Conductor - Copper Flex I Size Range
- 4/0 AWG
- Conductor - Copper Flex K Size
- "4/0 AWG"
- Conductor - Copper Flex K Size Range
- 4/0 AWG
- Conductor - Copper Flex M Size
- "4/0 AWG"
- Conductor - Copper Str Compact Size
- "4/0 AWG"
- Conductor - Copper Str Navy Size
- 200
- Conductor - Copper Str Navy Size Range
- 200 (61) Navy
- Conductor - Copper Str Size
- "4/0 AWG"
- Conductor - Copper Str Size Range
- 4/0 AWG
- Conductor - Material
- COPPER
- Conductor Size
- 4/0 AWG
- Conductor Type
- CODE/FLEX
- Connector Type
- STANDARD BARREL
- Construction Material - Main
- COPPER TUBING TIN - ZINC PLATED
- Country of Origin
- US
- Description - Invoice
- CU,4/0AWG/FLEX,2H,STDBRL,TZ
- Description - Slang
- TERM FX STD BBL TN TEL
- Die Index
- 15
- Dimension - B Length inch
- 1.03 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Bolt Size inch
- 0.38
- Dimension - Hole Size fraction
- 3/8
- Dimension - Hole Size inch
- 0.41
- Dimension - Hole Size mm
- 10.4 mm
- Dimension - Pad Width inch
- 1.14 in
- Dimensions
- 3.46 in x 1.14 in x 0.77 in
- Dimension - Strip Length inch
- 1-1/16 in
- Dimension - Stud Size fraction
- 3/8
- Dimension - Stud Size inch
- 3/8 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.14 in
- Finish Type
- Tin-Zinc
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Height
- 0.77 in
- Hole Spacing
- 1 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Length
- 3.46 in
- Lowest Level UOM
- Each
- Material
- COPPER TUBING TIN - ZINC PLATED
- MSDS Flag
- No
- Number of Holes
- 2
- Order Multiple
- 1 EA
- Package - GTIN - Package
- 30621945555878
- Package Quantity
- 25 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70621945555876
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1727.000 lb.
- Pallet Width
- 40.000 in
- Product Type
- TERMINAL
- Size
- 3.46 in x 1.14 in x 0.77 in
- Special Features
- 2HL,STDBRL,3/8STUD, TIN ZINC, 4/0AWG/FLEX G,H,I,K,M,DLO,CU,PURPLE
- Standard
- UL 486A-486B
- Stock Indicator
- S - Shelf Stock
- Sub Class Code
- B55BHHF
- Thickness
- 0.15 in
- Trade Name
- HYLUG™
- Type
- Cable to Flat
- Width
- 1.14 in
- Wire Size
- 4/0 AWG
