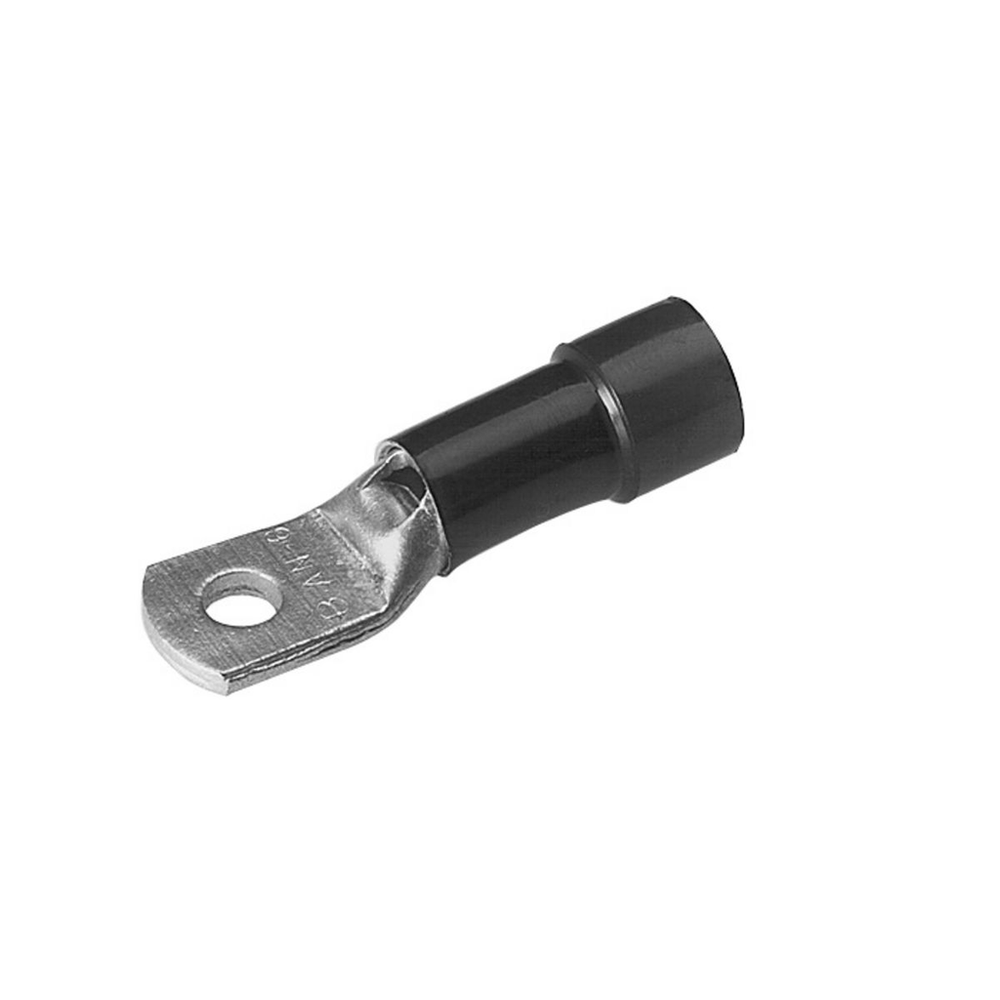

Burndy YAEV8CH1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Ring-Tongue Terminals, 8 Max. Insul.Dia.: .30" Sleeve, Color: Red, 6-8, 1.54 in L, Nylon-Insulated For Expanded Insulation, 600 Volts Max.Ring-Tongue Terminals, 8 Max. Insul.Dia.: .30" Sleeve, Color: Red, 6-8, 1.54 in L, Nylon-Insulated For Expanded Insulation, 600 Volts Max.
Burndy YAEV8CH1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810039595
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810039596
- Class Code
- B57
- Color Code
- Red
- Conductor - Copper Str Aircraft Size
- AN 8
- Conductor - Copper Str Aircraft Size Range
- AN 8
- Conductor - Copper Str Size
- 8
- Conductor - Copper Str Size Range
- 8
- Conductor Size
- 8 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Die Index
- 435
- Dimension - B Length fraction
- 3/8 in
- Dimension - B Length inch
- 0.37 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Bolt Size fraction
- 1/4
- Dimension - D inch
- 0.55 in
- Dimension - Length Overall inch
- 1.60 in
- Dimension - N inch
- 0.23 in
- Dimension - Pad Width inch
- 0.46 in
- Dimension - Strip Length inch
- 7/16
- Dimension - Stud Size inch
- 1/4
- Dimension - Z inch
- 0.28 in
- Each - Number of Sub Packs
- 1 EA
- Each - Pack Description
- Each
- Feature - Barrel Style
- Belled
- Feature - Barrel Type
- Standard
- Freight Class Code
- 16027000
- Harmonization Code
- 8536902800
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL486;Military Specified (Mil-Spec)
- Insulation
- Y
- Insulation Type
- Nylon
- Lead Time
- 12 wk
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 12 lb.
- Package - GTIN - Package
- 30781810039596
- Package - Number of Sub Packs
- 1000
- Package - Pack Description
- Package
- Package Quantity
- 1000 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810039595
- Package - Total Units
- 1000 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- Straight
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Standard Package Quantity
- 1000
- Standards - Industry Standards Met
- UL486;Military Specified (Mil-Spec)
- Standards - RoHS Compliance Status
- CM
- Sub Brand
- TERMINALS, INSULUG
- Sub Class Code
- B57BKYF
- Trade Name
- INSULUG™
- Type
- YAEV-H
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
