Burndy YAEV6CRS
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

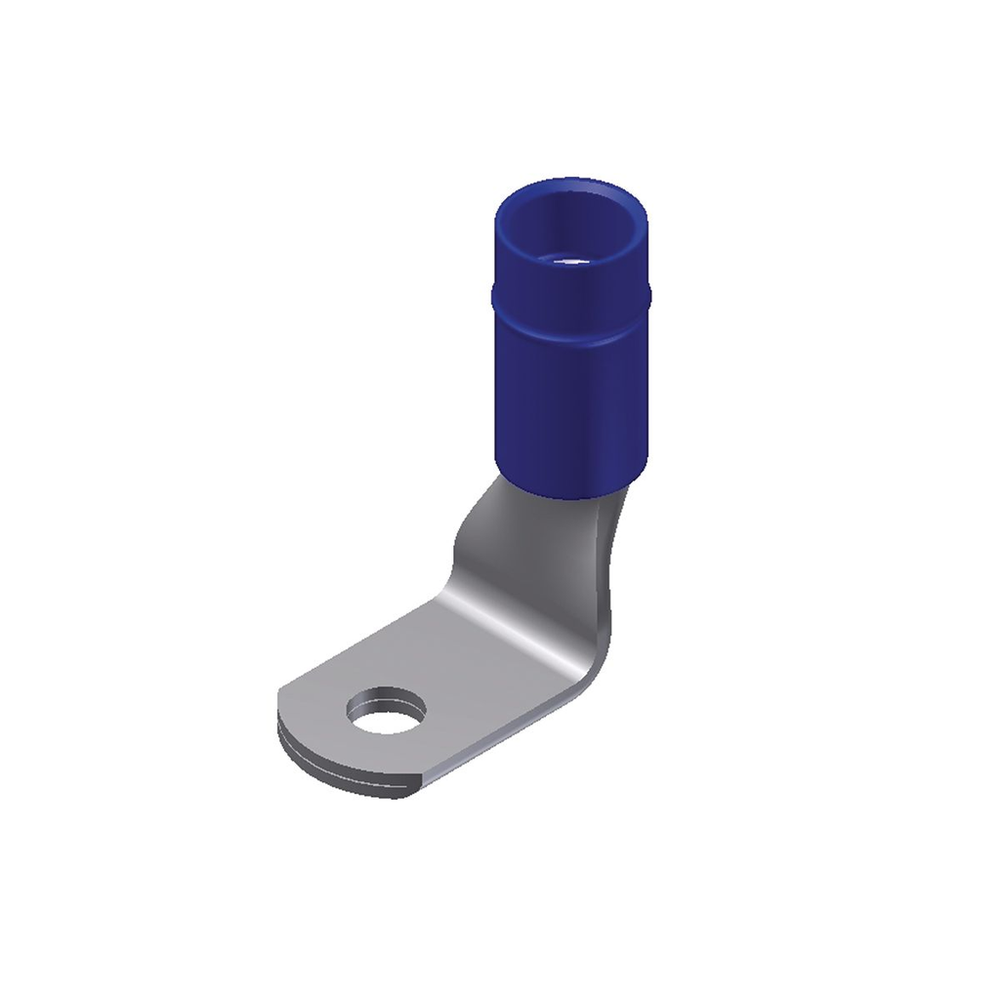

Nylon Right Angle Ring Terminal For 6 AWG.Nylon Right Angle Ring Terminal For 6 AWG
Burndy YAEV6CRS is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 10.000 lb.
- Carton - Number of Sub Packs
- 500
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810027684
- Carton - Total Units
- 500
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810027685
- Class Code
- B57
- Color Code
- Blue
- Conductor - Copper Str Aircraft Size
- AN 6
- Conductor - Copper Str Aircraft Size Range
- AN 6
- Conductor - Copper Str Size
- 6
- Conductor Size
- 6 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Description - Invoice
- 6 NYL HVYDTY RING 1/4 ST
- Die Index
- 436
- Dimension - B Length inch
- 0.44 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Bolt Size fraction
- 1/4
- Dimension - D inch
- 0.53 in
- Dimension - G inch
- 0.88 in
- Dimension - Hole Size inch
- 0.27 in
- Dimension - Length Overall inch
- 1.28 in
- Dimension - N inch
- 0.25 in
- Dimension - Outside Diameter inch
- 0.40 in
- Dimension - Pad Width inch
- 0.50 in
- Dimension - Strip Length inch
- 1/2
- Dimension - Stud Size inch
- 1/4
- Dimension - Z inch
- 0.28 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.50 in
- Feature - Barrel Style
- Belled
- Feature - Barrel Type
- Standard
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL486;Military Specified (Mil-Spec)
- Insulation
- Y
- Insulation Type
- Nylon
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 10 lb.
- Package - GTIN - Package
- 30781810027685
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 500
- Package - Pack Description
- Package
- Package Quantity
- 500 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810027684
- Package - Total Units
- 500 EA
- Package Weight
- 10 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810027683
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1895.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- 90 Degree
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Features:Double thick tounge, Manufactured from one-piece pure electrolytic copper, Electro-tin plated, Color Coded, Nylon insulation is locked in place, 300 volt nylon insulation
- Standard
- UL486;Military Specified (Mil-Spec)
- Standard Package Quantity
- 500
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- TERMINALS, INSULUG
- Sub Class Code
- B57BKYF
- Trade Name
- INSULUG™
- Type
- YAEV-RS
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 0.50 in
