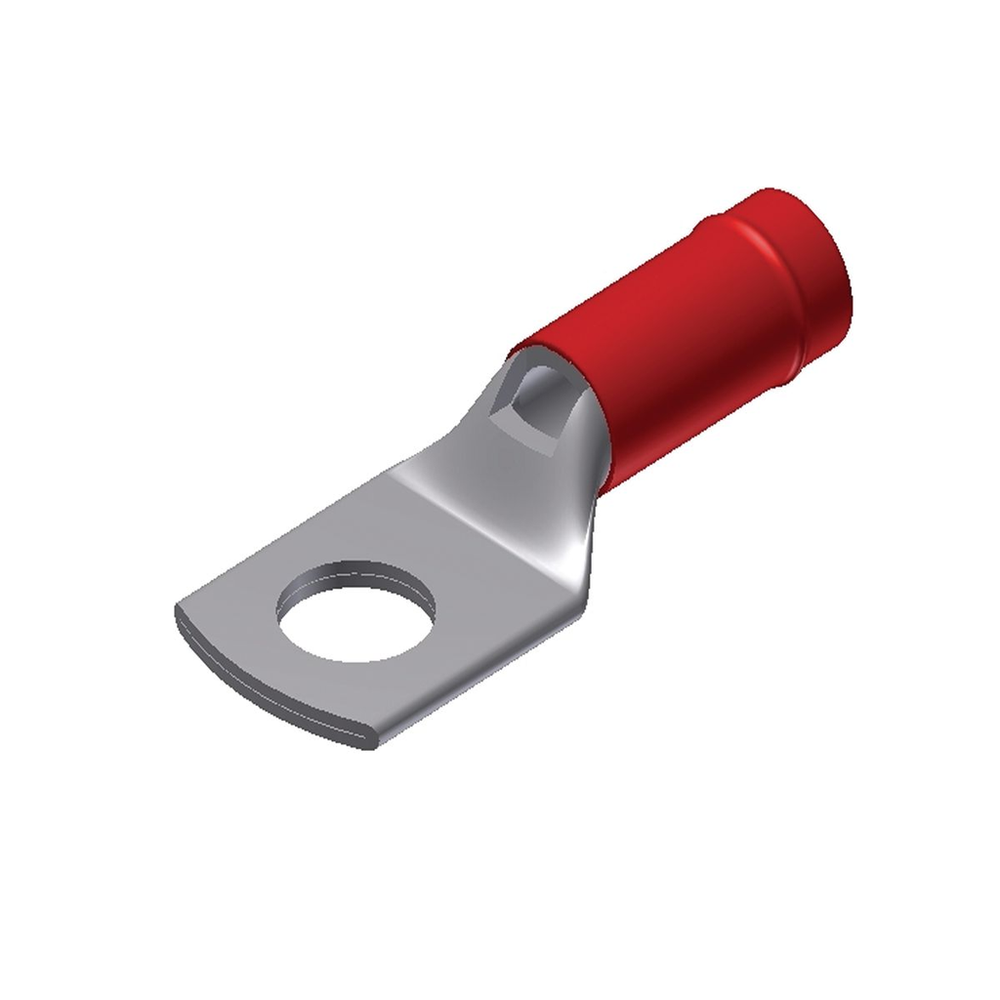

Burndy YAEV2CL1

Certifications

• CSA Approved
  • No
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 5.125x7.373x6.438 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 7.200 lb.
• Carton - Number of Sub Packs
  • 200
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810027509
• Carton - Total Units
  • 200
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810027500
• Class Code
  • B57
• Color Code
  • Red
• Conductor - Copper Str Aircraft Size
  • AN 2
• Conductor - Copper Str Aircraft Size Range
  • AN 2
• Conductor - Copper Str Size
  • 2
• Conductor Size
  • 2 AWG
• Conductor Type
  • CU C Solid-Size;CU C Str-Size
• Connector Type
  • Ring Terminal
• Country of Origin
  • US
• Description - Invoice
  • 2 AWG NYL HVYDTY RING 1/4,2.025 IN L
• Die Index
  • 438
• Dimension - B Length inch
  • 0.57 in
• Dimension - Bolt Size fraction
  • 1/4
• Dimension - Length Overall inch
  • 2.03 in
• Dimension - N inch
  • 0.34 in
• Dimension - Pad Width inch
  • 0.69 in
• Dimension - P inch
  • 0.18 in
• Dimension - Stud Size inch
  • 1/4
• Dimension - Z inch
  • 0.35 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.69 in
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8536904000
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL486;Military Specified (Mil-Spec)
• Insulation
  • Y
• Insulation Type
  • Nylon
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Package - Gross Weight per Pack
  • 7.2 lb.
• Package - GTIN - Package
  • 30781810027500
• Package Height
  • 4.5 in
• Package Length
  • 7.06 in
• Package - Number of Sub Packs
  • 200
• Package - Pack Description
  • Package
• Package Quantity
  • 200 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810027509
• Package - Total Units
  • 200 EA
• Package Weight
  • 7.2 lb.
• Package Width
  • 6.13 in
• Pallet - GTIN - Package
  • 70781810027508
• Pallet Height
  • 46.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 2176.200 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Type
  • Ring
• Plated
  • Y
• Plating Type
  • Tin
• Product Type
  • TERMINAL
• Special Features
  • Features: The INSULUG Type YAEV-L Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, Temperature Rating: 105 DEG C Maximum, Insulation Diameter (maximum): 0.459 IN, Wire Shroud: No, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29NC Tool, DEV2L Die Nest, Y29PLE Die Indentor, Finish: Electro-Tin Plated, Package: Bulk, Installation Tool: Non-Ratchet: MY28-6 Tool, Hydraulic: Y35, Y39 Tool With U2CET Die Set, Sae-as25036: -126, Conductor Type: Commercial/Military Stranded Copper, Color Code: Red, Wire Strip Length: 5/8 IN, Tongue Angle: Straight
• Standard
  • UL486;Military Specified (Mil-Spec)
• Standard Package Quantity
  • 200
• Standards - Industry Standards Met
  • UL486
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • N - Non-stock
• Sub Brand
  • INSULUG
• Sub Class Code
  • B57BKYF
• Trade Name
  • INSULUG™
• Type
  • YAEV-L, Heavy Duty
• UL Listed
  • Yes
• Voltage - Maximum
  • 600 V
• Width
  • 0.69 in
