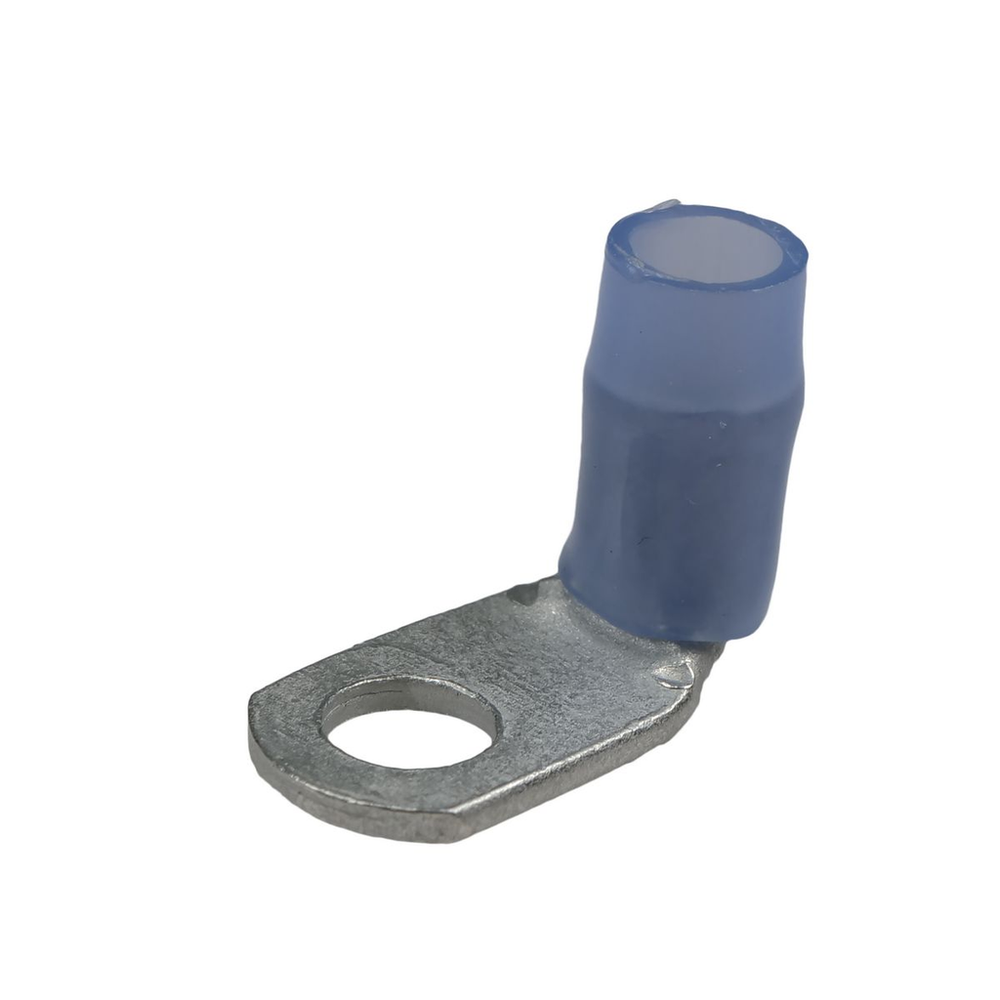

Burndy YAEV14R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
INSULUG™ Nylon Insulated Ring Terminal, Right Angle; Accommodates: #14 - #16 AWG; Stud: #6 - #8; Length: .40"; Width: .33"Nylon Right Angle Ring Terminal For 16 - 14 AWG
Burndy YAEV14R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Contact Manufacturer
- UL Recognized
- No
Specifications
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- BOX SIZE
- 4.625x4.313x4.313 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 3.000 lb.
- Carton - Number of Sub Packs
- 1000
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810459836
- Carton - Total Units
- 1000
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810459837
- Class Code
- B57
- Color Code
- Blue
- Conductor - Copper Solid Size
- 18 AWG;17 AWG;16 AWG;15 AWG;14 AWG
- Conductor - Copper Solid Size Range
- 18 AWG-14 AWG
- Conductor - Copper Str Size
- 18 AWG;16 AWG;14 AWG
- Conductor - Copper Str Size Range
- 18 AWG-14 AWG
- Conductor Size
- 16 - 14 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Description - Slang
- SM HYD NYLON RING
- Dimension - Bolt Size fraction
- #6 - #8
- Dimension - Hole Size inch
- 0.17 in
- Dimension - L Length Overall mm
- 0 mm
- Dimension - Pad Width inch
- 0.38 in
- Dimension - Stud Size inch
- 6-8 in
- Dimension - Thread Size
- -
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.33 in
- Feature - Barrel Style
- Belled
- Feature - Barrel Type
- Standard
- Finish Type
- Tin Plated Copper
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL486;Military Specified (Mil-Spec)
- Insulation
- Y
- Insulation Type
- Nylon
- Lead Time
- 12 wk
- Material
- Copper
- Package - GTIN - Package
- 30781810459837
- Package Quantity
- 1000 EA
- Package - Total Units
- 1000 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810459835
- Pallet Height
- 47.375 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1827.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Tongue Angle
- 90 Degree
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Standard Package Quantity
- 1000
- Standards - Industry Standards Met
- UL486;Military Specified (Mil-Spec)
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B57BKVF
- Trade Name
- INSULUG
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 0.33 in
