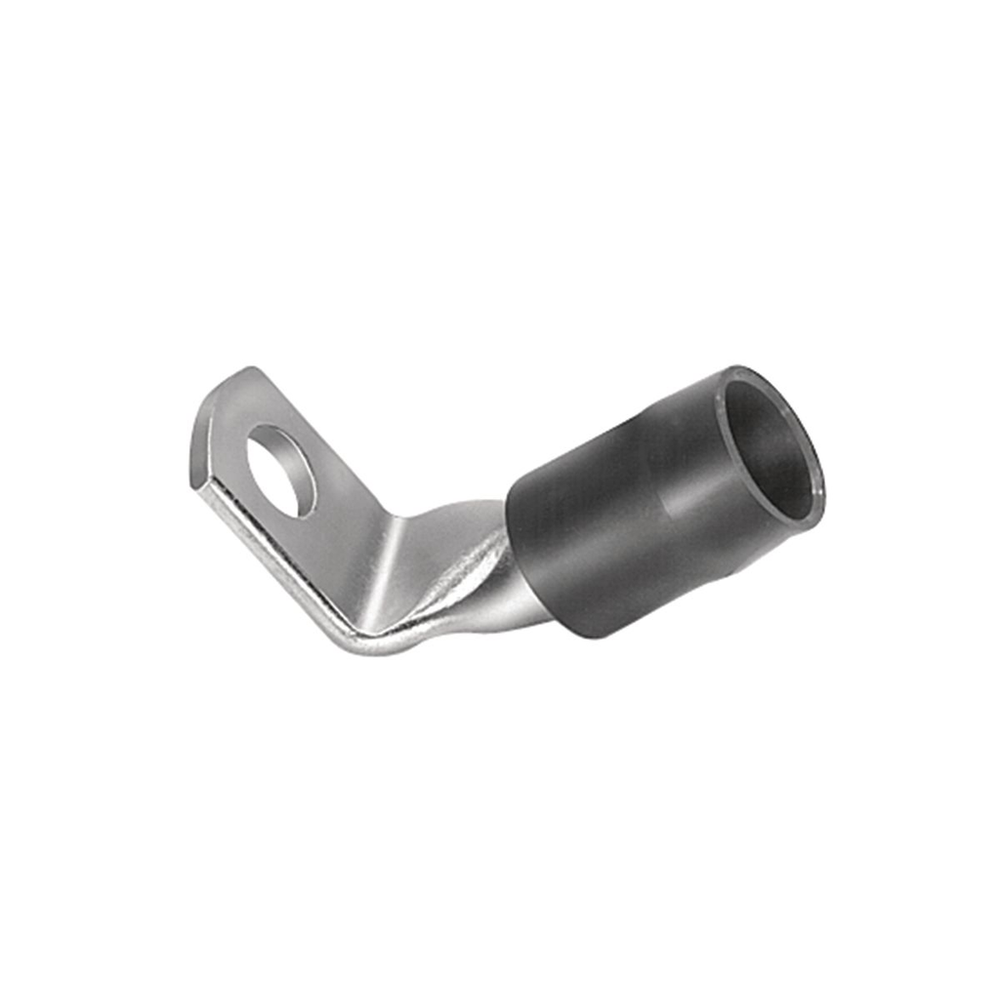

Burndy YAEV14R
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
INSULUG™ Nylon Insulated Ring Terminal, Right Angle; Accommodates: #14 - #16 AWG; Stud: #8 - #10; Length: .40"; Width: .33"Nylon Right Angle Ring Terminal For 16 - 14 AWG
Burndy YAEV14R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.625x4.313x4.313 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 3.000 lb.
- Carton - Number of Sub Packs
- 1000
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810082232
- Carton - Total Units
- 1000
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810082233
- Class Code
- B57
- Color Code
- Blue
- Conductor - Copper Solid Size
- 18 AWG;17 AWG;16 AWG;15 AWG;14 AWG
- Conductor - Copper Solid Size Range
- 18 AWG-14 AWG
- Conductor - Copper Str Size
- 18 AWG;16 AWG;14 AWG
- Conductor - Copper Str Size Range
- 18 AWG - 14 AWG
- Conductor Size
- 16 - 14 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Description - Invoice
- 8-14 RIGHT ANGLE, 12-14,
- Dimension - Bolt Size fraction
- #8 - #10
- Dimension - Hole Size inch
- 0.20 in
- Dimension - N inch
- 0.17 in
- Dimension - Pad Width inch
- 0.33 in
- Dimension - Stud Size inch
- 8-10 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.33 in
- Feature - Barrel Style
- Belled
- Feature - Barrel Type
- Standard
- Finish Type
- Tin Plated Copper
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL486;Military Specified (Mil-Spec)
- Insulation
- Y
- Insulation Type
- Nylon
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1000 EA
- Package - Gross Weight per Pack
- 3 lb.
- Package - GTIN - Package
- 30781810082233
- Package Height
- 4 in
- Package Length
- 4 in
- Package - Number of Sub Packs
- 1000
- Package - Pack Description
- Package
- Package Quantity
- 1000 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810082232
- Package - Total Units
- 1000 EA
- Package Weight
- 3 lb.
- Package Width
- 4 in
- Pallet - GTIN - Package
- 70781810082231
- Pallet Height
- 47.375 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1827.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- 90 Degree
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Features: Copper terminal Insulug, 14-16 AWG, 8-10, .40 IN L, 0.33 IN W, Tin Plated, 600 Volts Max.
- Standard
- UL486;Military Specified (Mil-Spec)
- Standard Package Quantity
- 1000
- Standards - Industry Standards Met
- UL486;Military Specified (Mil-Spec)
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- TERMINALS, INSULUG
- Sub Class Code
- B57BKVF
- Trade Name
- INSULUG™
- Type
- Terminal
- UL Listed
- No
- Voltage - Maximum
- 600 V
- Width
- 0.33 in
