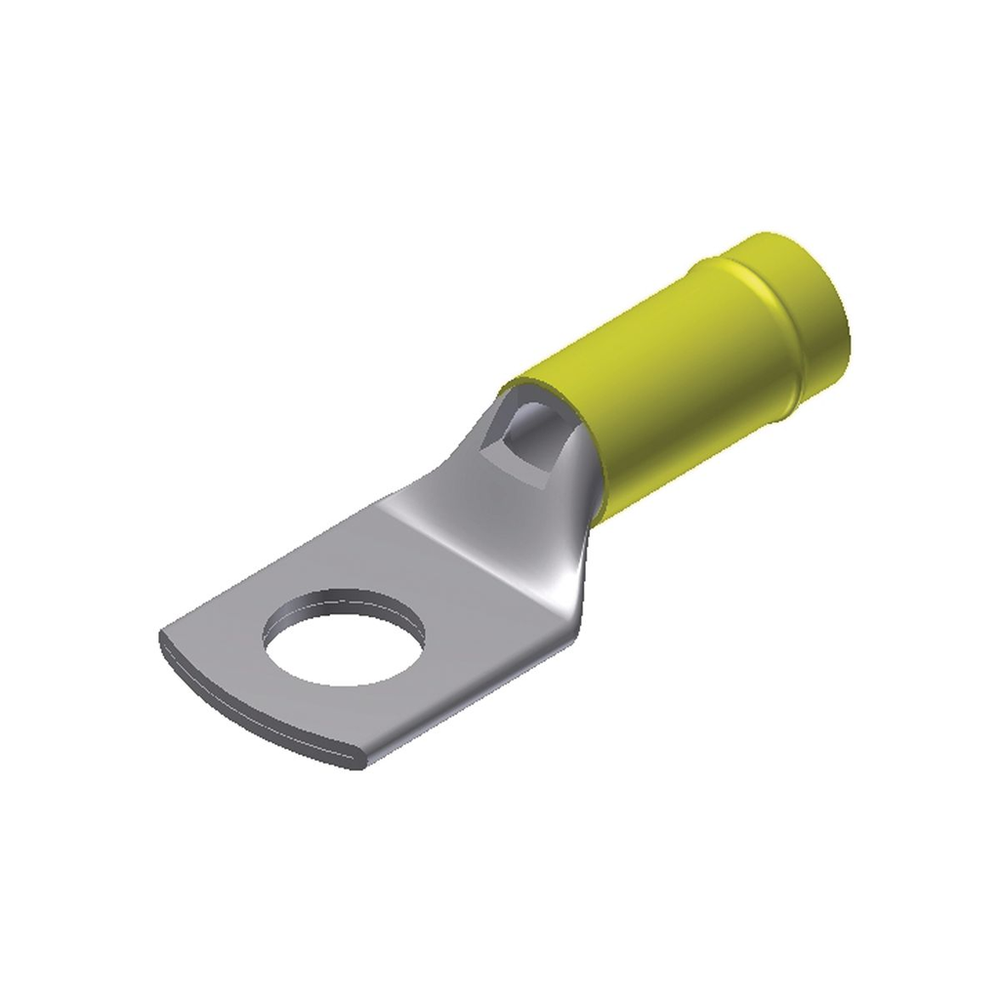

Burndy YAEV10T11

Certifications

• CSA Approved
  • No
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 4.625x4.313x4.313 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 3.500 lb.
• Carton - Number of Sub Packs
  • 500
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810027851
• Carton - Total Units
  • 500
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810027852
• Class Code
  • B57
• Color Code
  • Yellow
• Conductor - Copper Str Aircraft Size
  • AN 12;AN 10
• Conductor - Copper Str Aircraft Size Range
  • AN 12-AN 10
• Conductor - Copper Str Size
  • 12;10
• Conductor - Copper Str Size Range
  • 12 AWG - 10 AWG
• Conductor Size
  • 12 - 10 AWG
• Conductor Type
  • CU C Solid-Size;CU C Str-Size
• Connector Type
  • Ring Terminal
• Country of Origin
  • US
• Description - Invoice
  • 12-10 NYL. HVY DTY RING, #6-8 Stud
• Dimension - B Length fraction
  • 3/10 in
• Dimension - B Length inch
  • 0.30 in
• Dimension - Bolt Size fraction
  • #6 - #8
• Dimension - Hole Size fraction
  • 8/47
• Dimension - Hole Size inch
  • 0.17 in
• Dimension - Length Overall inch
  • 1.16 in
• Dimension - N inch
  • 0.19 in
• Dimension - Outside Diameter inch
  • 0.28 in
• Dimension - Pad Width inch
  • 0.37 in
• Dimension - P inch
  • 0.09 in
• Dimension - Stud Size inch
  • #6;#8
• Dimension - Z inch
  • 0.26 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.38 in
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8536904000
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL486;Military Specified (Mil-Spec)
• Insulation
  • Y
• Insulation Type
  • Nylon
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 500 EA
• Package - Gross Weight per Pack
  • 3.5 lb.
• Package - GTIN - Package
  • 30781810027852
• Package Height
  • 4.00 in
• Package Length
  • 4.00 in
• Package - Number of Sub Packs
  • 500
• Package - Pack Description
  • Package
• Package Quantity
  • 500 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810027851
• Package - Total Units
  • 500 EA
• Package Weight
  • 3.5 lb.
• Package Width
  • 4.00 in
• Pallet - GTIN - Package
  • 70781810027850
• Pallet Height
  • 47.375 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 2124.000 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Type
  • Ring
• Plated
  • Y
• Plating Type
  • Tin
• Product Type
  • TERMINAL
• Special Features
  • Features: The INSULUG Type YAEV Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, #10 wire only, Package: Bulk, Finish: Electro-Tin Plated, Wire Shroud: No, Insulation Diameter (maximum): 0.209 IN, Installation Tool: Ratchet: MR8D94, MR8-33T-1, M8ND Tool With N10ET-9 Die, MR4 10M, MR18 Tool, Temperature Rating: 105 DEG C Maximum, Conductor Type: Commercial/Military Stranded Copper, Color Code: Yellow, Wire Strip Length: 5/16 IN, Tongue Angle: Straight
• Standard
  • UL486;Military Specified (Mil-Spec)
• Standard Package Quantity
  • 500
• Standards - Industry Standards Met
  • UL486
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • INSULUG
• Sub Class Code
  • B57BKYF
• Trade Name
  • INSULUG™
• Type
  • YAEV, Heavy Duty
• UL Listed
  • Yes
• Voltage - Maximum
  • 600 V
• Width
  • 0.38 in
