Burndy YAEV10BOX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

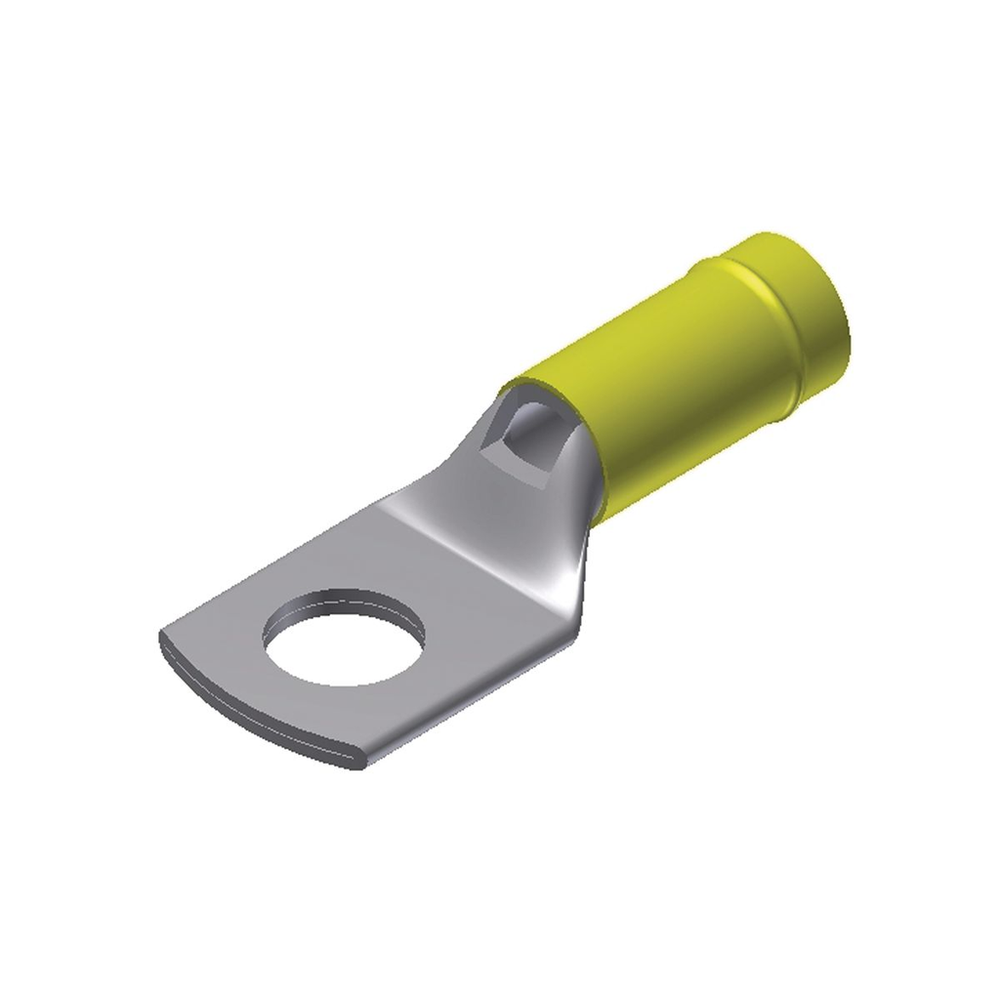

Ring Tongue Copper Tubing Terminal, 1.14 in L, .37 in W, Tin Plated, 600 Volts Max., 105 Deg C Max.Ring Tongue Copper Tubing Terminal, 1.16 in L, 0.37 in W, Tin Plated, 600 Volts Max., 105 Deg C Max.
Burndy YAEV10BOX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 2.492x2.996x3.236 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 0.350 lb.
- Carton - Number of Sub Packs
- 50
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810565254
- Carton - Total Units
- 50
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810565255
- Class Code
- B57
- Color Code
- Yellow
- Conductor - Copper Str Aircraft Size
- AN 12;AN 10
- Conductor - Copper Str Aircraft Size Range
- AN 12-AN 10
- Conductor - Copper Str Size
- 12 AWG;10 AWG
- Conductor - Copper Str Size Range
- 12 AWG-10 AWG
- Conductor Size
- 12 - 10 AWG
- Conductor Type
- CU C Str Aircraft-Size;CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Description - Invoice
- 12-10 NYL. HVY DTY RING,1.16 IN L
- Dimension - B Length fraction
- 3/10 in
- Dimension - B Length inch
- 0.30 in
- Dimension - Bolt Size fraction
- #8 - #10
- Dimension - Hole Size fraction
- 1/5
- Dimension - Hole Size inch
- 0.20 in
- Dimension - Length Overall inch
- 1.16 in
- Dimension - L Length Overall mm
- 29 mm
- Dimension - N inch
- 0.19 in
- Dimension - Outside Diameter inch
- 0.30 in
- Dimension - Pad Width inch
- 0.37 in
- Dimension - P inch
- 0.09 in
- Dimension - Strip Length inch
- 5/16
- Dimension - Stud Size inch
- #8;#10
- Dimension - Z inch
- 0.26 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.38 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL486;Military Specified (Mil-Spec)
- Insulation
- Y
- Insulation Type
- Nylon
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 50 EA
- Package - Gross Weight per Pack
- 0.35 lb.
- Package - GTIN - Package
- 30781810565255
- Package Height
- 2.43 in
- Package Length
- 3.25 in
- Package - Number of Sub Packs
- 50
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810565254
- Package - Total Units
- 50 EA
- Package Weight
- 0.35 lb.
- Package Width
- 3 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Features: The INSULUG Type YAEV Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, #10 wire only, Wire Shroud: No, Temperature Rating: 105 DEG C Maximum, Finish: Electro-Tin Plated, Insulation Diameter (maximum): 0.209 IN, Package: Box, Installation Tool: Ratchet: MR8D94, MR8-33-T1, M8ND Tool With N10ET-23 Die, MR4 10M, MR18 Tool, Conductor Type: Commercial/Military Stranded Copper, Color Code: Yellow, Wire Strip Length: 5/16 IN, Tongue Angle: Straight
- Standard
- UL486;Military Specified (Mil-Spec)
- Standard Package Quantity
- 50
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- INSULUG
- Sub Class Code
- B57BKXF
- Temperature Rating
- 105°C
- Trade Name
- INSULUG™
- Type
- YAEV, Heavy Duty
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 0.38 in
