Burndy YAES18N2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

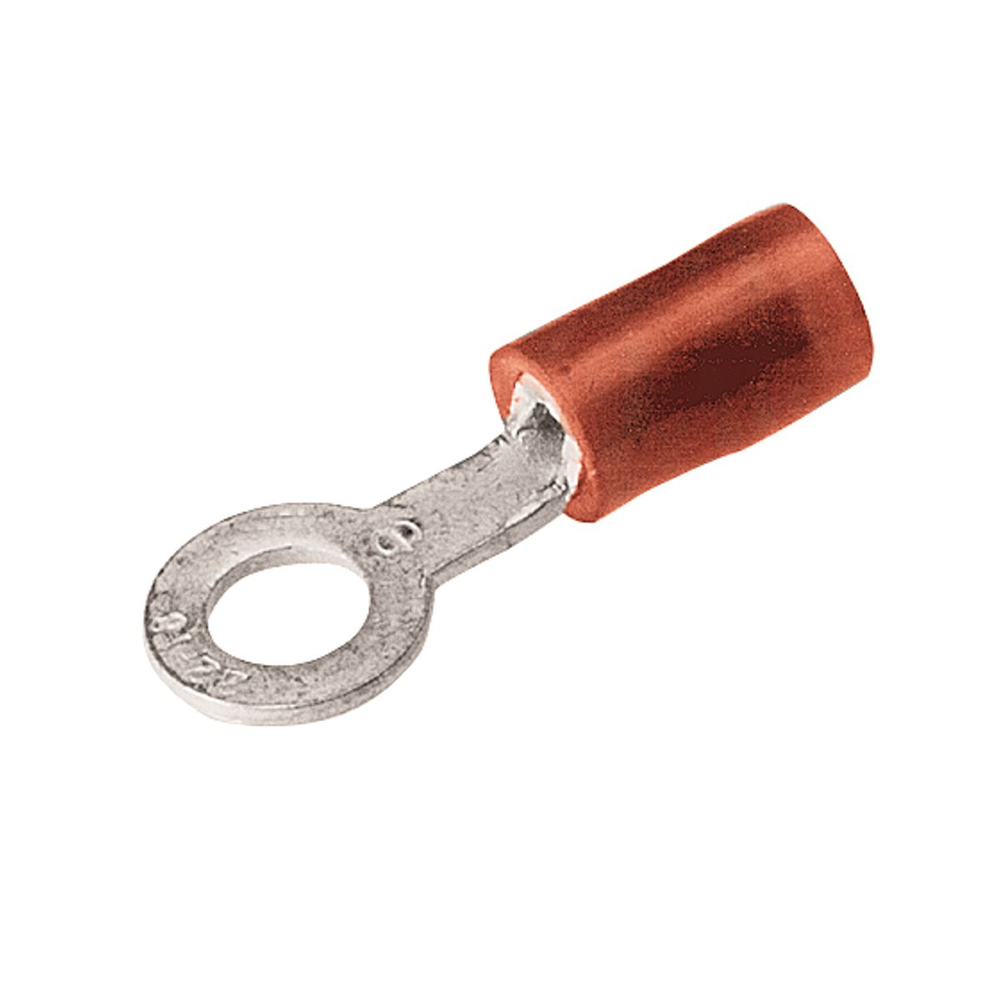

Nylon Ring Terminal For 22 - 18 AWG.Nylon Ring Terminal For 22 - 18 AWG
Burndy YAES18N2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- BOX SIZE
- 4.625x4.313x4.313 (in)
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Number of Sub Packs
- 1000
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810804872
- Carton - Total Units
- 1000
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810804873
- Certification Agency
- Proposition 65
- Class Code
- B57
- Color Code
- Red
- Conductor - Copper Str Size
- 22 AWG;20 AWG;18 AWG
- Conductor - Copper Str Size Range
- 22 AWG - 18 AWG
- Conductor Size
- 22 - 18 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Dimension - Bolt Size fraction
- #4 - #6
- Dimension - G inch
- 0.15 in
- Dimension - Length Overall inch
- 0.87 in
- Dimension - Outside Diameter inch
- 0.28 in
- Dimension - Stud Size inch
- #4 - #6
- Dimension - Width inch
- 0.25 in
- Feature - Barrel Style
- Skived
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL486;Military Specified (Mil-Spec)
- Insulation
- Y
- Insulation Type
- Nylon
- Lead Time
- 12 wk
- Material
- Copper
- Package - GTIN - Package
- 30781810804873
- Package Quantity
- 1000 EA
- Package - Total Units
- 1000 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810804871
- Pallet Height
- 47.375 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1827.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Standard Package Quantity
- 1000
- Standards - Industry Standards Met
- UL486;Military Specified (Mil-Spec)
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B57BKZF
- Trade Name
- INSULUG™
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
