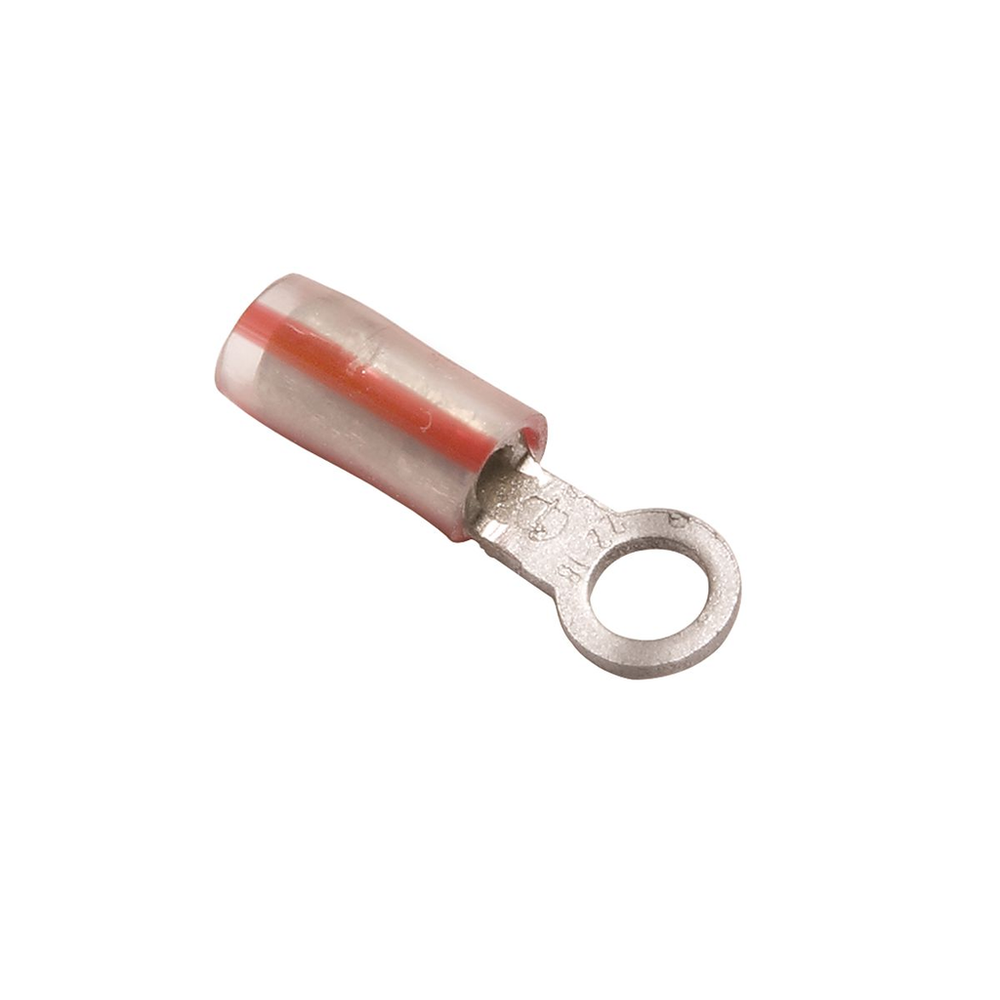

Burndy YAES18K1

Certifications

• CSA Approved
  • No
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Class 1E Critical Circuits And Non-Critical Nuclear Associated Applications
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 4.625x4.313x4.313 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 1.000 lb.
• Carton - Number of Sub Packs
  • 1000
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810810507
• Carton - Total Units
  • 1000
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810810508
• Certification Agency
  • Proposition 65
• Class Code
  • B57
• Color Code
  • Red
• Conductor - Copper Solid Size
  • 22 ;20 ;18 AWG
• Conductor - Copper Solid Size Range
  • 22 -18 AWG
• Conductor - Copper Str Size
  • 22 AWG;20 AWG;18 AWG
• Conductor - Copper Str Size Range
  • 22 AWG - 18 AWG
• Conductor Size
  • 22 - 18 AWG
• Conductor Type
  • CU C Str-Size;CU C Solid-Size
• Connector Type
  • Ring Terminal
• Country of Origin
  • US
• Description - Invoice
  • 22-18 NUCL INS RING 6,.755 IN L
• Dimension - Bolt Size fraction
  • #6
• Dimension - Hole Size fraction
  • 3/20
• Dimension - Hole Size inch
  • 0.15 in
• Dimension - Length Overall inch
  • 0.76 in
• Dimension - L Length Overall mm
  • 19 mm
• Dimension - Pad Width inch
  • 0.23 in
• Dimension - Strip Length inch
  • 7/32 in
• Dimension - Stud Size inch
  • #6
• Dimension - Z inch
  • 0.20 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.23 in
• Feature - Barrel Style
  • Belled
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8536904000
• Image Actual Or Representative
  • A
• Insulation
  • Y
• Insulation Type
  • Radiation Resistant
• Lead Time
  • 12 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 1000 EA
• Package - Gross Weight per Pack
  • 1 lb.
• Package - GTIN - Package
  • 30781810810508
• Package Height
  • 4 in
• Package Length
  • 4 in
• Package - Number of Sub Packs
  • 1000
• Package - Pack Description
  • Package
• Package Quantity
  • 1000 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810810507
• Package - Total Units
  • 1000 EA
• Package Weight
  • 1 lb.
• Package Width
  • 4 in
• Pallet - GTIN - Package
  • 70781810810506
• Pallet Height
  • 47.375 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 936.000 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Type
  • Ring
• Plated
  • Y
• Plating Type
  • Tin
• Product Type
  • TERMINAL
• Special Features
  • Features: The Type YAES-K, Radiation Resistant KYNAR Insulated Terminals Are Designed And Have Been Tested To Meet The Requirements For Class 1E Critical Circuits As Set By The Nuclear Regulatory Commission (NRC), Additional Testing For Compatibility Under Loss Of Coolant Accident (LOCA) Conditions With Cross-Link Polyethylene (XLP) And HYPALON Insulations Was Completed Successfully, Compatibility With Ethylene Propylene Rubber (EPR) Insulation Was Determined By Analysis, Each Terminal Is Manufactured Of Pure Electrolytic Copper Per QQ-C 576 And Bright Tin-Plated Per MIL-T-10727 And Meets Or Exceeds SAE-AS7928 Using Stranded Copper AWG Wire, The KYNAR Insulation Offers 200 Megarad Radiation Resistance, The Type YAES-K Radiation Resistant KYNAR - Insulated Terminals Are Suitable For Class 1E Critical Circuits And Non-Critical Nuclear Associated Applications, KYNAR Insulation: Provides 200 Megarad Radiation ResistancePlus Successfully Tested For Insulation Compatibility, An Integral One-Piece Copper Barrel/Insulation Grip And Wire Strain Relief Design: Provides Improved Physical Strength Characteristics Over A Multi-Piece Design, The KYNAR Insulation Is Locked In Place: The Insulation Will Not Move Or Twist Off, Thereby Maintains Proper Dielectric Values, Manufactured From Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Bright Tin-Plated Per Mil-T-10727: Provides Durable Long-Lasting Resistance To Corrosion,Smooth Funnel Entry: Easy Wire Insertion, Color Coded Terminals: Provides Easy Wire Size Identification And Inspection, Coded Raised Dots In The Die Area Of The Connection After Compression: Provides Visual Identification That The Correct Tool And Die Were Used For Proper Installation, Inspection Hole: Permits Visual Check For Proper Wire Insertion, Ring Tongue Design: Provides A Secure Termination Under Screw Head That Cannot Be Removed Without The Complete Removal Of The Screw
• Standard Package Quantity
  • 1000
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • N - Non-stock
• Sub Brand
  • INSULUG
• Sub Class Code
  • B57BLAF
• Trade Name
  • INSULUG™
• Type
  • Radiation Resistant KYNAR Ring Tongue
• UL Listed
  • No
• Voltage - Maximum
  • 600 V
• Width
  • 0.23 in
