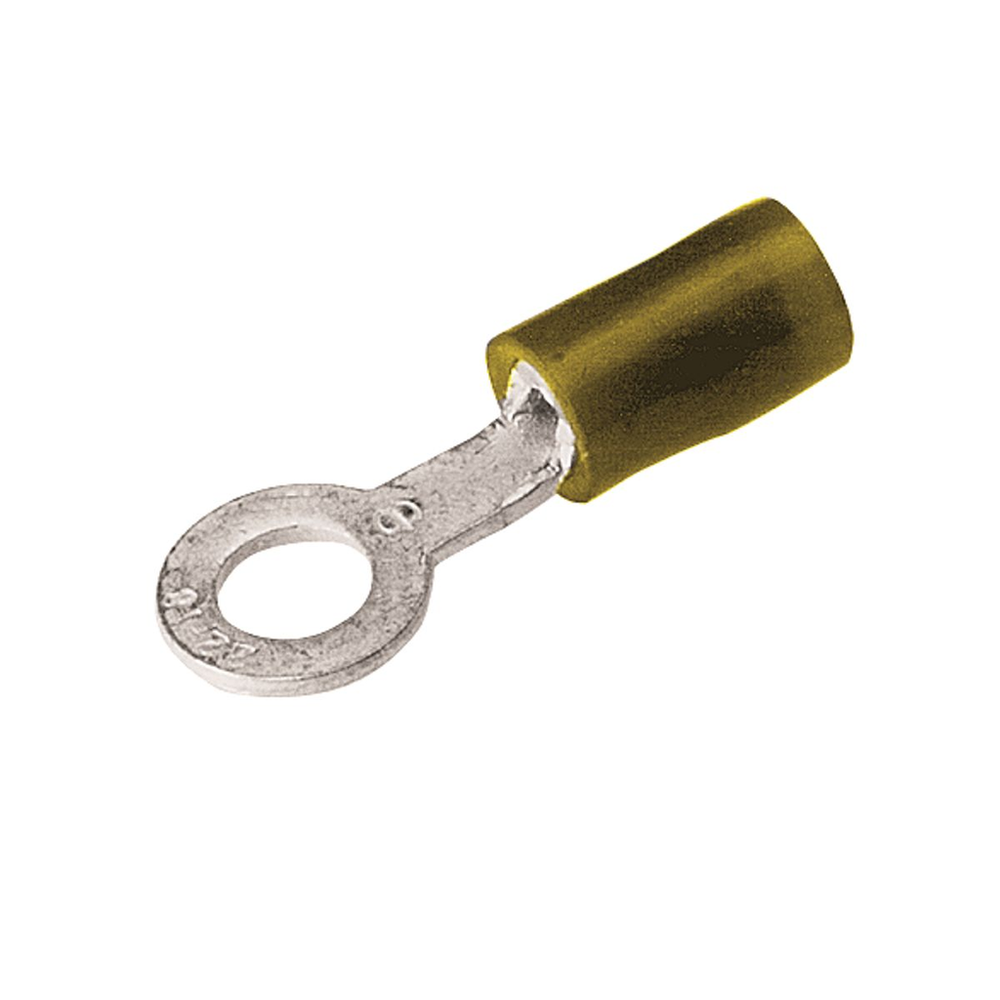

Burndy YAES10N13

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For use on copper compression connections
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 5.125x6.438x4.875 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 3.000 lb.
• Carton - Number of Sub Packs
  • 500
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810805060
• Carton - Total Units
  • 500
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810805061
• Class Code
  • B57
• Color Code
  • Yellow
• Conductor - Copper Str Size
  • 12 AWG;10 AWG
• Conductor - Copper Str Size Range
  • 12 AWG-10 AWG
• Conductor Size
  • 12 - 10 AWG
• Conductor Type
  • CU C Str-Size
• Connector Type
  • Ring Terminal
• Country of Origin
  • US
• Description - Invoice
  • 12-10 NYLON RING 5/16 ST,1.322 IN L
• Dimension - Bolt Size fraction
  • 5/16
• Dimension - G inch
  • 0.33 in
• Dimension - Hole Size inch
  • 0.33 in
• Dimension - Length Overall inch
  • 1.32 in
• Dimension - Pad Width inch
  • 0.53 in
• Dimension - Strip Length inch
  • 11/32 in
• Dimension - Stud Size inch
  • 5/16
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.54 in
• Feature - Barrel Style
  • Skived
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8536904000
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL486;Military Specified (Mil-Spec)
• Insulation
  • Y
• Insulation Type
  • Nylon
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 500 EA
• Package - Gross Weight per Pack
  • 3 lb.
• Package - GTIN - Package
  • 30781810805061
• Package Height
  • 4.5 in
• Package Length
  • 6.13 in
• Package - Number of Sub Packs
  • 500
• Package - Pack Description
  • Package
• Package Quantity
  • 500 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810805060
• Package - Total Units
  • 500 EA
• Package Weight
  • 3 lb.
• Package Width
  • 4.56 in
• Pallet - GTIN - Package
  • 70781810805069
• Pallet Height
  • 46.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 1437.000 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Type
  • Ring
• Plated
  • Y
• Plating Type
  • Tin - Electro Plated
• Product Type
  • TERMINAL
• Special Features
  • Features: An Integral One-Piece Copper Barrel/Insulation Grip And Wire Strain Relief Design: Provides Improved Physical Strength Characteristics Over A Multi-Piece Design, Manufactured Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Brazed Seam: Provides A Stronger Barrel Design To Minimize Any Possible Splitting And Eliminates Folding, Deep Inner Barrel Serrations: Provides Excellent Electrical Conductivity And Pullout Strength Values, Smooth Funnel Entry: Easy Wire Insertion, The Insulation Is Locked In Place: Will Not Twist Off, Thereby Maintains Proper Dielectric Values, Electro-Tin Plated: Provides Durable Long-Lasting Resistance To Corrosion, Color-Coded And Clearly Marked: Provides Quick, Easy Wire Size Identification, Ring Tongue: Provides A Secure Termination Under The Screw Head That Can Not Be Removed Without Complete Removal Of The Screw, Two Or More Terminals May Be Stacked On A Common Stud Easily: Provides Flexibility And Versatility, 300 V Maximum, 105 DEG C Maximum, Package: Bulk, Sae-as25036: -113, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: MR8-83 Tool, Insulation Diameter (maximum): 0.21 IN, Temperature Rating: 105 DEG C Maximum, Color Code: Yellow, Wire Strip Length: 11/32 IN, Wire Insulation Grip: No, Finish: Electro-Tin Plated
• Standard
  • UL486;Military Specified (Mil-Spec)
• Standard Package Quantity
  • 500
• Standards - Industry Standards Met
  • UL486
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • N - Non-stock
• Sub Brand
  • INSULUG
• Sub Class Code
  • B57BKZF
• Trade Name
  • INSULUG™
• Type
  • YAES
• UL Listed
  • Yes
• Voltage - Maximum
  • 600 V
• Width
  • 0.54 in
