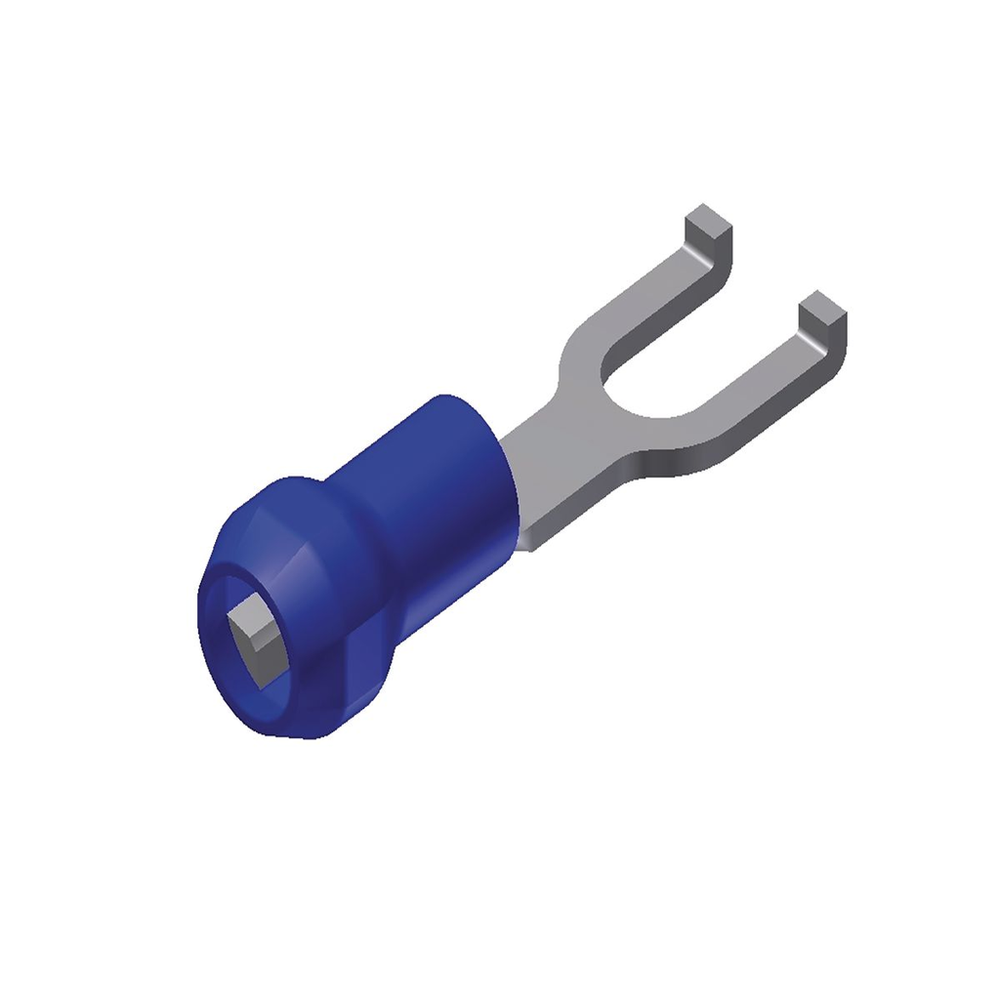

Burndy YAE14Z2
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Nylon Flanged Fork Terminal For 16 - 14 AWG.Nylon Flanged Fork Terminal For 16 - 14 AWG
Burndy YAE14Z2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Faster Installation While Maintaining Security If Supporting Screw Becomes Loose
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 3.000 lb.
- Carton - Number of Sub Packs
- 1000
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810804100
- Carton - Total Units
- 1000
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810804101
- Certification Agency
- Proposition 65
- Class Code
- B57
- Color Code
- Blue
- Conductor - Copper Str Aircraft Size Range
- AN16 - AN14
- Conductor - Copper Str Size Range
- 16 AWG - 14 AWG
- Conductor Size
- 16 - 14 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Flanged Fork Terminal
- Country of Origin
- US
- Description - Invoice
- 16-144-6 S
- Dimension - B Length fraction
- 4/25 in
- Dimension - B Length inch
- 0.16 in
- Dimension - Bolt Size fraction
- #4 - #6
- Dimension - Hole Size fraction
- 3/20
- Dimension - Hole Size inch
- 0.146 in
- Dimension - Length Overall inch
- 0.90 in
- Dimension - N inch
- 0.15 in
- Dimension - Pad Width inch
- 0.28 in
- Dimension - Strip Length inch
- 3/16 in
- Dimension - Stud Size inch
- #4 - #6
- Dimension - Z inch
- 0.25 in
- Each - Number of Sub Packs
- 1 EA
- Each - Pack Description
- Each
- Each - Width
- 0.28 in
- Feature - Barrel Style
- Shrouded
- Feature - Barrel Type
- Standard
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL486;Military Specified (Mil-Spec)
- Insulation
- Y
- Insulation Type
- Nylon
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 3 lb.
- Package - GTIN - Package
- 30781810804101
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 1000 EA
- Package - Pack Description
- Package
- Package Quantity
- 1000 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810804100
- Package - Total Units
- 1000 EA
- Package Weight
- 3 lb.
- Package Width
- 4.56 in
- Pallet - GTIN - Package
- 70781810804109
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1437.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Flanged Fork
- Plated
- Y
- Plating Type
- Electro Tin
- Product Type
- TERMINAL
- Special Features
- Features: INSULUG Type YAE-Z Is Identical To Type YAE-N And Employs A Flanged Fork Tongue For Faster Installation While Maintaining Security If Supporting Screw Becomes Loose, 300 V Maximum, 105 DEG C Max, Flanged Fork: Permits Rapid, Easy Installation Of The Terminal Under The Screw Head Without Complete Removal Of The Screw, Additionally, It May Not Be Removed With Only A Slight Loosening Of The Screw, Package: Bulk, Installation Tool: MR8-33T-1, M8ND Tool With One Of The Following Dies: N14HET-25V1, N10ET-9, N14HET-15, N10ET-23, Y10D, Y10-22 Tool, Insulation Diameter (maximum): 0.156 IN, Tape Mounted Catalog Number: YAE14Z2M, Wire Insulation Grip: Yes, Color Code: Blue, Temperature Rating: 105 DEG C Maximum, Finish: Electro-Tin Plated
- Standard
- UL486;Military Specified (Mil-Spec)
- Standard Package Quantity
- 1000
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- INSULUG
- Sub Class Code
- B57BL3F
- Temperature Rating
- 105° C
- Trade Name
- INSULUG™
- Type
- YAE-Z, Flanged
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 0.28 in
