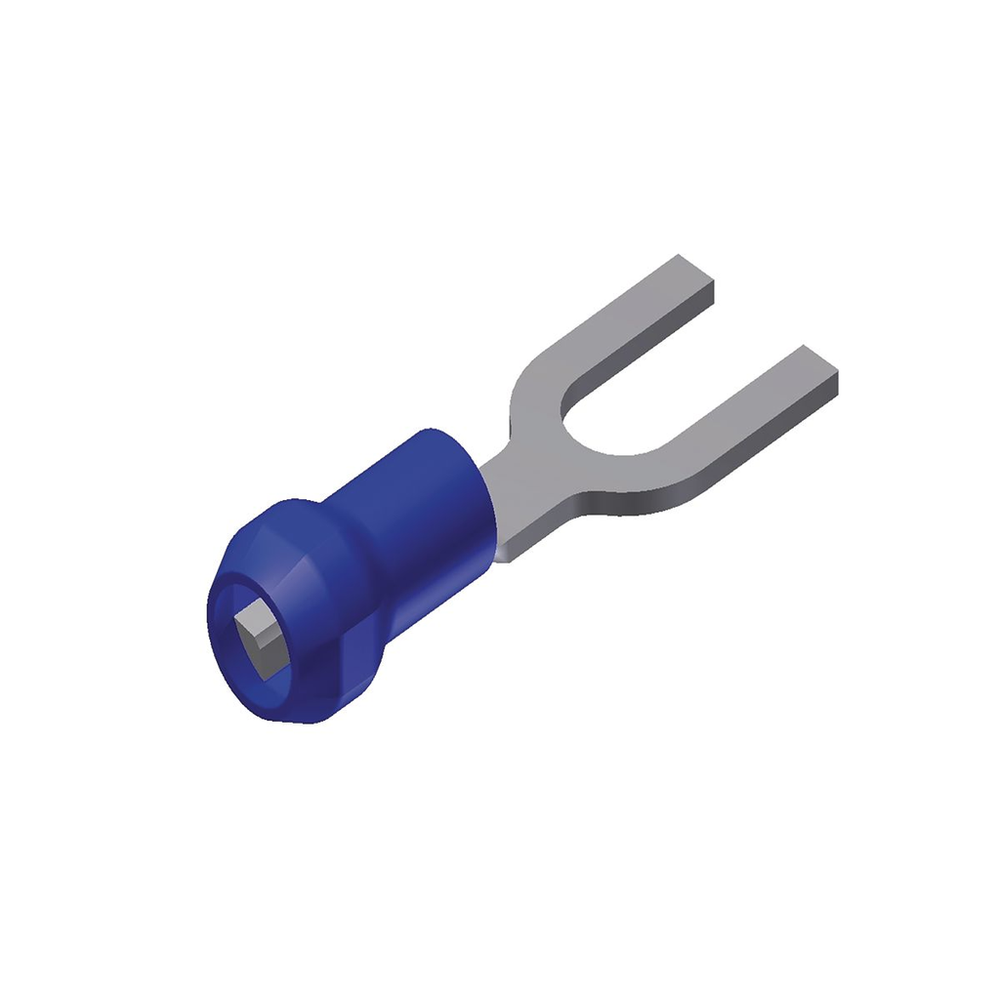

Burndy YAE14N77FBOX

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • Power Connector
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 0.000x0.000x0.000 (in)
• Buy American Compliant
  • Yes
• Cable Insulation Diameter Maximum
  • 0.156 in
• Carton - Gross Weight per Pack
  • 0.000 lb.
• Carton - Number of Sub Packs
  • 1200
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810563502
• Carton - Total Units
  • 1200 EA
• Case - Number of Sub Packs
  • 12 EA
• Case - Pack Description
  • Carton
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810563503
• Case - Total Units
  • 1200 EA
• Certification Agency
  • Proposition 65
• Class Code
  • B57
• Color Code
  • Blue
• Conductor - Copper Str Aircraft Size Range
  • AN16 - AN14
• Conductor - Copper Str Size Range
  • 16 AWG - 14 AWG
• Conductor Size
  • 16 - 14 AWG
• Conductor Type
  • CU C Str-Size
• Connector Type
  • Fork Terminal
• Country of Origin
  • US
• Description - Invoice
  • FORK- 16-14 AWG-NYL GRIP,JAR
• Dimension - B Length fraction
  • 4/25 in
• Dimension - B Length inch
  • 0.16 in
• Dimension - Bolt Size fraction
  • #6 - #8
• Dimension - Hole Size fraction
  • 8/47
• Dimension - Hole Size inch
  • 0.17 in
• Dimension - Length Overall inch
  • 0.96 in
• Dimension - L Length Overall mm
  • 24 mm
• Dimension - N inch
  • 0.17 in
• Dimension - Pad Width inch
  • 0.31 in
• Dimension - Strip Length inch
  • 3/16 in
• Dimension - Stud Size inch
  • #6 - #8
• Dimension - Z inch
  • 0.29 in
• Each - Number of Sub Packs
  • 1 EA
• Each - Pack Description
  • Each
• Each - Width
  • 0.31 in
• Feature - Barrel Style
  • Shrouded
• Feature - Barrel Type
  • Standard
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8536904000
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL486;Military Specified (Mil-Spec)
• Insulation
  • Y
• Insulation Type
  • Nylon
• Lead Time
  • 12 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 100 EA
• Package - Gross Weight per Pack
  • 0.2 lb.
• Package - GTIN - Package
  • 30781810563503
• Package Height
  • 4.25 in
• Package Length
  • 2.06 in
• Package - Number of Sub Packs
  • 100 EA
• Package - Pack Description
  • Package
• Package Quantity
  • 100 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810563502
• Package - Total Units
  • 100 EA
• Package Weight
  • 0.2 lb.
• Package Width
  • 2.06 in
• Pallet - GTIN - Package
  • 70781810563501
• Pallet Height
  • 44.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 623.400 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Type
  • Fork Terminal
• Plated
  • Y
• Plating Type
  • Electro Tin
• Product Type
  • TERMINAL
• Special Features
  • Features: INSULUG Type YAE-N-F Nylon Insulated Terminals Are Designed With A Multi-Finger Insulation Grip, Are Rated 105 DEG C And Are Supplied With A Fork Tongue For Easy Terminal Insertion And Removal, 300 V Maximum, Fork Tongue: Permits Rapid Easy Installation Of The Terminal Under The Screw Head Without Complete Removal Of The Screw, Tape Mounted Catalog Number: YAE14N77FM, Temperature Rating: 105 DEG C Maximum, Insulation Diameter (maximum): 0.156 IN, Installation Tool: Non-Ratchet: Y10D Or Y10-22 Tool, Ratchet: MR8-33T-1, M8ND Tool With One Of The Following Dies: N14HET-25V1, N10ET-9, N14HET-15, N10ET-23, Package: Box, Wire Strip Length: 3/16 IN, Color Code: Blue, Wire Insulation Grip: Yes, Finish: Electro-Tin Plated
• Standard
  • UL486;Military Specified (Mil-Spec)
• Standard Package Quantity
  • 100
• Standards - Industry Standards Met
  • UL486
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • N - Non-stock
• Sub Brand
  • INSULUG
• Sub Class Code
  • B57BL2F
• Temperature Rating
  • 105° C
• Trade Name
  • INSULUG™
• Type
  • YAE-N-F
• UL Listed
  • Yes
• Voltage - Maximum
  • 600 V
• Width
  • 0.31 in
