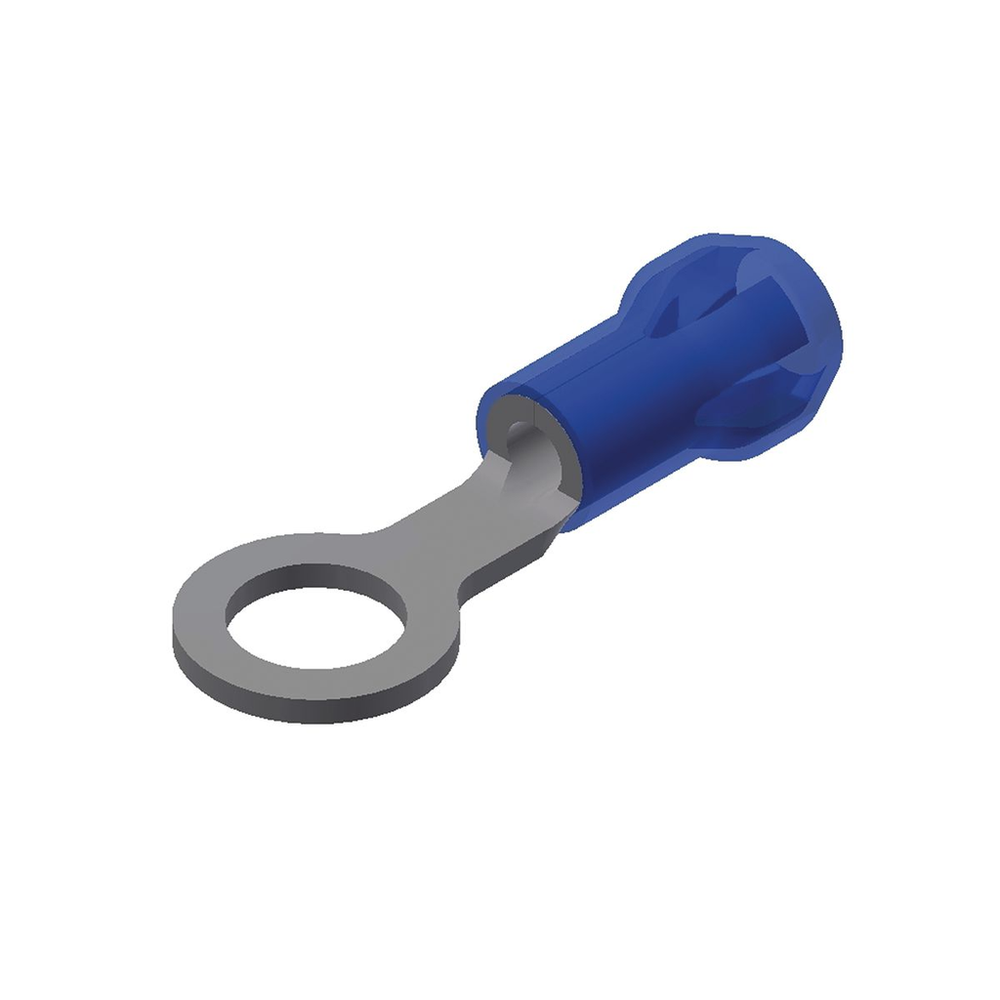

Burndy YAE14N1BOX

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Use On: 600 Volts Maximum, 105 Deg C Maximum
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 0.000x0.000x0.000 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 0.000 lb.
• Carton - Number of Sub Packs
  • 1200
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810563106
• Carton - Total Units
  • 1200 EA
• Case - Number of Sub Packs
  • 12
• Case - Pack Description
  • Case (ISO code = 'CA' for HEP)
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810563107
• Case - Total Units
  • 1200 EA
• Certification Agency
  • Proposition 65
• Class Code
  • B57
• Color Code
  • Blue
• Conductor - Copper Solid Size Range
  • 16 AWG-14 AWG
• Conductor - Copper Str Aircraft Size
  • AN 16;AN 14
• Conductor - Copper Str Size Range
  • 16 AWG - 14 AWG
• Conductor Size
  • 16 - 14 AWG
• Conductor Type
  • CU C Str-Size;CU C Solid-Size
• Connector Type
  • Ring Terminal
• Country of Origin
  • US
• Description - Invoice
  • RING-16- 14 AWG-NYLON,0.918 IN L
• Dimension - Bolt Size fraction
  • #6 - #8
• Dimension - Hole Size fraction
  • 8/47
• Dimension - Hole Size inch
  • 0.17 in
• Dimension - Length Overall inch
  • 0.92 in
• Dimension - L Length Overall mm
  • 23 mm
• Dimension - N inch
  • 0.16 in
• Dimension - Pad Width inch
  • 0.31 in
• Dimension - Strip Length inch
  • 3/16
• Dimension - Stud Size inch
  • #6;#8
• Dimension - Z inch
  • 0.28 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.31 in
• Feature - Barrel Style
  • Shrouded
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8536904000
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL486;Military Specified (Mil-Spec)
• Insulation
  • Y
• Insulation Type
  • Nylon
• Lead Time
  • 12 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 100 EA
• Package - Gross Weight per Pack
  • 0.3 lb.
• Package - GTIN - Package
  • 30781810563107
• Package Height
  • 4.25 in
• Package Length
  • 2.06 in
• Package - Number of Sub Packs
  • 100
• Package - Pack Description
  • Package
• Package Quantity
  • 100 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810563106
• Package - Total Units
  • 100 EA
• Package Weight
  • 0.3 lb.
• Package Width
  • 2.06 in
• Pallet - GTIN - Package
  • 70781810563105
• Pallet Height
  • 44.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 912.600 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Type
  • Ring
• Plated
  • Y
• Plating Type
  • Tin
• Product Type
  • TERMINAL
• Special Features
  • Features: INSULUG Type YAE-N Nylon Insulated Terminals Are Designed With A Multi finger Insulation Grip For Paper, EPR And Other Elastic Or Hard To Grip Insulations, The Metal Fingers Firmly Grip The Insulation Providing Superior Holding Characteristics, Cable Support And Strain Relief, Type YAE-N Terminals Are Rated 105 DEG C And Meet Military Standard AS25036 Class 2 And SAE-AS7928 Requirements, Multi-Finger Insulation Grip: Provides Superior Insulation Holding Characteristics, Especially On EPR And Other Elastic-Type Insulations, Brazed Seam: Provides Stronger More Durable Termination, Manufactured Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove, Inner Barrel Serrations: Provide Optimum Conductivity, Reliability, And Holding Power, Smooth Funnel Entry: Easy Wire Insertion, 300 V Maximum, Sae-as25036: -153, Package: Box, Installation Tool: MR8-1A, MR8-33T-1 Tool (No Extra Dies Required), M8ND Tool With One Of The Following Dies: N14HET-25V1, N10ET-9, N14HET-15, N10ET-23, Y10D, Y10-22 Tool, Insulation Diameter (maximum): 0.156 IN, Tape Mounted Catalog Number: YAE18N1M, Temperature Rating: 105 DEG C Maximum, Wire Strip Length: 3/16 IN, Color Code: Blue, Finish: Electro-Tin Plated, Wire Insulation Grip: Yes
• Standard
  • UL486;Military Specified (Mil-Spec)
• Standard Package Quantity
  • 100
• Standards - Industry Standards Met
  • UL486
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • N - Non-stock
• Sub Brand
  • INSULUG
• Sub Class Code
  • B57BKWF
• Temperature Rating
  • 105°C
• Trade Name
  • INSULUG™
• Type
  • YAE-N
• UL Listed
  • Yes
• Voltage - Maximum
  • 600 V
• Width
  • 0.31 in
