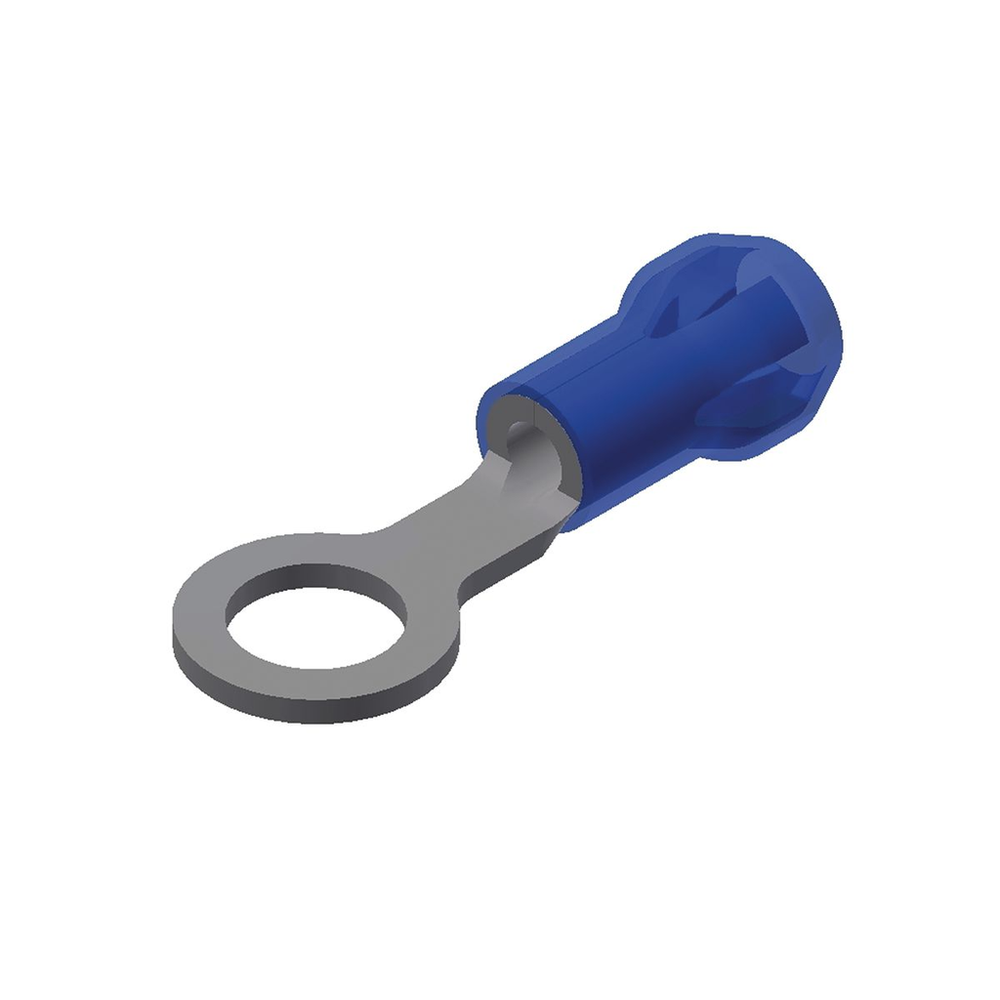

Burndy YAE14N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper Terminal, Ring Tongue w/o Inspection Hole, Wire Range 16-14 AWG, #8-#10 Stud, Nylon Insulated, Tin Plated, 600 Volts Max.Nylon Ring Terminal For 16 - 14 AWG
Burndy YAE14N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For use on copper compression connections
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Yes
- Cable Insulation Diameter Maximum
- 0.156 in
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Number of Sub Packs
- 1000
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810804476
- Carton - Total Units
- 1000
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810804477
- Class Code
- B57
- Color Code
- Blue
- Conductor - Copper Str Size Range
- 16 AWG - 14 AWG
- Conductor Size
- 16 - 14 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Description - Invoice
- 16-14 NYLON RING 8-10 ST
- Dimension - B Length fraction
- 1/4 in
- Dimension - B Length inch
- 0.25 in
- Dimension - Bolt Size fraction
- #8 - #10
- Dimension - Hole Size fraction
- 1/5
- Dimension - Hole Size inch
- 0.20 in
- Dimension - Length Overall inch
- 0.92 in
- Dimension - L Length Overall mm
- 23 mm
- Dimension - N inch
- 0.16 in
- Dimension - Pad Width inch
- 0.31 in
- Dimension - Strip Length inch
- 3/16 in
- Dimension - Stud Size inch
- #8 - #10
- Dimension - Z inch
- 0.28 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.31 in
- Feature - Barrel Style
- Shrouded
- Feature - Barrel Type
- Standard
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL486;Military Specified (Mil-Spec)
- Insulation
- Y
- Insulation Type
- Nylon
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1000 EA
- Package - Gross Weight per Pack
- 2 lb.
- Package - GTIN - Package
- 30781810804477
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 1000
- Package - Pack Description
- Package
- Package Quantity
- 1000 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810804476
- Package - Total Units
- 1000 EA
- Package Weight
- 2 lb.
- Package Width
- 4.56 in
- Pallet - GTIN - Package
- 70781810804475
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 973.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Ring Terminal
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Features: INSULUG Type YAE-N Nylon Insulated Terminals Are Designed With A Multi finger Insulation Grip For Paper, EPR And Other Elastic Or Hard To Grip Insulations, The Metal Fingers Firmly Grip The Insulation Providing Superior Holding Characteristics, Cable Support And Strain Relief, Type YAE-N Terminals Are Rated 105 DEG C And Meet Military Standard AS25036 Class 2 And SAE-AS7928 Requirements, Multi-Finger Insulation Grip: Provides Superior Insulation Holding Characteristics, Especially On EPR And Other Elastic-Type Insulations, Brazed Seam: Provides Stronger More Durable Termination, Manufactured Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove, Inner Barrel Serrations: Provide Optimum Conductivity, Reliability, And Holding Power, Smooth Funnel Entry: Easy Wire Insertion, 300 V Maximum, Package: Bulk, Temperature Rating: 105 DEG C Maximum, Installation Tool: MR8-1A, MR8-33T-1 Tool (No Extra Dies Required), M8ND Tool With One Of The Following Dies: N14HET-25V1, N10ET-9, N14HET-15, N10ET-23, Y10D, Y10-22 Tool, Tape Mounted Catalog Number: YAE18NM, Sae-as25036: -108, Insulation Diameter (maximum): 0.156 IN, Color Code: Blue, Wire Strip Length: 3/16 IN, Finish: Electro-Tin Plated, Wire Insulation Grip: Yes
- Standard
- UL486;Military Specified (Mil-Spec)
- Standard Package Quantity
- 1000
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- INSULUG
- Sub Class Code
- B57BKZF
- Temperature Rating
- 105° C
- Trade Name
- INSULUG™
- Type
- YAE-N
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 0.31 in
