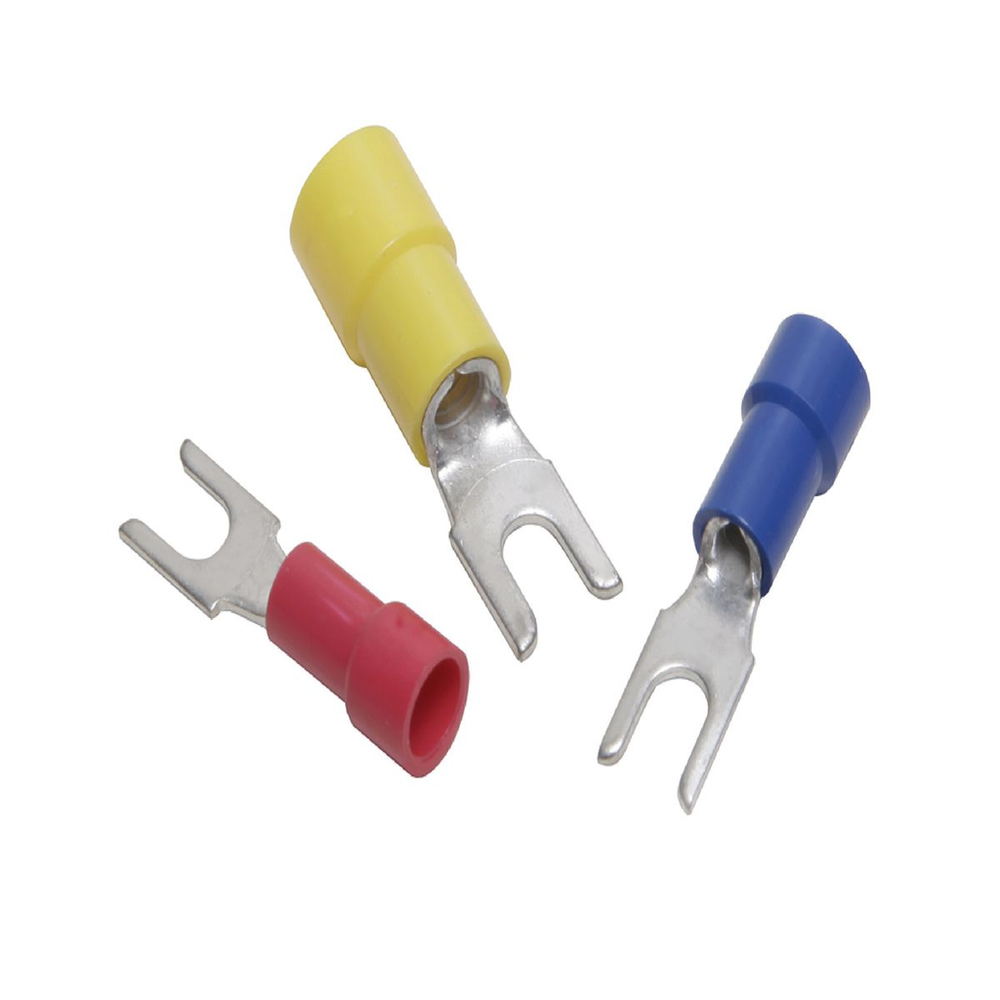

Burndy YAE10N111BFBOX
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Block Fork (Brazed Seam), 12 AWG - 10 AWG, 6-8, 1.02 in L.Block Fork (Brazed Seam), 12 AWG - 10 AWG, 6-8, 1.02 in L
Burndy YAE10N111BFBOX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Power Connector
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810524428
- Carton - Total Units
- 100 EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810524429
- Class Code
- B57
- Conductor - Copper Str Size Range
- 12 AWG - 10 AWG
- Conductor Size
- 12 - 10 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Block Fork Terminal
- Country of Origin
- US
- Description - Invoice
- 12-10 3-pc N/I8 Block
- Dimension - Bolt Size fraction
- #6 - #8
- Dimension - Length Overall inch
- 1.02 in
- Dimension - L Length Overall mm
- 26 mm
- Dimension - Pad Width inch
- 0.33 in
- Dimension - Strip Length inch
- 3/8
- Dimension - Stud Size inch
- #6 - #8
- Dimension - Z inch
- 0.29 in
- Each - Number of Sub Packs
- 1 EA
- Each - Pack Description
- Each
- Each - Width
- 0.33 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Insulation
- Y
- Insulation Type
- Nylon
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 0.15 lb.
- Package - GTIN - Package
- 30781810524429
- Package Height
- 4 in
- Package Length
- 3 in
- Package - Number of Sub Packs
- 50 EA
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810524428
- Package - Total Units
- 50 EA
- Package Weight
- 0.15 lb.
- Package Width
- 3 in
- Physical Attribute - Tongue Type
- Fork
- Plated
- Y
- Plating Type
- Unplated
- Product Type
- TERMINAL
- Special Features
- Features: INSULUG Type YAE-N Nylon Insulated Terminals Are Designed With A Multi finger Insulation Grip For Paper, EPR And Other Elastic Or Hard To Grip Insulations, The Metal Fingers Firmly Grip The Insulation Providing Superior Holding Characteristics, Cable Support And Strain Relief, Type YAE-N Terminals Are Rated 105 DEG C And Meet Military Standard AS25036 Class 2 And SAE-AS7928 Requirements, Multi-Finger Insulation Grip: Provides Superior Insulation Holding Characteristics, Especially On EPR And Other Elastic-Type Insulations, Brazed Seam: Provides Stronger More Durable Termination, Manufactured Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove, Inner Barrel Serrations: Provide Optimum Conductivity, Reliability, And Holding Power, Smooth Funnel Entry: Easy Wire Insertion, 300 V Maximum, Package: 3 Piece/Box
- Standard Package Quantity
- 50
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- INSULUG
- Sub Class Code
- B57BL2F
- Trade Name
- INSULUG™
- Type
- YAE-N
- UL Listed
- No
- Voltage - Maximum
- 600 V
- Width
- 0.33 in
