Burndy YAD36M12E12
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

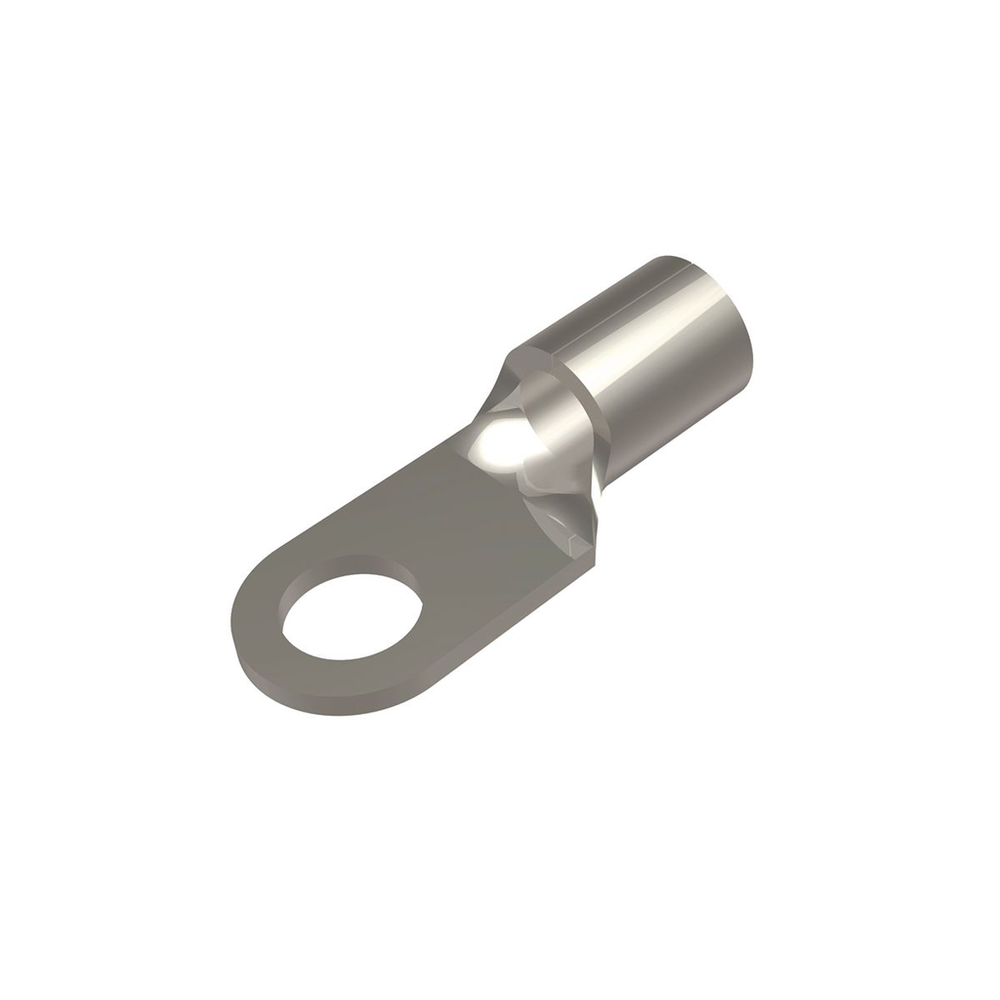

Uninsulated Ring Terminal For 500 - 600 kcmil.Uninsulated Ring Terminal For 500 - 600 kcmil
Burndy YAD36M12E12 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- No
- UL Recognized
- No
Specifications
- Application
- The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- No
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 50
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810549315
- Carton - Total Units
- 50 EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810549316
- Certification Agency
- Proposition 65
- Class Code
- B57
- Conductor - Copper Str Size
- 500 kcmil;550 kcmil;600 kcmil
- Conductor - Copper Str Size Range
- 500 kcmil - 600 kcmil
- Conductor Type
- CU C Str-Size;CU C Flex-Size
- Connector Type
- Ring Terminal
- Country of Origin
- TW
- Description - Invoice
- 500-600KCM FLX 1/2 STUD
- Dimension - B Length inch
- 1.38 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - Hole Size inch
- 0.51 in
- Dimension - Length Overall inch
- 3.77 in
- Dimension - L Length Overall mm
- 96 mm
- Dimension - Outside Diameter inch
- 1.44 in
- Dimension - Pad Width inch
- 1.97 in
- Dimension - Strip Length inch
- 1-1/2
- Dimension - Stud Size inch
- 1/2
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.97 in
- Feature - Barrel Type
- Long
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 5 EA
- Package - Gross Weight per Pack
- 2.7 lb.
- Package - GTIN - Package
- 30781810549316
- Package Height
- 4.50 in
- Package Length
- 5.75 in
- Package - Number of Sub Packs
- 5
- Package - Pack Description
- Package
- Package Quantity
- 5 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810549315
- Package - Total Units
- 5 EA
- Package Weight
- 2.7 lb.
- Package Width
- 3.75 in
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Features:Terminals utilize a brazed seam, Provide execellent high conductivity connections, Electro-tin plated for durable long lasting corrosion resistance, Vibration resistance and tensile strength is well within the limits of commercial specificatoins
- Standard
- UL467
- Standard Package Quantity
- 5
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- TERMINALS, HYLUG
- Sub Class Code
- B57BK8F
- Trade Name
- HYLUG™
- Type
- Ring Tongue
- UL Listed
- No
- Voltage - Maximum
- 600 V
- Width
- 1.97 in
