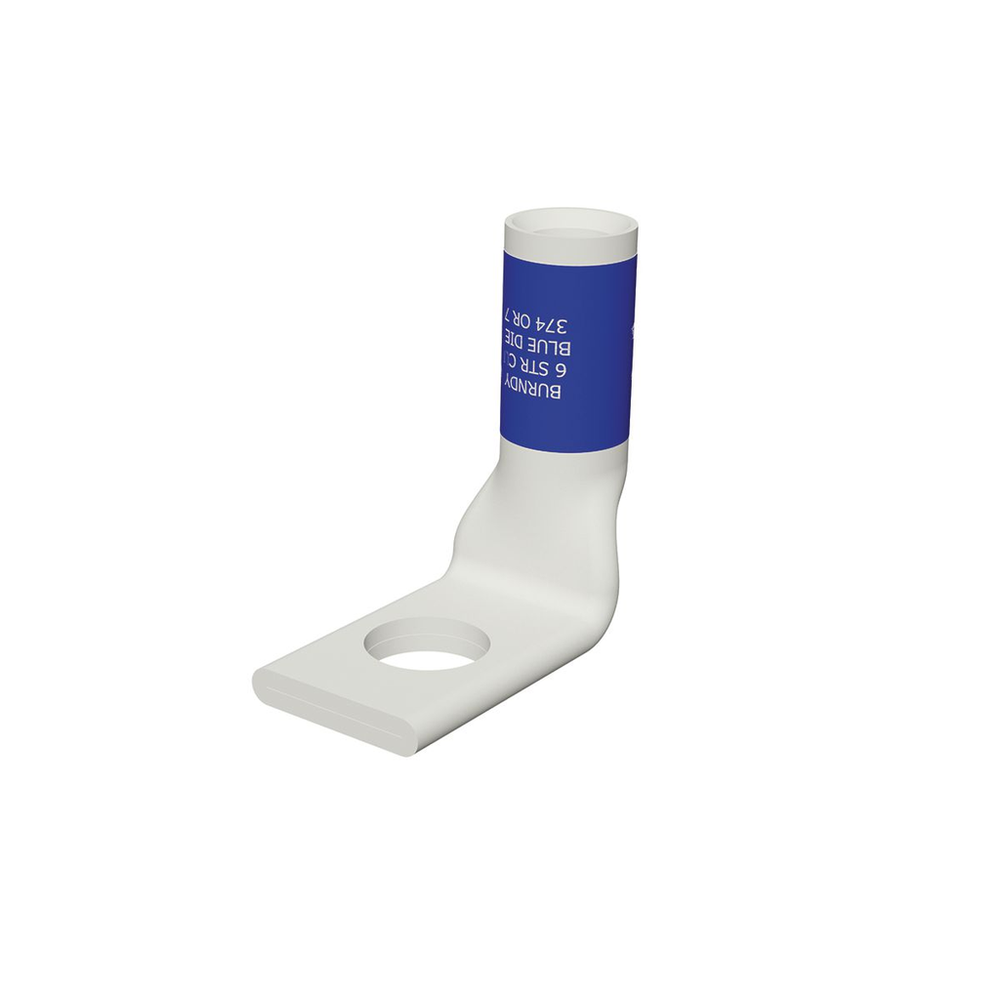

Burndy YA6CL90
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cu Comp Terminal Code Cond, Bvl Entry, 1 Hole W/InspWindow, #6 AWG Str Code, 600 V-35 kV, 1/4" Stud, 90 Deg Bend, Standard Barrel, Tin Plated, Blue, 7 or 374 Index.Cu Comp Terminal Code Cond, Bvl Entry, 1 Hole W/InspWindow, #6 AWG Str Code, 600 V-35 kV, 1/4" Stud, 90 Deg Bend, Standard Barrel, Tin Plated, Blue, 7 or 374 Index.
Burndy YA6CL90 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Wire Termination
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 2.492x2.996x3.236 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 2.100 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810019580
- Carton - Total Units
- 100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810019581
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Blue
- Conductor - Copper Str Size
- 6 AWG
- Conductor - Copper Str Size Range
- 6 AWG
- Conductor - Material
- COPPER
- Conductor Size
- 6 AWG
- Conductor Type
- CODE
- Connector Type
- STANDARD BARREL
- Country of Origin
- US
- Description - Invoice
- CU HYLUG- 6STR-1/4-90DEG
- Description - Slang
- CU TERM CODE STD BBL TN
- Die Index
- 7
- Dimension - B Length fraction
- 9/16 in
- Dimension - B Length inch
- 0.54 in
- Dimension - Bolt Size fraction
- 1/4
- Dimension - Bolt Size inch
- 0.25
- Dimension - D inch
- 0.58 in
- Dimension - Height inch
- 0.91 in
- Dimension - Hole Size fraction
- 1/4
- Dimension - Hole Size inch
- 0.27
- Dimension - Hole Size mm
- 6.9 mm
- Dimension - Length Overall inch
- 0.81 in
- Dimension - L Length Overall mm
- 21 mm
- Dimension - N inch
- 0.25 in
- Dimension - Outside Diameter inch
- 0.29 in
- Dimension - Pad Width inch
- 0.45 in
- Dimension - Strip Length inch
- 7/8
- Dimension - Stud Size fraction
- 1/4
- Dimension - Stud Size inch
- 1/4
- Dimension - Z inch
- 0.33 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.45 in
- Feature - Barrel Style
- Chamfered;Skived
- Feature - Barrel Type
- Standard
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- COPPER
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 2.1 lb.
- Package - GTIN - Package
- 30781810019581
- Package Height
- 2.43 in
- Package Length
- 3.25 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810019580
- Package - Total Units
- 100 EA
- Package Weight
- 2.1 lb.
- Package Width
- 3 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- 90 Degree
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Special Features
- UL Listed 90 DEG C, 600 V - 35 KV, Tongue Angle: 90 DEG Angle
- Standard
- UL 486A-486B
- Standard Package Quantity
- 100
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- TERMINALS, HYLUG
- Sub Class Code
- B55BH0F
- Temperature Rating
- 194
- Trade Name
- HYLUG™
- Type
- Standard Barrel, Tin Plated
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
- Width
- 0.45 in
