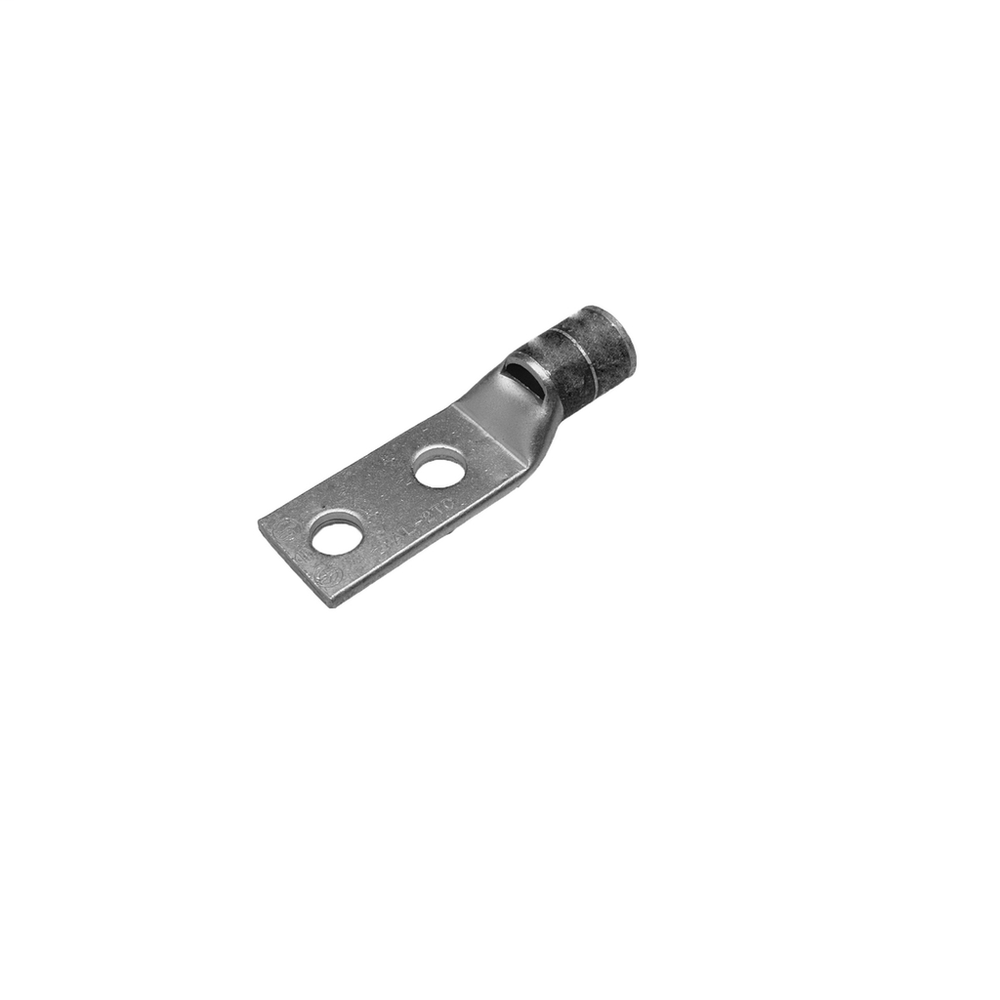

Burndy YA6CL2TC14E
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper Compression Lug, 2 Hole w/ Inspection Window, 6 AWG, 1/4" Stud, 1/2" Stud Hole Spacing, Short Barrel, Tin - Electro Plated.Non-insulated; Tin Plated YA6CL2TC14E
Burndy YA6CL2TC14E is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - Industry Standards Met
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - Copper Solid Size
- 6 AWG
- Conductor - Copper Str Size
- 6 AWG
- Conductor - Material
- Copper
Dimensions
- Dimension - B Length fraction
- 9/16 in
- Dimension - B Length inch
- 0.54 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size inch
- 0.27 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 1.94 in
- Dimension - L Length Overall mm
- 49 mm
- Dimension - N inch
- 0.31 in
- Dimension - Outside Diameter inch
- 0.29 in
- Dimension - Pad Width inch
- 0.45 in
- Dimension - Strip Length inch
- 5/8 in
- Dimension - Stud Size inch
- 1/4 in
- Dimension - Z inch
- 0.33 in
- Physical Attribute - Tongue Angle
- Straight
Electrical Ratings
- Rating - KVA
- 35 kV
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 35000
General
- Application
- For Flex Conductor
- Color Code
- Blue
- Connector Type
- Terminal
- Die Index
- 7;374
- Feature - Barrel Type
- Standard
- Material
- Copper
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Type
- Standard
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Sub Brand
- HYLUG
- Trade Name
- HYLUG™
- Type
- Standard Barrel, Tin Plated
- UPC
- 781810161807
- UPC 12 Digit
- 7818101618077
Logistics
- Minimum Pack Quantity
- 1
