Burndy YA4C2L3
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

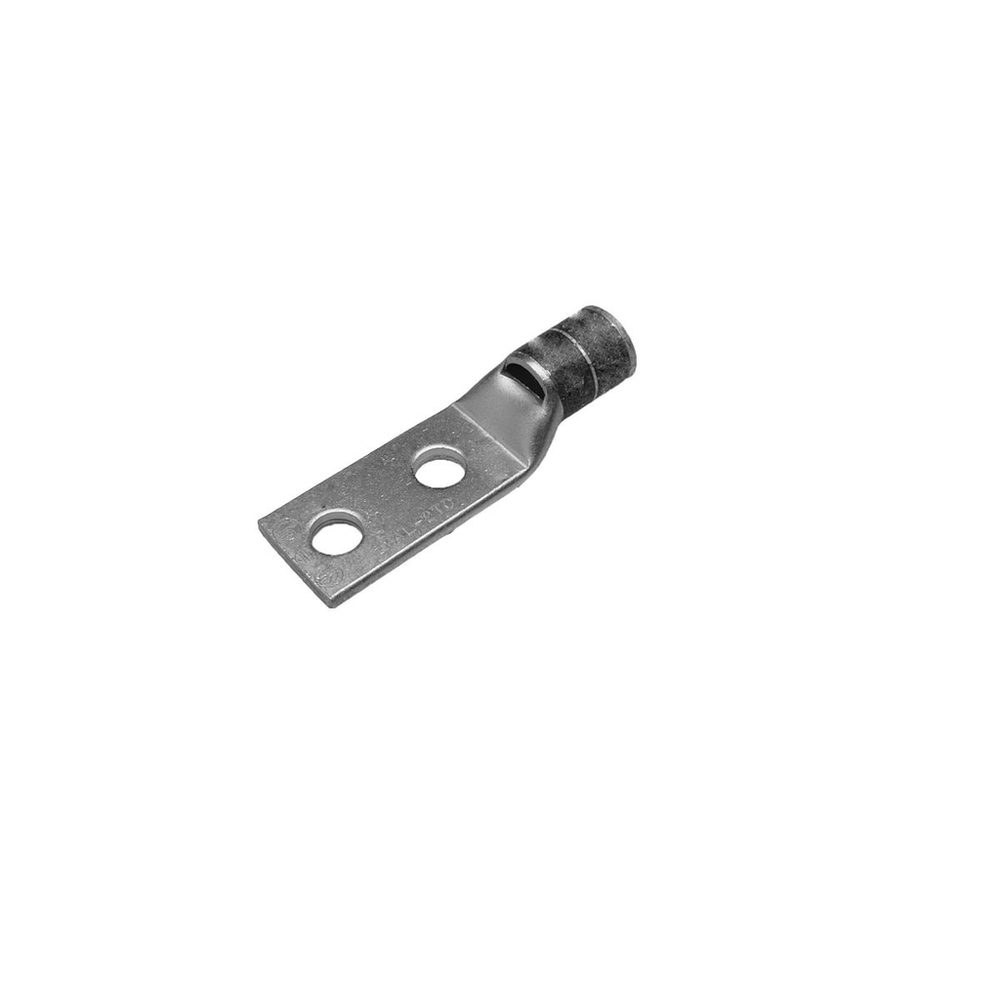

Copper Tubing Terminal, 2 Holes W/ insp Window, #4 CLASS B, C AWG, 40 Navy, 5/6 IN Bolt, 8, 346 Index, Gray, Electro Tin Plated.Copper Tubing Terminal, 2 Holes W/ insp Window, #4 CLASS B, C AWG, 40 Navy, 5/6 IN Bolt, 8, 346 Index, Gray, Electro Tin Plated.
Burndy YA4C2L3 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Wire Termination
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Gross Weight per Pack
- 1.500 lb.
- Carton - Number of Sub Packs
- 50
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810018101
- Carton - Total Units
- 50
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810018102
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Gray
- Conductor - Copper Str Navy Size
- 40 (19) Navy
- Conductor - Copper Str Navy Size Range
- 40 (19) Navy-50 (19) Navy
- Conductor - Copper Str Size
- 4 AWG
- Conductor - Copper Str Size Range
- 4 AWG
- Conductor - Material
- COPPER
- Conductor Size
- 4 AWG
- Conductor Type
- CODE
- Connector Type
- STANDARD BARREL
- Country of Origin
- US
- Description - Slang
- CU TERM CODE STD BBL TN
- Die Index
- 8
- Dimension - B Length fraction
- 13/16 in
- Dimension - B Length inch
- 0.81 in
- Dimension - Bolt Size fraction
- 5/16
- Dimension - Bolt Size inch
- 0.3125
- Dimension - D inch
- 1.59 in
- Dimension - Hole Size fraction
- 5/16
- Dimension - Hole Size inch
- 0.38
- Dimension - Hole Size mm
- 10 mm
- Dimension - Inside Diameter inch
- 0.25 in
- Dimension - Length Overall inch
- 2.70 in
- Dimension - L Length Overall mm
- 69 mm
- Dimension - N inch
- 0.34 in
- Dimension - Outside Diameter inch
- 0.34 in
- Dimension - Pad Width inch
- 0.56 in
- Dimension - Stud Size fraction
- 5/16
- Dimension - Z inch
- 0.37 in
- Feature - Barrel Style
- Chamfered;Skived
- Feature - Barrel Type
- Standard
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 12 wk
- Material
- COPPER
- Package - GTIN - Package
- 30781810018102
- Package Quantity
- 50 EA
- Package - Total Units
- 50 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Angle
- Straight
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Standard Package Quantity
- 50
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B55BH0F
- Trade Name
- HYLUG™
- Type
- Standard Barrel, Tin Plated
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
