Burndy YA462NFXB
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

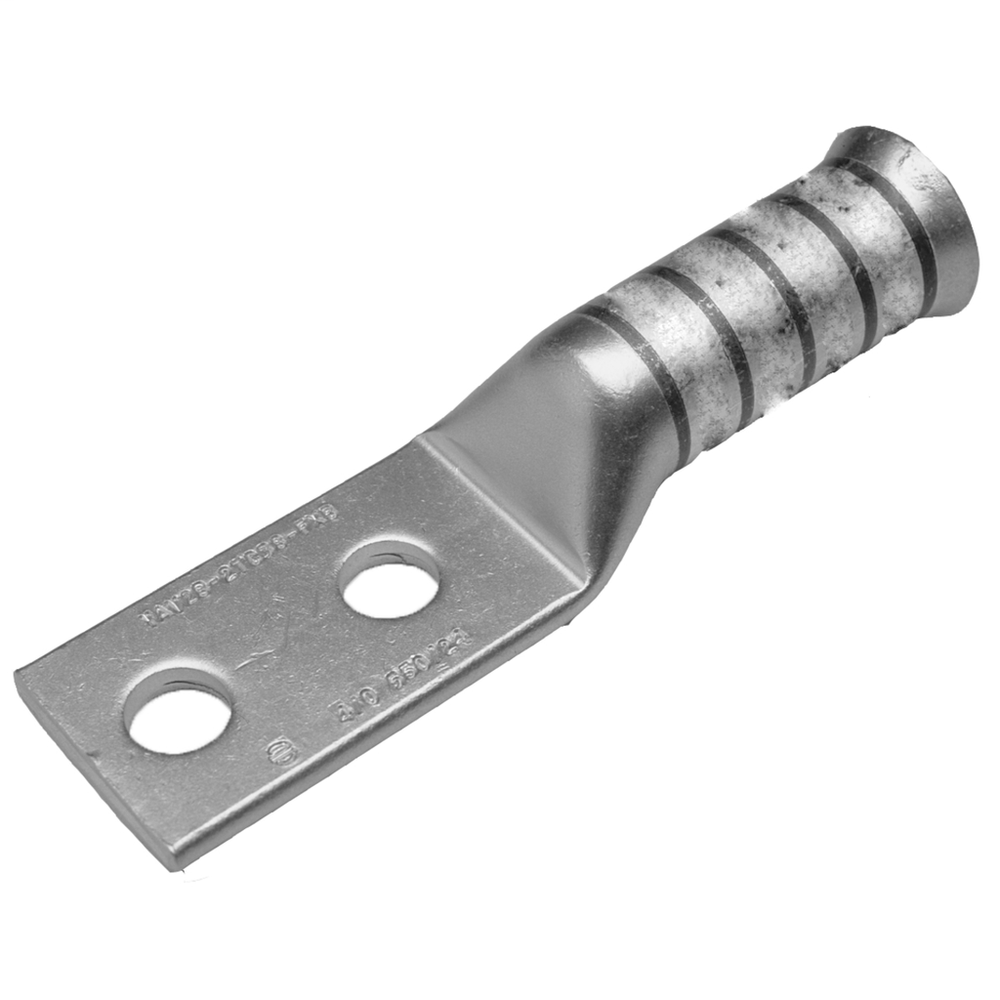

Copper Compression Lug, 2 Hole w/o Inspection Window, 1111 Flex, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Belled End, Tin Plated.Long Length Barrel YA462NFXB
Burndy YA462NFXB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - Copper DLO Size
- 1111 (2750/#24)
- Conductor - Copper Flex G Size
- 1111
- Conductor - Copper Flex H Size
- 1111
- Conductor - Copper Flex I Size
- 1111
- Conductor - Copper Flex K Size
- 1111
- Conductor - Copper Flex M Size
- 1111
- Conductor - Copper Flex M Size Range
- 1111
- Conductor - Copper Str Size
- 1000 kcmil
- Conductor - Material
- Copper
Dimensions
- Dimension - B Length inch
- 3.58 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 7.91 in
- Dimension - L Length Overall mm
- 201 mm
- Dimension - N inch
- 0.62 in
- Dimension - Outside Diameter inch
- 1.84 in
- Dimension - Pad Width inch
- 2.69 in
- Dimension - Strip Length inch
- 3-11/16
- Dimension - Stud Size inch
- 1/2
- Dimension - Thread Size
- 1/2
- Dimension - Z inch
- 0.64 in
- Physical Attribute - Tongue Angle
- Straight
Electrical Ratings
- Rating - KVA
- 35 kV
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 35000
General
- Application
- For Flex Conductor
- Connector Type
- Terminal
- Die Index
- 29
- Feature - Barrel Style
- Belled
- Feature - Barrel Type
- Long
- Material
- Copper
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Type
- Standard
- Plated
- Y
- Plating Type
- Tin plated
- Sub Brand
- HYLUG
- Trade Name
- HYLUG™
- Type
- Long Barrel, Tin Plated
- UPC
- 781810038949
- UPC 12 Digit
- 7818100389499
Logistics
- Minimum Pack Quantity
- 1
