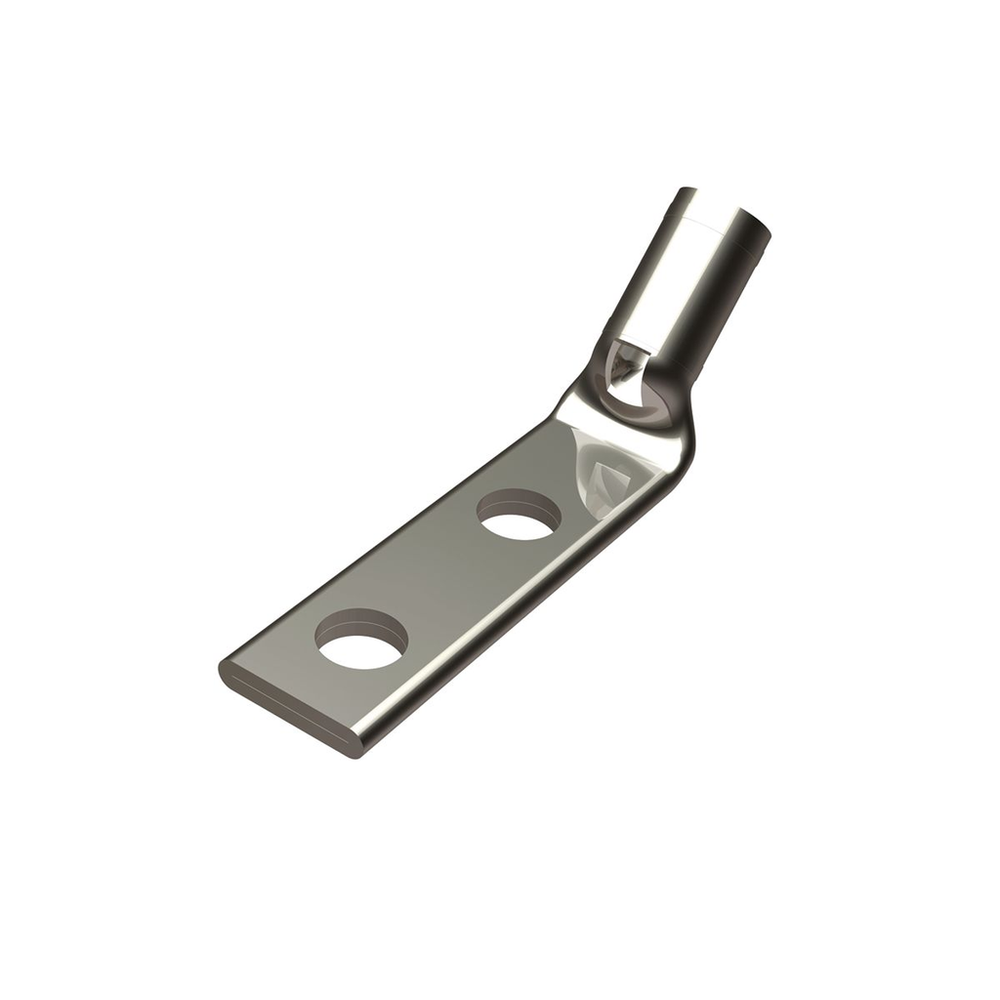

Burndy YA44L2NT38FX45
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cu Comp Terminal Flex Cond, 2 Hole/W/InspWindow, 777.7 kcmil(1925/#24)DLO, 750 kcmil FLEX, 600 V-35 kV, 3/8" Stud, 1.00" Spacing, 45 Deg Bent, Std bbl.750 kcmil G,H,777 DLO, CU, 2 Hole, 3/8 Stud, 1 IN Spacing, Standard Barrel, Inspection WIndow, Narrow Tongue, 45 Degree
Burndy YA44L2NT38FX45 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Wire Termination
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 10.000 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810080429
- Carton - Total Units
- 10
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810080420
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Yellow
- Conductor - Copper DLO Size
- 777 KCMIL
- Conductor - Copper DLO Size Range
- 777 kcmil
- Conductor - Copper Flex G Size
- 750 KCMIL
- Conductor - Copper Flex G Size Range
- 750 kcmil
- Conductor - Copper Flex H Size
- 750 KCMIL
- Conductor - Copper Flex H Size Range
- 750 kcmil
- Conductor - Copper Flex I Size
- 750 KCMIL
- Conductor - Copper Flex I Size Range
- 750 kcmil
- Conductor - Copper Flex K Size
- 750
- Conductor - Copper Flex M Size
- 750
- Conductor - Copper Solid Size
- 750 kcmil/FLEX
- Conductor - Copper Str Size
- 750 KCMIL
- Conductor - Copper Str Size Range
- 750 kcmil
- Conductor - Material
- COPPER
- Conductor Size
- 750 KCMIL
- Conductor Type
- FLEX
- Connector Type
- STANDARD BARREL
- Country of Origin
- US
- Description - Invoice
- 750FLX-3/8X1-NARROW-45DG
- Description - Slang
- TERM FX STD BBL TN TEL
- Die Index
- L115
- Dimension - B Length inch
- 1.65 in
- Dimension - Bolt Hole Size inch
- 3/8 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Bolt Size inch
- 0.38
- Dimension - Height inch
- 3.07 in
- Dimension - Hole Size fraction
- 3/8
- Dimension - Hole Size inch
- 0.41
- Dimension - Hole Size mm
- 10.4 mm
- Dimension - Length Overall inch
- 4.71 in
- Dimension - L Length Overall mm
- 120 mm
- Dimension - N inch
- 0.50 in
- Dimension - Outside Diameter inch
- 1.5 in
- Dimension - Pad Width inch
- 1.63 in
- Dimension - Strip Length inch
- 1-5/8 in
- Dimension - Stud Size fraction
- 3/8
- Dimension - Stud Size inch
- 3/8 in
- Dimension - Thread Size
- 3/8
- Dimension - Z inch
- 0.53 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.63 in
- Feature - Barrel Style
- Chamfered;Skived
- Feature - Barrel Type
- Standard
- Finish
- Tin-Plated
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- COPPER
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 10 lb.
- Package - GTIN - Package
- 30781810080420
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810080429
- Package - Total Units
- 10 EA
- Package Weight
- 10 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810080428
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1525.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Angle
- 45 Degree
- Physical Attribute - Tongue Type
- Straight
- Plated
- Y
- Plating Type
- Tin -Plated
- Product Type
- TERMINAL
- Special Features
- UL Listed 90 DEG C, 600 V - 35 KV, Tongue Angle: 45 DEG Angle
- Standard
- UL 486A-486B
- Standard Package Quantity
- 10
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYLUG
- Sub Class Code
- B55BHCF
- Trade Name
- HYLUG™
- Type
- Standard Barrel, Tin Plated
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
- Width
- 1.63 in
- Wire Size
- 750 KCMIL
