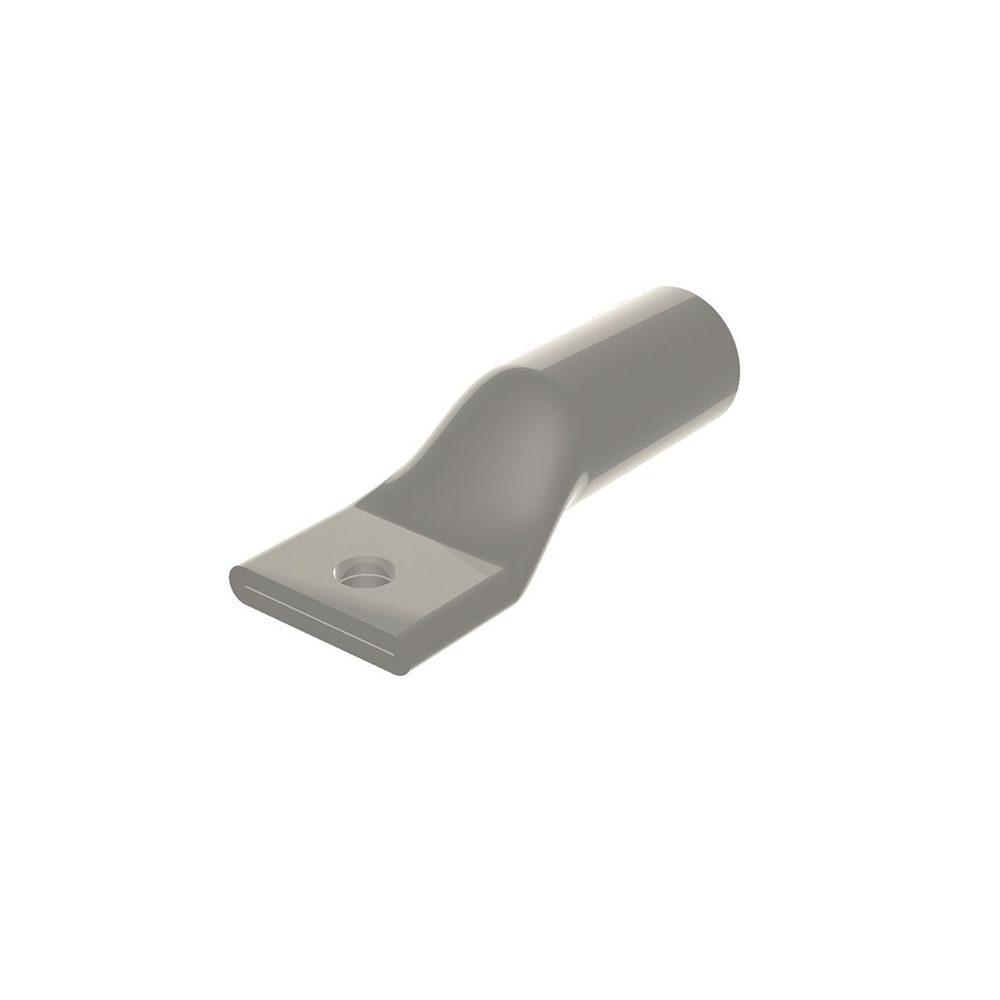

Burndy YA42A3
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AL Terminal, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX™ A13, End Cap, UL/CSA, 90°C, Up to 35kV, Color Code, Die Index.900 kcmil, AL, 1 Hole, 5/8" Stud, AL9CU
Burndy YA42A3 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Wire Termination
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Gross Weight per Pack
- 1.374 lb.
- Carton - Number of Sub Packs
- 3
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810637159
- Carton - Total Units
- 3
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810637150
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Gray
- Conductor - AL Str Size
- 900 KCMIL
- Conductor - AL Str Size Range
- 900 kcmil
- Conductor - Copper Str Size
- 900 KCMIL
- Conductor - Copper Str Size Range
- 600 kcmil
- Conductor - Material
- ALUMINUM / COPPER
- Conductor Size
- 900 KCMIL
- Conductor Type
- CODE
- Connector Type
- DUAL RATED
- Country of Origin
- US
- Description - Slang
- Aluminum
- Die Index
- 303
- Dimension - Bolt Size fraction
- 5/8
- Dimension - Bolt Size inch
- 0.63
- Dimension - D inch
- 1.36 in
- Dimension - Hole Size fraction
- 5/8
- Dimension - Hole Size inch
- 0.69
- Dimension - Hole Size mm
- 17.5 mm
- Dimension - Length Overall inch
- 5.32 in
- Dimension - L Length Overall mm
- 135 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 2.14 in
- Dimension - Strip Length inch
- 2 7/8
- Dimension - Stud Size fraction
- 5/8
- Dimension - Stud Size inch
- 5/8
- Dimension - Z inch
- 1.00 in
- Feature - Barrel Type
- Standard
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 12 wk
- Material
- ALUMINUM
- Package - GTIN - Package
- 30781810637150
- Package Quantity
- 3 EA
- Package - Total Units
- 3 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- Straight
- Physical Attribute - Tongue Type
- Standard
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Standard Package Quantity
- 3
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B55BI7F
- Temperature Rating
- 194
- Trade Name
- HYLUG™
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
- Wire Size
- 900 KCMIL
