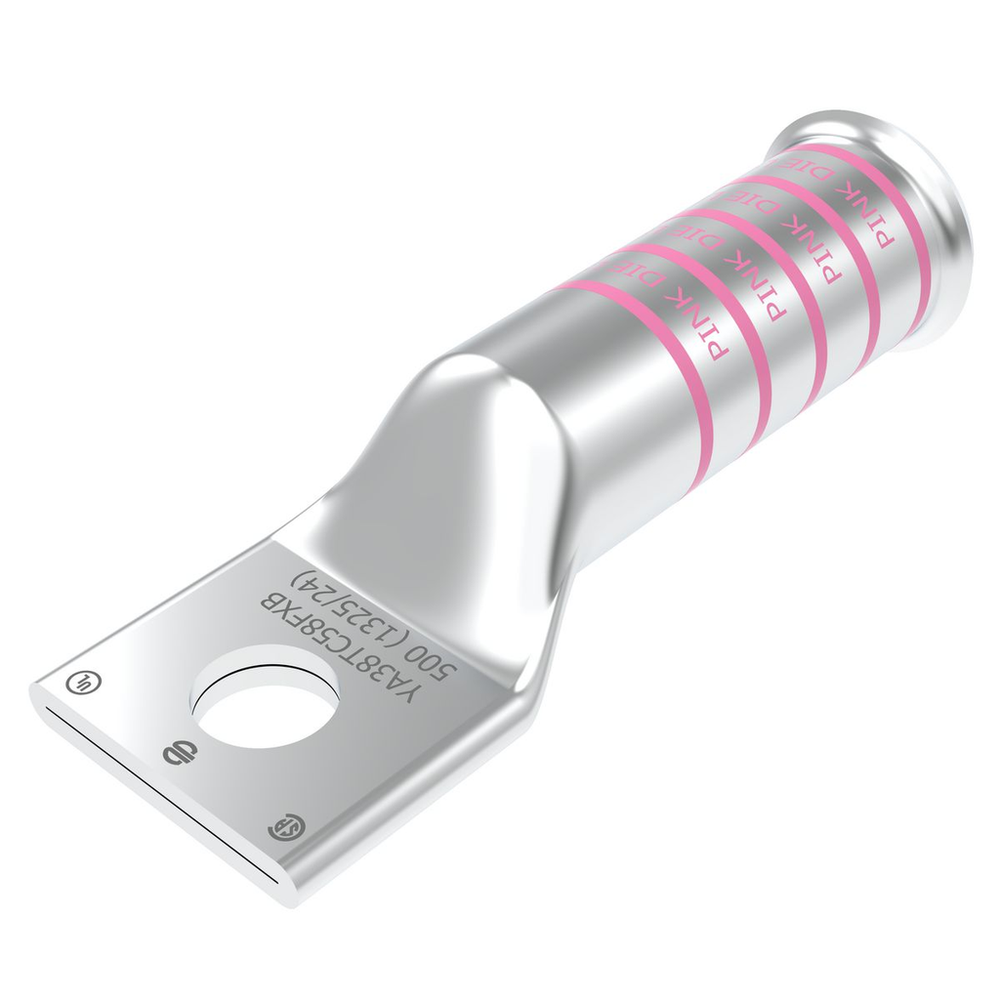

Burndy YA38TC58FXB
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
500 kcmil H,I,K / 550 kcmil G,H,I,535 DLO CU, One Hole, 5/8 Stud Size, Long Barrel, Bell End, Tin Plated, UL/CSA, 90°C, Up to 35kV, Pink Color Code, L99 Die Index.500 kcmil H,I,K / 550 kcmil G,H,I,535 DLO, CU, 1 Hole, 5/8 Stud, Long Barrel, Bell End
Burndy YA38TC58FXB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Wire Termination
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 4.680 lb.
- Carton - Number of Sub Packs
- 6
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810039878
- Carton - Total Units
- 6
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810039879
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Pink
- Conductor - Copper DLO Size
- 535 KCMIL
- Conductor - Copper DLO Size Range
- 535 kcmil
- Conductor - Copper Flex G Size
- 550 KCMIL
- Conductor - Copper Flex G Size Range
- 550 kcmil
- Conductor - Copper Flex H Size
- 500-550 KCMIL
- Conductor - Copper Flex H Size Range
- 500 / 550 kcmil
- Conductor - Copper Flex I Size
- 500-550 KCMIL
- Conductor - Copper Flex I Size Range
- 500 / 550 kcmil
- Conductor - Copper Flex K Size
- 500 KCMIL
- Conductor - Copper Flex K Size Range
- 500 kcmil
- Conductor - Copper Flex M Size
- 535.3
- Conductor - Copper Flex M Size Range
- 535.3
- Conductor - Copper Str Size
- 500-550 KCMIL
- Conductor - Copper Str Size Range
- 500 / 550 kcmil
- Conductor - Material
- COPPER
- Conductor Size
- 500-550 KCMIL
- Conductor Type
- FLEX
- Connector Type
- LONG BARREL
- Country of Origin
- US
- Description - Invoice
- BELLED LUG 5/8 535 FLE
- Description - Slang
- TERM FLEX LG BBL TN TEL
- Die Index
- L99
- Dimension - B Length fraction
- 3-1/16 in
- Dimension - B Length inch
- 3.08 in
- Dimension - Bolt Hole Size inch
- 0.66 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Bolt Size inch
- 0.38
- Dimension - Hole Size fraction
- 3/8
- Dimension - Hole Size inch
- 0.41
- Dimension - Hole Size mm
- 10.4 mm
- Dimension - Length Overall inch
- 5.32 in
- Dimension - L Length Overall mm
- 135 mm
- Dimension - N inch
- 0.66 in
- Dimension - Outside Diameter inch
- 1.25 in
- Dimension - Pad Width inch
- 1.84 in
- Dimension - Strip Length inch
- 3-3/16
- Dimension - Stud Size fraction
- 3/8
- Dimension - Stud Size inch
- 5/8
- Dimension - Z inch
- 0.67 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.84 in
- Feature - Barrel Style
- Belled
- Feature - Barrel Type
- Long
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- COPPER
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 4.68 lb.
- Package - GTIN - Package
- 30781810039879
- Package Height
- 3.25 in
- Package Length
- 7.25 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810039878
- Package - Total Units
- 6 EA
- Package Weight
- 4.68 lb.
- Package Width
- 4.87 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- Straight
- Physical Attribute - Tongue Type
- Standard
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Special Features
- Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 3-3/16 IN, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Die Index: L99, Color Code: Pink, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U38XRT Die, (4), Y46 Tool, U38XRT Die With PUADP-1 Adapter, (4), Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2)
- Standard
- UL 486A-486B
- Standard Package Quantity
- 6
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYLUG
- Sub Class Code
- B55BHPF
- Trade Name
- HYLUG™
- Type
- Long Barrel, Tin Plated
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
- Width
- 1.84 in
- Wire Size
- 500-550 KCMIL
