Burndy YA34L2TC38FX90
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

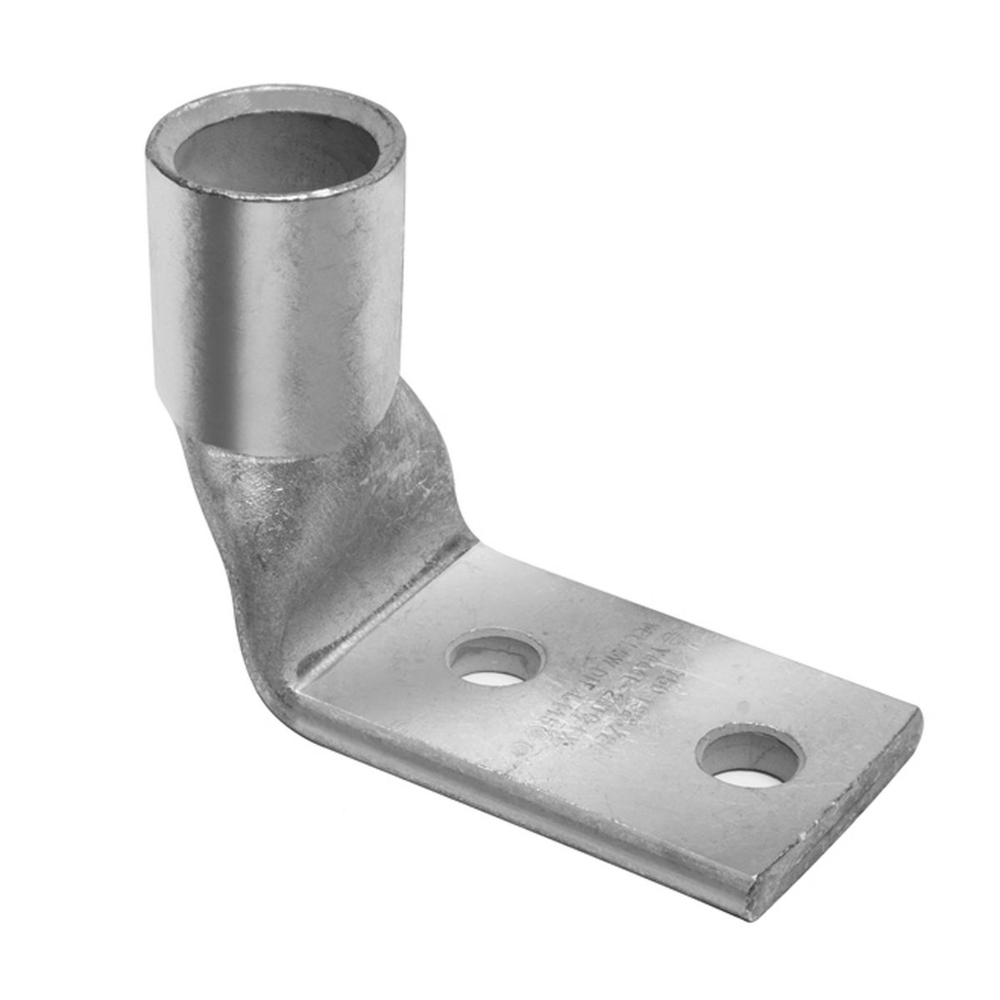

Cu Tubing Hylug, 2 Holes with Inspection Window, 350 kcmil Flex, 600V-35kV, 3/8" stud, Standard, Compression, 0.41 in BCD, Blue.Copper Compression Terminal
Burndy YA34L2TC38FX90 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Wire Termination
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Carton - Gross Weight per Pack
- 4.600 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810080412
- Carton - Total Units
- 10
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810080413
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Blue
- Conductor - Copper DLO Size
- 373 KCMIL
- Conductor - Copper DLO Size Range
- 373 kcmil
- Conductor - Copper Flex G Size
- 350 KCMIL
- Conductor - Copper Flex G Size Range
- 350 kcmil
- Conductor - Copper Flex H Size
- 350 KCMIL
- Conductor - Copper Flex H Size Range
- 350 kcmil
- Conductor - Copper Flex I Size
- 350 KCMIL
- Conductor - Copper Flex I Size Range
- 350 kcmil
- Conductor - Copper Flex K Size
- 350 KCMIL
- Conductor - Copper Flex K Size Range
- 350 kcmil
- Conductor - Copper Flex M Size
- 350 KCMIL
- Conductor - Copper Flex M Size Range
- 350 kcmil
- Conductor - Copper Str Size
- 350 KCMIL
- Conductor - Copper Str Size Range
- 350 kcmil
- Conductor - Material
- COPPER
- Conductor Size
- 350 KCMIL
- Conductor Type
- FLEX
- Connector Type
- STANDARD BARREL
- Country of Origin
- US
- Description - Slang
- TERM FX STD BBL TN TEL
- Die Index
- 19
- Dimension - B Length fraction
- 1-1/4 in
- Dimension - B Length inch
- 1.27 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Bolt Size inch
- 0.38
- Dimension - Height inch
- 2.43 in
- Dimension - Hole Size fraction
- 3/8
- Dimension - Hole Size inch
- 0.41
- Dimension - Hole Size mm
- 10.4 mm
- Dimension - Length Overall inch
- 2.54 in
- Dimension - L Length Overall mm
- 65 mm
- Dimension - N inch
- 0.41 in
- Dimension - Outside Diameter inch
- 1.06 in
- Dimension - Pad Width inch
- 1.55 in
- Dimension - Strip Length inch
- 1-5/16
- Dimension - Stud Size fraction
- 3/8
- Dimension - Z inch
- 0.42 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 12 wk
- Material
- COPPER
- Package - GTIN - Package
- 30781810080413
- Package Quantity
- 10 EA
- Package - Total Units
- 10 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810080411
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2179.400 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Angle
- 90 Degree
- Physical Attribute - Tongue Type
- Standard
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Standard Package Quantity
- 1
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B55BHCF
- Trade Name
- HYLUG™
- Type
- Standard Barrel, Tin Plated
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
- Wire Size
- 350 KCMIL
