Burndy YA32L
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

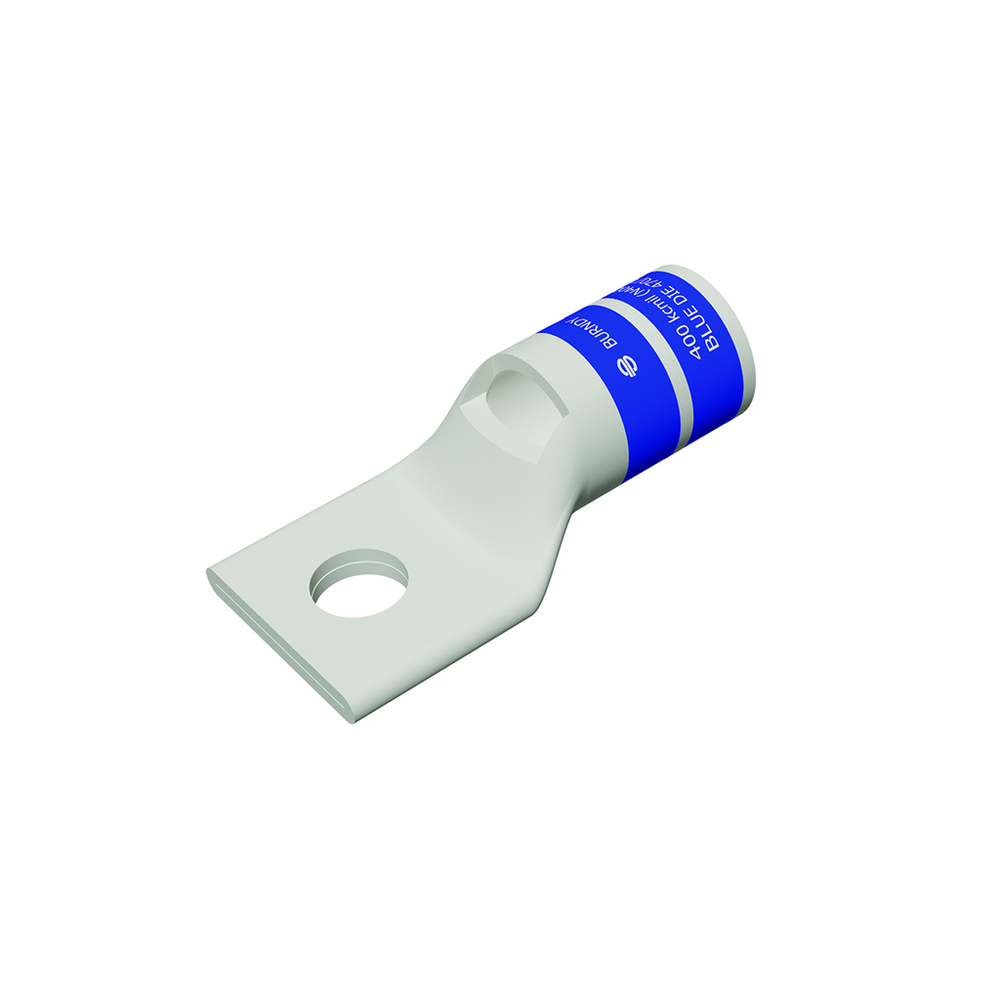

Copper Compression Lug, 1 Hole w/ Inspection Window, 400 kcmil, 5/8" Stud, Short Barrel, Tin Plated.Non-insulated; Tin Plated YA32L
Burndy YA32L is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - Copper DLO Size Range
- null
- Conductor - Copper Str Navy Size
- 400 (127) Navy
- Conductor - Copper Str Navy Size Range
- 400 (127) Navy
- Conductor - Copper Str Size
- 400 kcmil
- Conductor - Copper Str Size Range
- 400 kcmil
- Conductor - Material
- Copper
Dimensions
- Dimension - B Length fraction
- 1-3/16 in
- Dimension - B Length inch
- 1.19 in
- Dimension - Bolt Hole Size inch
- 0.66 in
- Dimension - Bolt Size fraction
- 5/8
- Dimension - D inch
- 1.34 in
- Dimension - Hole Size mm
- 18 mm
- Dimension - Length Overall inch
- 3.18 in
- Dimension - L Length Overall mm
- 81 mm
- Dimension - N inch
- 0.67 in
- Dimension - Outside Diameter inch
- 0.95 in
- Dimension - Pad Width inch
- 1.40 in
- Dimension - Strip Length inch
- 1-1/4
- Dimension - Stud Size fraction
- 5/8
- Dimension - Stud Size inch
- 5/8
- Dimension - Z inch
- 0.67 in
- Physical Attribute - Tongue Angle
- Straight
Electrical Ratings
- Rating - KVA
- 35 kV
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 35000
General
- Application
- For Code Conductor
- Color Code
- Blue
- Connector Type
- Terminal
- Die Index
- 19
- Feature - Barrel Type
- Standard
- Material
- Copper
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Standard
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Sub Brand
- HYLUG
- Trade Name
- HYLUG™
- Type
- Standard Barrel, Tin Plated
- UPC
- 781810505656
Logistics
- Minimum Pack Quantity
- 1
