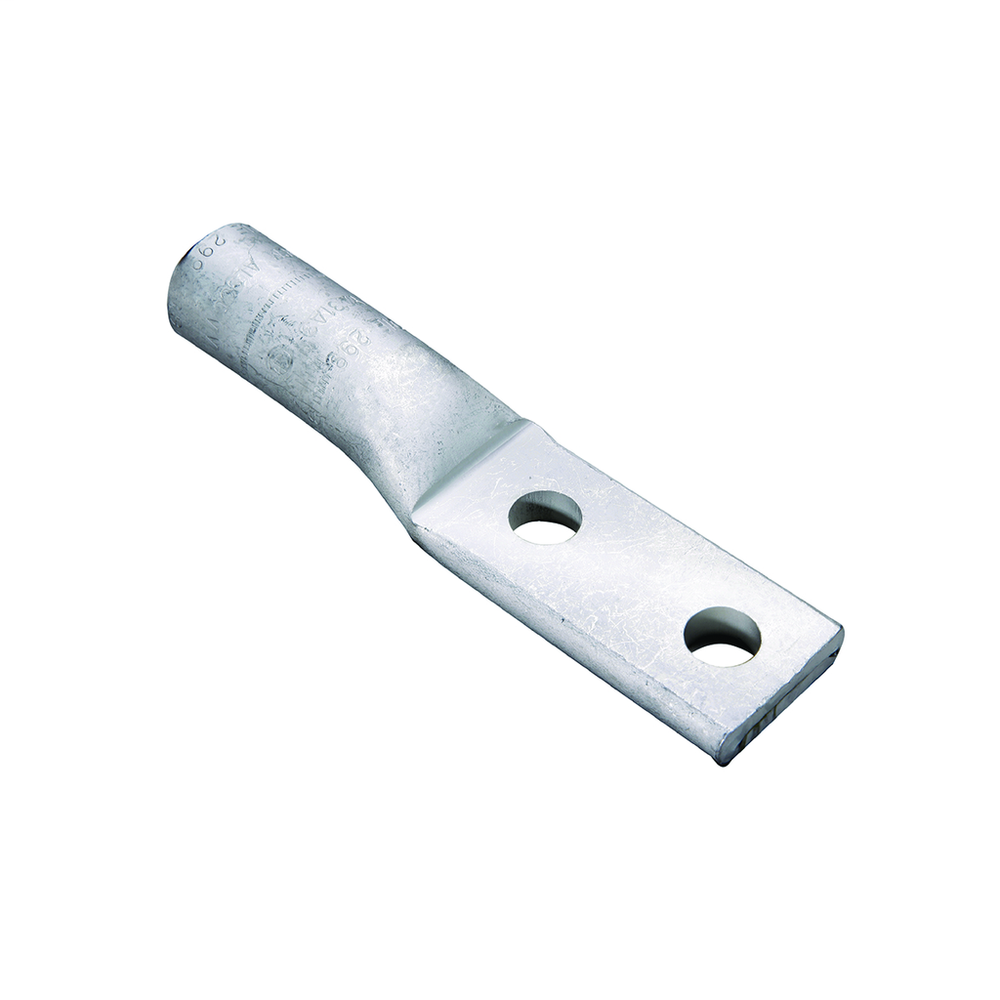

Burndy YA26A3

Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Burndy YA26A3 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - Industry Standards Met
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - AL Str Size
- 2/0 AWG
- Conductor - AL Str Size Range
- 2/0 AWG
- Conductor - Copper Str Size
- 2/0 AWG
- Conductor - Copper Str Size Range
- 2/0 AWG
Dimensions
- Dimension - B Length fraction
- 1-3/16 in
- Dimension - B Length inch
- 1.17 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - D inch
- 3.11 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 4.78 in
- Dimension - L Length Overall mm
- 121 mm
- Dimension - N inch
- 0.63 in
- Dimension - Outside Diameter inch
- 0.67 in
- Dimension - Pad Width inch
- 1.03 in
- Dimension - Strip Length inch
- 1-3/8
- Dimension - Stud Size inch
- 1/2
- Dimension - Thread Size
- 1/2
- Dimension - Z inch
- 0.73 in
- Physical Attribute - Tongue Angle
- Straight
Electrical Ratings
- Rating - KVA
- 35 kV
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 35000
General
- Application
- For Aluminum & Copper Conductors
- Color Code
- Olive
- Connector Type
- Terminal
- Die Index
- 297
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Item Type
- 3A
- Material
- Aluminum
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Type
- Standard
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Sub Brand
- TERMINALS, HYLUG
- Temperature Rating
- 194
- Trade Name
- HYLUG™
- Type
- YA-A
- UPC
- 781810753507
- UPC 12 Digit
- 7818107535077
