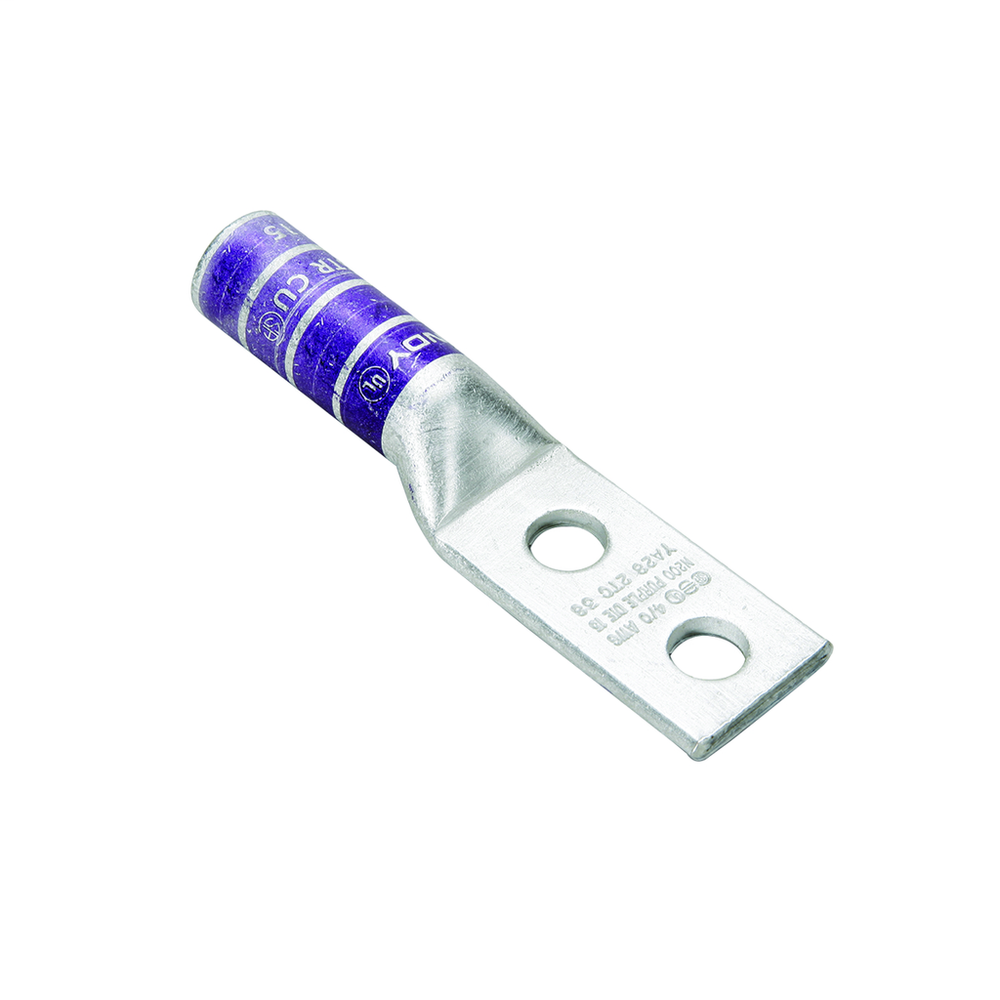

Burndy YA252N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Burndy YA252N is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - Industry Standards Met
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - Copper DLO Size Range
- null
- Conductor - Copper Str Navy Size
- 100 (61) Navy
- Conductor - Copper Str Size
- 1/0
- Conductor - Material
- Copper
Dimensions
- Dimension - B Length fraction
- 1-3/8 in
- Dimension - B Length inch
- 1.38 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 4.81 in
- Dimension - L Length Overall mm
- 122 mm
- Dimension - N inch
- 0.63 in
- Dimension - Outside Diameter inch
- 0.51 in
- Dimension - Pad Width inch
- 0.83 in
- Dimension - Strip Length inch
- 1-7/16
- Dimension - Stud Size inch
- 1/2
- Dimension - Z inch
- 0.64 in
- Physical Attribute - Tongue Angle
- Straight
Electrical Ratings
- Rating - KVA
- 35 kV
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 35000
General
- Application
- For Code Conductor
- Color Code
- Pink
- Connector Type
- Terminal
- Die Index
- 12
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Long
- Material
- Copper
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Type
- Standard
- Plated
- Y
- Plating Type
- Electro-Tin plated
- Sub Brand
- HYLUG
- Trade Name
- HYLUG™
- Type
- Long Barrel, Tin Plated
- UPC
- 781810502266
- UPC 12 Digit
- 7818105022666
Logistics
- Minimum Pack Quantity
- 10
Williams Automation sells Burndy parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
