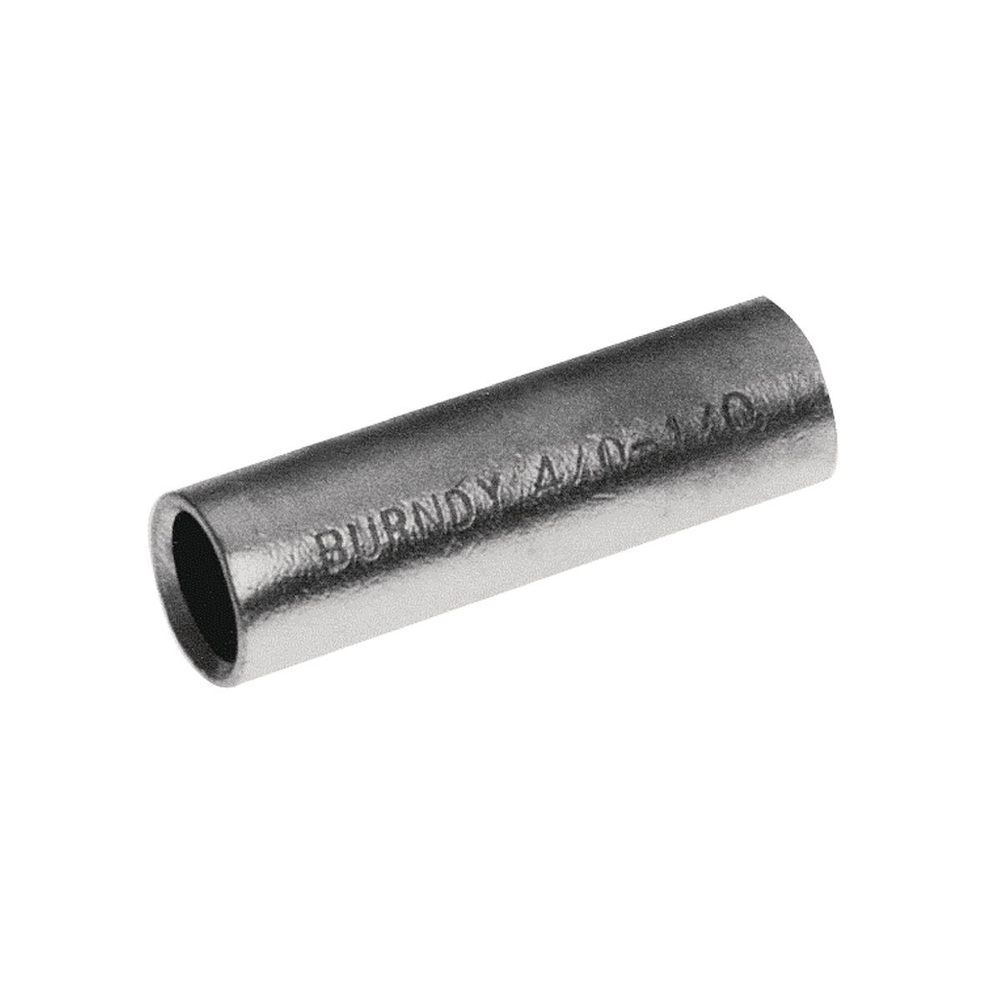

Burndy Y3428R

Certifications

• CSA Approved
  • No
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • Wire Reducing Splice Adapter Insert
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 5.125x6.438x4.875 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 10.500 lb.
• Carton - Number of Sub Packs
  • 50
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810001073
• Carton - Total Units
  • 50
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810001074
• Certification Agency
  • Proposition 65
• Class Code
  • B55
• Color Code
  • Brown
• Conductor - Copper Str Run
  • 500 kcmil
• Conductor - Copper Str Run Range
  • 500 kcmil
• Conductor - Copper Str Size Range
  • 4/0 AWG
• Conductor - Copper Str Tap
  • 4/0 AWG
• Conductor - Copper Str Tap Range
  • 4/0 AWG
• Conductor - Material
  • COPPER
• Conductor Type
  • CODE
• Connector Type
  • LONG BARREL
• Country of Origin
  • US
• Description - Invoice
  • 4/0 CU RED ADP 500 BBL
• Description - Slang
  • Copper Reducer Adaptor Sleeves
• Die Index
  • 20
• Dimension - B Length inch
  • 2.50 in
• Dimension - Length Overall inch
  • 2.50 in
• Dimension - L Length Overall mm
  • 64 mm
• Dimension - Outside Diameter inch
  • 0.821 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.82 in
• Feature - Barrel Type
  • Long
• Finish
  • Tin-Plated
• Finish Type
  • Tin-Plated
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908020
• Image Actual Or Representative
  • A
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • COPPER
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Package - Gross Weight per Pack
  • 10.5 lb.
• Package - GTIN - Package
  • 30781810001074
• Package Height
  • 4.50 in
• Package Length
  • 6.13 in
• Package - Number of Sub Packs
  • 50
• Package - Pack Description
  • Package
• Package Quantity
  • 50 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810001073
• Package - Total Units
  • 50 EA
• Package Weight
  • 10.5 lb.
• Package Width
  • 4.56 in
• Pallet - GTIN - Package
  • 70781810001072
• Pallet Height
  • 46.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 1872.000 lb.
• Pallet Width
  • 40.000 in
• Plated
  • Y
• Plating Type
  • Tin Plated
• Product Type
  • SPLICE REDUCER
• Special Features
  • Features: The Y-R Reducing Adapter Has Been Designed To Allow Large Size, Long Barrel, Copper Long Barrel HYDENT, HYSPLICE And HYTEE Terminals, Splices, And T Taps To Be Used On Smaller Conductor Sizes, To Use, Simply Insert The Reducer Into The Barrel, Insert The Wire Into The Reducer Adapter And Crimp The Outer Barrel Using Its Recommended Tooling, Wide Range Of Conductors Are Accommodated: Lowers Inventory Requirements And Affords Maximum Versatility, Same Die Set For All Legs Of The Connection: Permits The Same Tool And Die Combination Normally Used On The Compression Barrel, Length Fits The Long Barrel Connector Design (YS, YA): Can Be Used On All Long Barrel Connectors, Field Cut To Fit Shorter Length Compression Barrels (YS-L, YA-L), Manufactured From High Conductivity Electrolytic Copper And Electro-Tin Plated: Provides Maximum Conductivity Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, And Provides Long Lasting Corrosion Resistance, Conductor Type: Copper
• Standard Package Quantity
  • 50
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • REDUCER/ADAPTER
• Sub Class Code
  • B55BIGF
• Temperature Rating
  • 194
• Type
  • Y-R, Compression
• UL Listed
  • No
• Voltage - Maximum
  • 35000
• Width
  • 0.82 in
• Wire Size
  • #4/0 AWG
