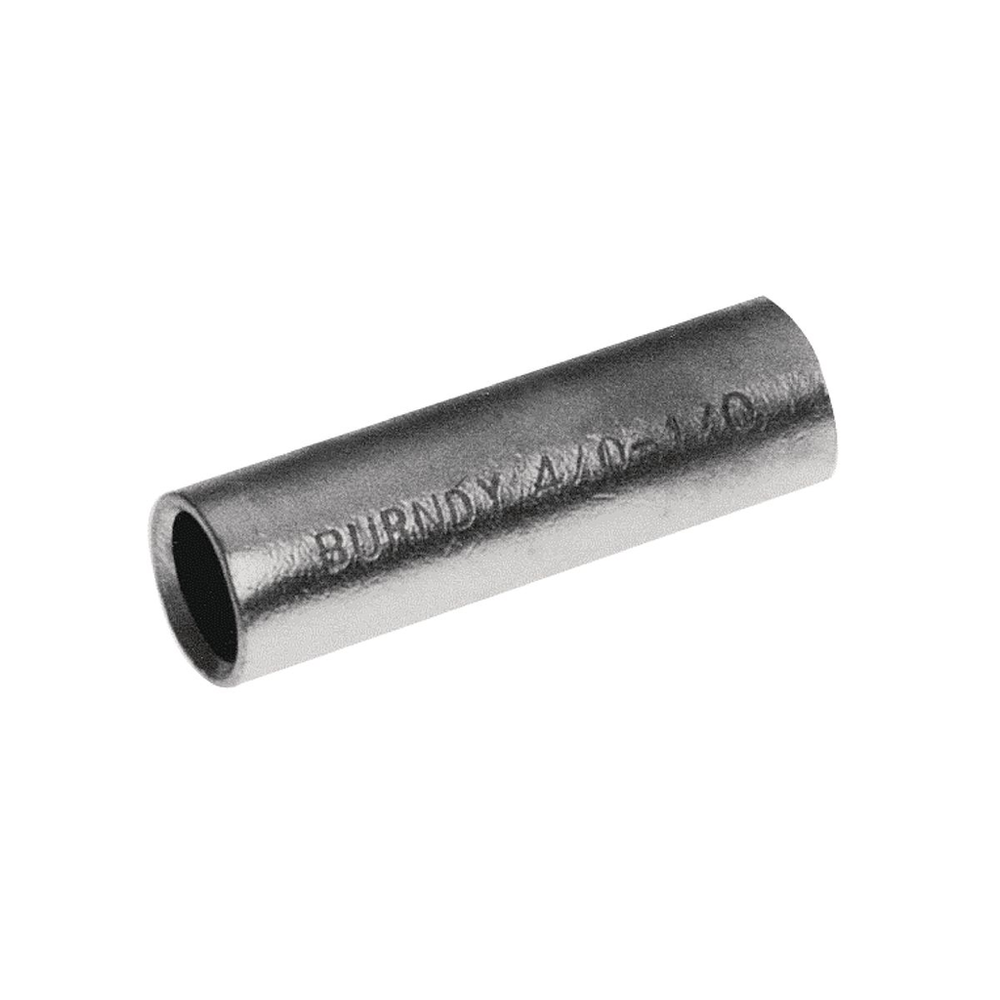

Burndy Y2826R
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
4/0 AWG CU Long Barrel Size Reduced Down To 2/0 AWG Wire Size, Internal Chamfer, Tin Plated, Up to 35kV, PURPLE Color Code, 15 Die Index.Reducing Adapter for 4/0 AWG Barrel Reducing down to 2/0 AWG CU
Burndy Y2826R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Wire Reducing Splice Adapter Insert
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x8.438x4.063 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 1
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810001028
- Carton - Total Units
- 1
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810001029
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Purple
- Conductor - Copper Str Run
- 4/0 AWG
- Conductor - Copper Str Run Range
- 4/0 AWG
- Conductor - Copper Str Size Range
- 2/0 AWG
- Conductor - Copper Str Tap
- 2/0 AWG
- Conductor - Copper Str Tap Range
- 2/0 AWG
- Conductor - Material
- COPPER
- Conductor Type
- CODE
- Connector Type
- LONG BARREL
- Country of Origin
- US
- Description - Invoice
- 2/0 CU RED ADP 4/0 BBL
- Description - Slang
- Copper Reducer Adaptor Sleeves
- Die Index
- 15
- Dimension - B Length inch
- 1.75 in
- Dimension - Length Overall inch
- 1.75 in
- Dimension - L Length Overall mm
- 44 mm
- Dimension - Outside Diameter inch
- 0.534 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.53 in
- Feature - Barrel Type
- Long
- Finish
- Tin-Plated
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- COPPER
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 3 lb.
- Package - GTIN - Package
- 30781810001029
- Package Height
- 4.50 in
- Package Length
- 8.13 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810001028
- Package - Total Units
- 100 EA
- Package Weight
- 3 lb.
- Package Width
- 3.75 in
- Pallet - GTIN - Package
- 70781810001027
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 45.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- SPLICE REDUCER
- Special Features
- Features: Wide Range Of Conductors Are Accommodated, Lowers Inventory Requirements And Affords Maximum Versatility, Same Die Set For All Legs Of The Connection, Permits The Same Tool And Die Combination Normally Used On The Compression Barrel, Length Fits The Long Barrel Connector Design (YS, YA), Can Be Used On All Long Barrel Connectors, Field Cut To Fit Shorter Length Compression Barrels (YS-L, YA-L), Manufactured From High Conductivity Electrolytic Copper And Electro-Tin Plated, Provides Maximum Conductivity Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, And Provides Long Lasting Corrosion Resistance
- Standard Package Quantity
- 100
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- REDUCER/ADAPTER
- Sub Class Code
- B55BIGF
- Temperature Rating
- 194
- Type
- Y-R, Compression
- UL Listed
- No
- Voltage - Maximum
- 35000
- Width
- 0.53 in
- Wire Size
- #2/0 AWG
