Description

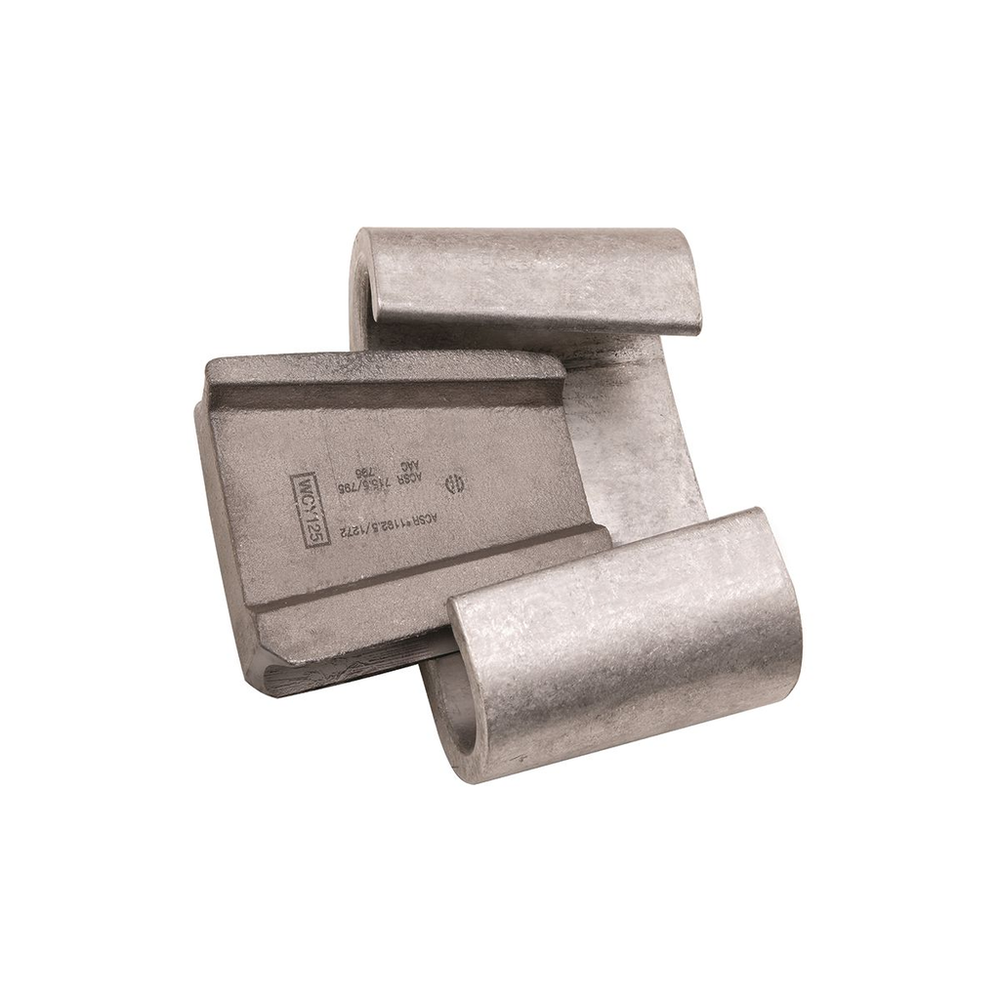

Wejtap Connector With Power Booster Assembly, 12.63 IN L, 6.38 IN W, 0.893-1.250(Run), 0.923 -1.200(Tap), Installed With Yellow Booster.Wejtap Connector With Power Booster Assembly, 12.63 IN L, 6.38 IN W, 0.893-1.250(Run), 0.923 -1.200(Tap), Installed With Yellow Booster
Burndy WCY89 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For use in tap applications using large run and tap conductor sizes
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810875858
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810875859
- Certification Agency
- Proposition 65
- Class Code
- B32
- Conductor - ACSR Str Run
- 556.5 (24/7) Parakeet kcmil;556.5 (26/7) Dove kcmil;556.5 (30/7) Eagle kcmil;605 (24/7) Peacock kcmil;605 (26/7) Squab kcmil;605 (30/19) Teal kcmil;636 (24/7) Rook kcmil;636 (26/7) Grosbeak kcmil;636 (30/19) Egret kcmil;666.6 (24/7) Flamingo kcmil;715.5 (54/7) Crow kcmil;715.5 (24/7) Stilt kcmil;715.5 (26/7) Starling kcmil;715.5 (30/19) Redwing kcmil;795 (54/7) Condor kcmil;795 (26/7) Drake kcmil;795 (30/19) Mallard kcmil;874.5 (54/7) Crane kcmil;900 (54/7) Canary kcmil;954 (45/7) Rail kcmil;954 (54/7) Cardinal kcmil;1033.5 (45/7) Ortolan kcmil;1033.5 (54/7) Curlew kcmil
- Conductor - ACSR Str Run Range
- 556.5 (24/7) Parakeet kcmil-1033.5 (54/7) Curlew kcmil
- Conductor - ACSR Str Tap
- 556.5 (26/7) Dove kcmil;556.5 (30/7) Eagle kcmil;605 (24/7) Peacock kcmil;605 (26/7) Squab kcmil;605 (30/19) Teal kcmil;636 (24/7) Rook kcmil;636 (26/7) Grosbeak kcmil;636 (30/19) Egret kcmil;666.6 (24/7) Flamingo kcmil;715.5 (54/7) Crow kcmil;715.5 (24/7) Stilt kcmil;715.5 (26/7) Starling kcmil;715.5 (30/19) Redwing kcmil;795 (54/7) Condor kcmil;795 (26/7) Drake kcmil;795 (30/19) Mallard kcmil;874.5 (54/7) Crane kcmil;900 (54/7) Canary kcmil;954 (45/7) Rail kcmil;954 (54/7) Cardinal kcmil
- Conductor - ACSR Str Tap Range
- 556.5 (26/7) Dove kcmil-954 (54/7) Cardinal kcmil
- Conductor - AL Str Run
- 600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil;954 kcmil;1000 kcmil
- Conductor - AL Str Run Range
- 600 kcmil-1000 kcmil
- Conductor - AL Str Tap
- 650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil;954 kcmil;1000 kcmil
- Conductor - AL Str Tap Range
- 650 kcmil-1000 kcmil
- Connector Type
- Tap
- Country of Origin
- MX
- Description - Invoice
- Wejtap,1.250 D Max(Run),1.2 DMax(TAP)
- Dimension - F Width Center to Center inch
- 3.5 in
- Dimension - G inch
- 1.97 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3.30 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 9.4 lb.
- Package - GTIN - Package
- 30781810875859
- Package Height
- 4.88 in
- Package Length
- 12.63 in
- Package - Number of Sub Packs
- 5
- Package - Pack Description
- Package
- Package Quantity
- 5 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810875858
- Package - Total Units
- 5 EA
- Package Weight
- 9.4 lb.
- Package Width
- 6.38 in
- Product Type
- Wejtap
- Special Features
- Features: With Yellow Power Booster, ANSI Class AA, Booster Color: Yellow, Color Code: Yellow, Booster: WPBY Box 25, Conductor Size (tap - Mm): 23 - 30 SQ-MM, Installation Tool: WTY Tool, Cable Diameter Range (run): 0.893 - 1.25 IN, Conductor Type: Run: ACSR, AAC, Tap: ACSR, AAC, Copper, Conductor Size (run - Mm): 23 - 32 SQ-MM, Cable Diameter Range (tap): 0.923 - 1.2 IN
- Standard Package Quantity
- 5
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- WEJTAP
- Sub Class Code
- B32B60F
- Trade Name
- WEJTAP™
- Type
- Wejtap Connector
- UL Listed
- No
- Width
- 3.30 in
