Burndy WCY77
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

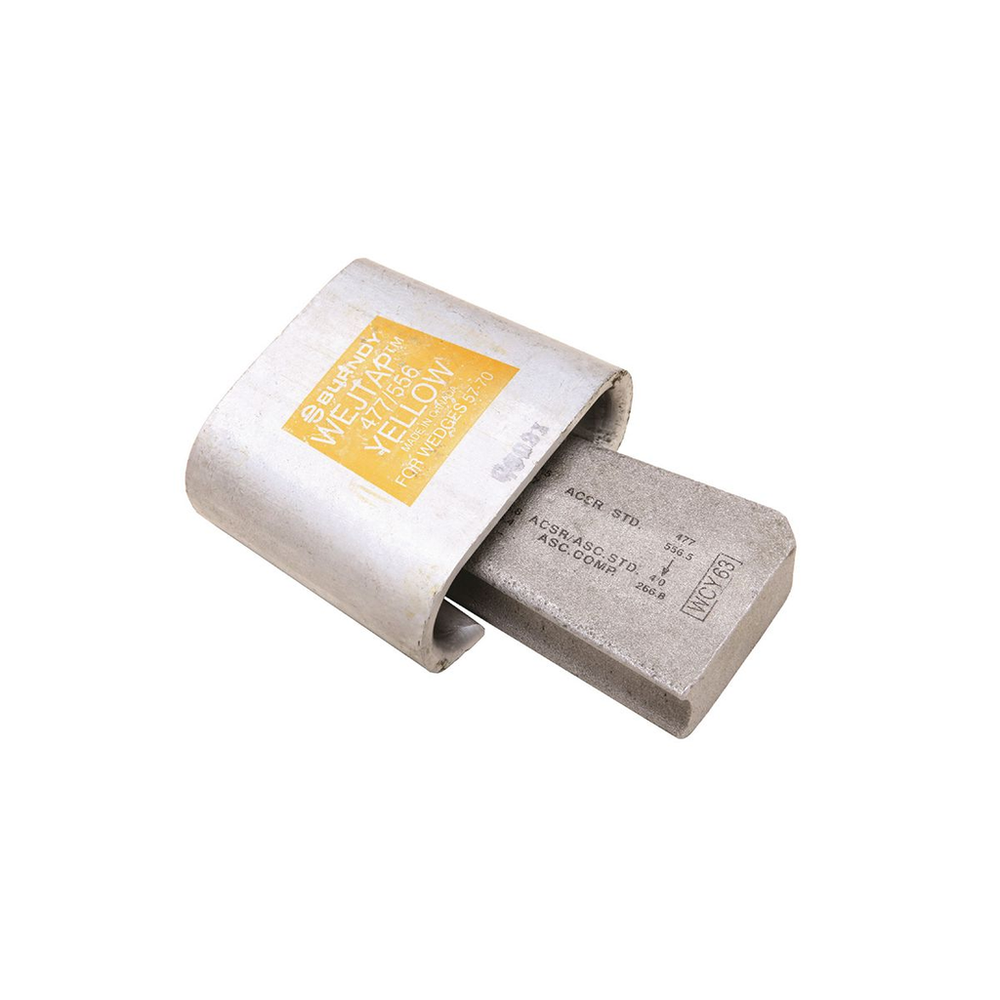

Wejtap Assembly , Installed With Yellow Booster, Sum of diameters: 1.829 (Max), 1.677 (Min).Wejtap Assembly, Installed With Yellow Booster, Sum of diameters: 1.829 (Max), 1.677 (Min)
Burndy WCY77 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For use in tap applications using large run and tap conductor sizes
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810875254
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810875255
- Certification Agency
- Proposition 65
- Class Code
- B32
- Conductor - ACSR Str Run
- 477.0 (30/7) Hen;556.5 (24/7) Parakeet;556.5 (26/7) Dove;556.5 (30/7) Eagle;605 (24/7) Peacock;605 (26/7) Squab;605 (30/19) Teal;636 (24/7) Rook;636 (26/7) Grosbeak;636 (30/19) Egret;666.6 (24/7) Flamingo;715.5 (54/7) Crow;715.5 (26/7) Starling;715.5 (30/19) Redwing;795 (54/7) Condor;795 (26/7) Drake;795 (30/19) Mallard
- Conductor - ACSR Str Run Range
- 477.0 (30/7) Hen-795 (30/19) Mallard
- Conductor - ACSR Str Tap
- 4/0 (6/1) Penquin;80 (8/1) Grouse;101.8 (12/7) Petrel;110.8 (12/7) Minorca;134.6 (12/7) Leghorn;159 (12/7) Guinea;176.9 (12/7) Dotterel;190.8 (12/7) Dorking;203.2 (16/9) Brahma;211.3 (12/7) Cochin;266.8 (18/1) Waxwing;266.8 (26/7) Owl;266.8 (26/7) Partridge;300.0 (26/7) Ostrich;336.4 (18/1) Merlin;336.4 (26/7) Linnet;336.4 (30/7) Oriole;397.5 (18/1) Chickadee;397.5 (24/7) Brant
- Conductor - ACSR Str Tap Range
- 4/0 (6/1) Penquin-397.5 (24/7) Brant
- Conductor - AL Str Run
- 556.5;600;636;650;700;715.5;750;795.5;800;874.5;900;954;1000
- Conductor - AL Str Run Range
- 556.5-1000
- Conductor - AL Str Tap
- 250;266.8;300;336.4;350;397.5;400;450
- Conductor - AL Str Tap Range
- 250-450
- Conductor Type
- ACSR C Str-Run;AL C Str-Run;ACSR C Str-Tap;AL C Str-Tap
- Connector Type
- Tap
- Country of Origin
- MX
- Description - Invoice
- Wejtap,1.133 D Max(Run),.750 D Max(TAP)
- Dimension - F Width Center to Center inch
- 3.5 in
- Dimension - G inch
- 1.9 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 7.68 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 5 EA
- Package - Gross Weight per Pack
- 10 lb.
- Package - GTIN - Package
- 30781810875255
- Package Height
- 4.88 in
- Package Length
- 12.63 in
- Package - Number of Sub Packs
- 5
- Package - Pack Description
- Package
- Package Quantity
- 5 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810875254
- Package - Total Units
- 5 EA
- Package Weight
- 10 lb.
- Package Width
- 6.38 in
- Product Type
- Wejtap
- Special Features
- Features: With Yellow Power Booster, ANSI Class AA, Color Code: Yellow, Booster Color: Yellow, Booster: WPBY Box 25, Conductor Size (tap - Mm): 15 - 19 SQ-MM, Installation Tool: WTRB, WTY Tool, Conductor Type: Run: ACSR, AAC, Tap: ACSR, AAC, Copper, Cable Diameter Range (run): 0.889 - 1.133 IN, Conductor Size (run - Mm): 23 - 29 SQ-MM, Cable Diameter Range (tap): 0.575 - 0.75 IN
- Standard Package Quantity
- 5
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- WEJTAP
- Sub Class Code
- B32B60F
- Trade Name
- WEJTAP™
- Type
- Wejtap Connector
- UL Listed
- No
- Width
- 7.68 in
